| CM1457-08CP | ||
|---|---|---|
|
|
||
|
||
| Product description : Praetorian III 4, 6, 8-Channel EMI Filter Array with ESD Protection | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Type | Low Pass |
|---|---|
| Attenuation Value | -35dB @ 800MHz ~ 2.7GHz |
| Resistance - Channel (Ohms) | 45 |
| Size / Dimension | 0.129" L x 0.041" W (3.27mm x 1.05mm) |
| Category | Filters |
| Number of Channels | 8 |
| Family | EMI/RFI Filters (LC, RC Networks) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Technology | LC (Pi) |
| Current | 15mA |

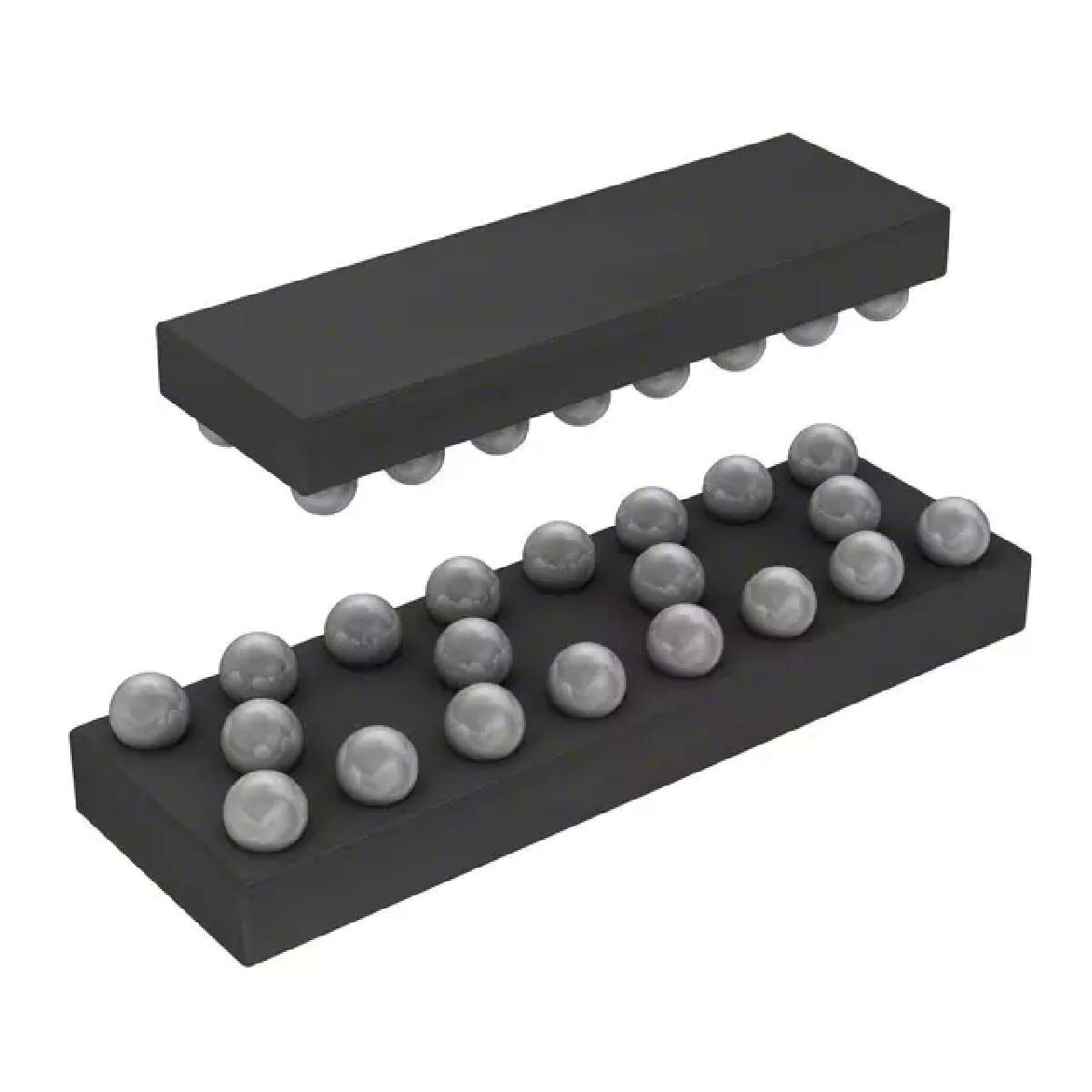

| Package / Case | 20-WFBGA, WLCSP |
| Values | L = 70nH (Total), C = 12.5pF (Total) |
| Height | 0.027" (0.69mm) |
| Part Status | Active |
| Manufacturer | ON Semiconductor |
| Filter Order | 5th |
| Applications | Data Lines for Mobile Devices |
| Center / Cutoff Frequency | 300MHz (Cutoff) |
| ESD Protection | Yes |
| Packaging | Tape & Reel (TR) |
