| EEE-FK1A102GP | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

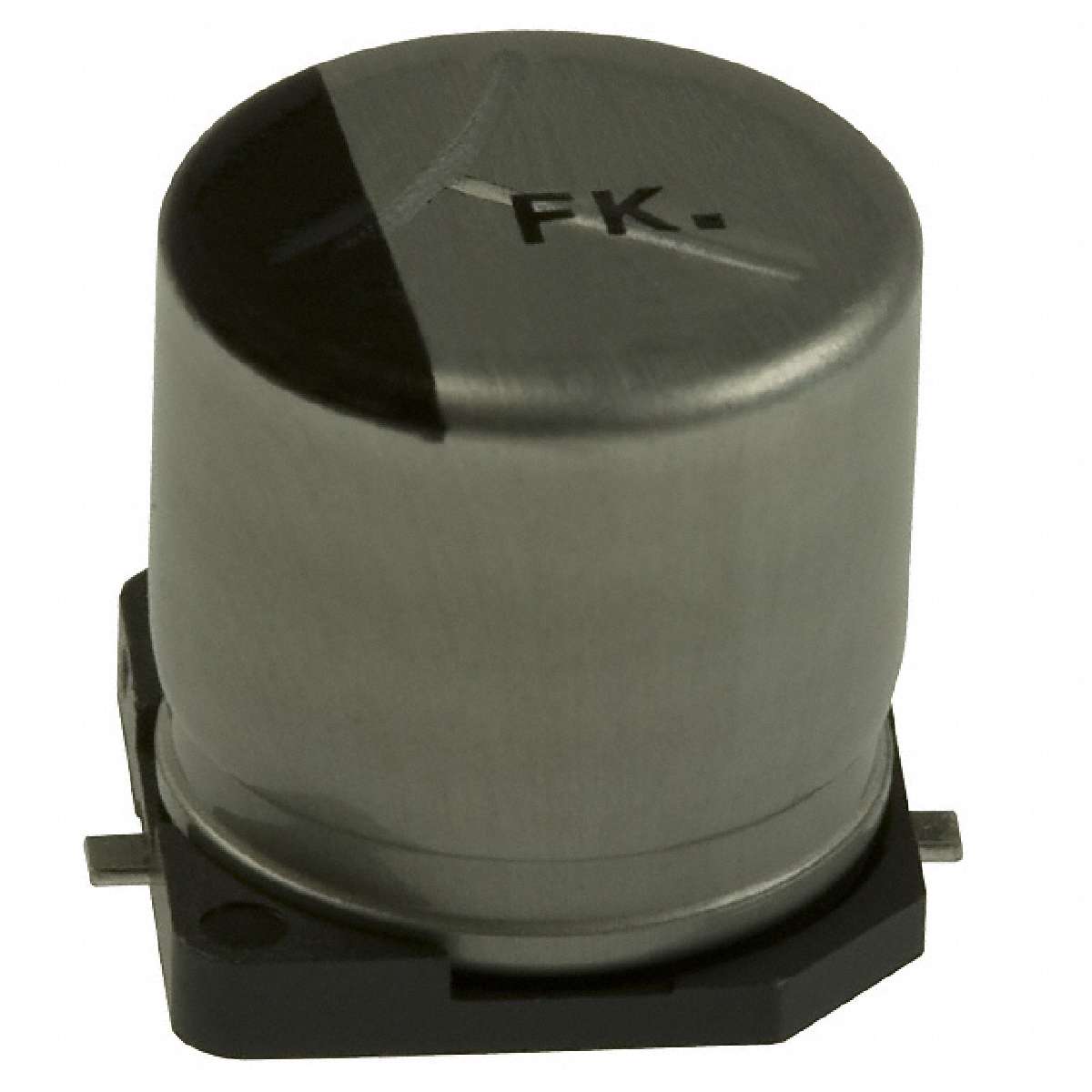

EEE-FK Series 10 V 1000 uF Ø10 x 10.2 mm SMT Aluminum Electrolytic Capacitor
|
||
| 标准包装：500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Radial, Can - SMD |
|---|---|
| Tolerance | ±20% |
| Capacitance | 1000µF |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Ripple Current | 637.5mA @ 120Hz |
| Manufacturer | Panasonic Electronic Components |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| ECCN | EAR99 |
| Impedance | 80 mOhm |
| Voltage Rating | 10V |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Series | Automotive, AEC-Q200, FK |
| Applications | General Purpose |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Packaging | Digi-Reel® |
