| EEE-1HA4R7SR | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

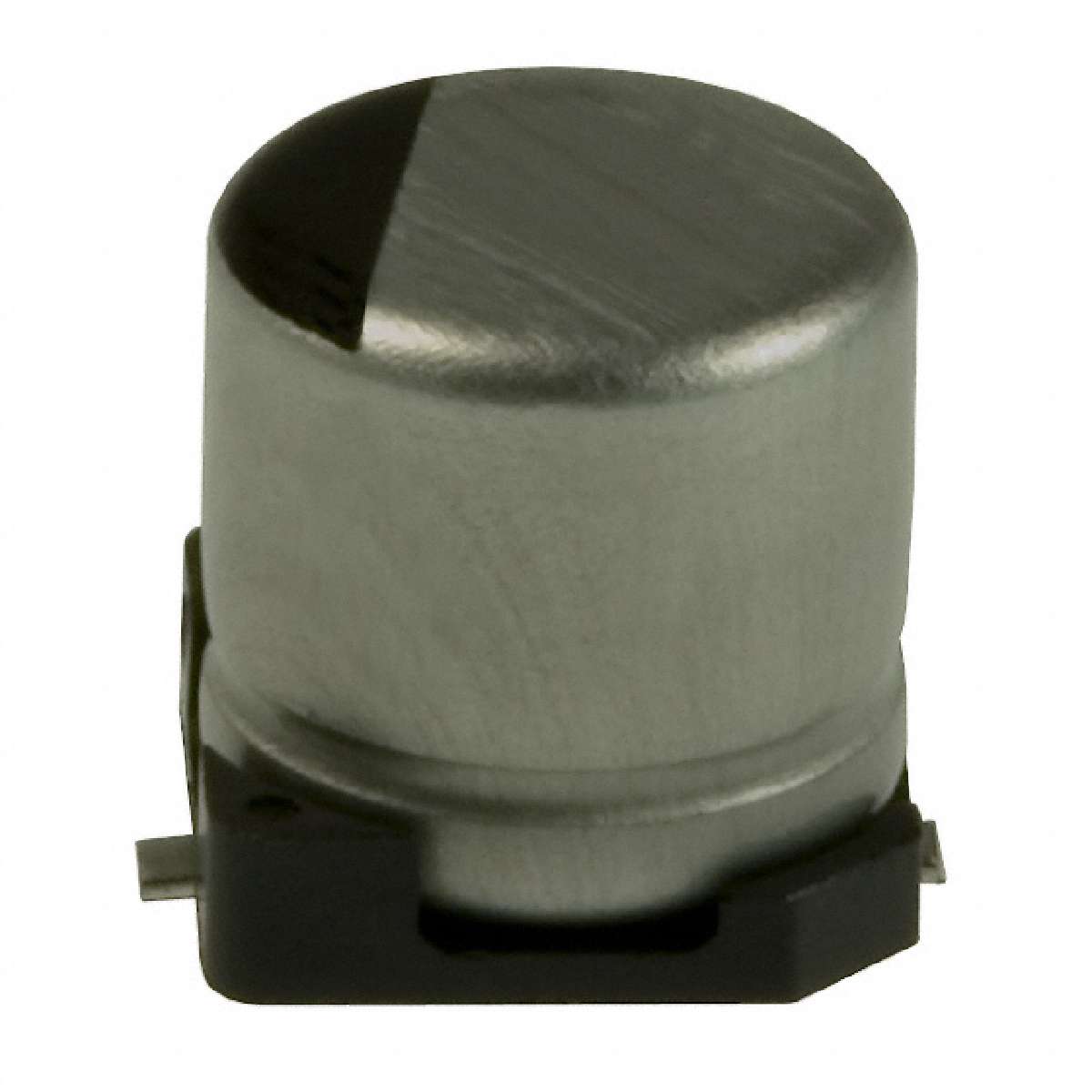

EEE-S Series 50 V 4.7 uF Ø 5 x 5.4 mm 85 °C SMT V-Chip Aluminum Electrolytic
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 50V |
|---|---|
| Product Training Modules | LED Lighting Components |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Applications | Automotive |
| Packaging | Digi-Reel® |
| Capacitance | 4.7µF |
| Ripple Current | 23mA |
| Series | S |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| RoHS | Lead free / RoHS Compliant |
| Tolerance | ±20% |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Catalog Drawings | VS Series Side_C VS Series Bottom_C |
| Online Catalog | VS Series |
| Family | Aluminum Capacitors |
| Operating Temperature | -40°C ~ 85°C |
| ECCN | EAR99 |
