| AM3505AZER | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

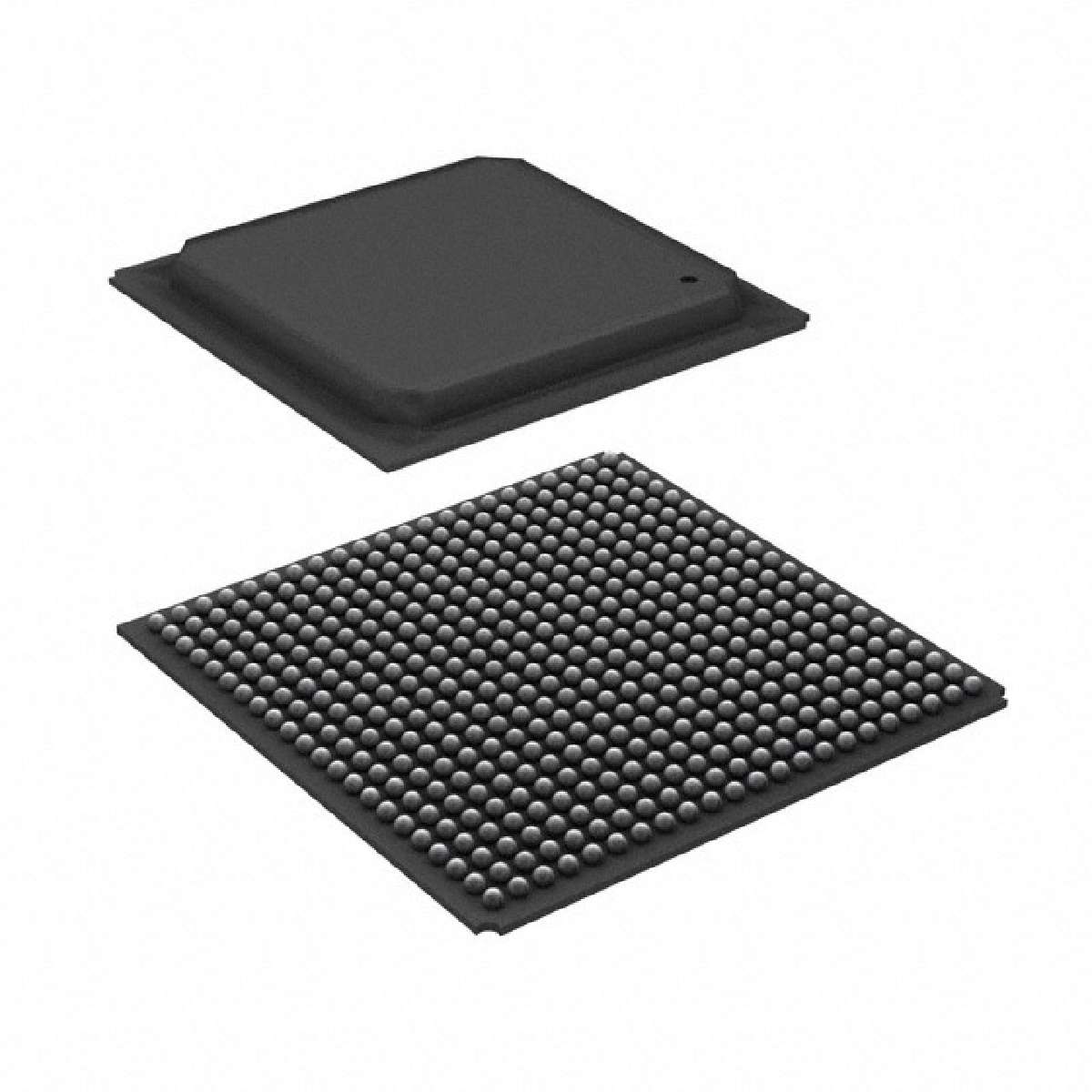

BGA 484/0 TO 90°/Sitara ARM Microprocessor (MPU)
|
||
| 标准包装：60 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Core Processor | ARM® Cortex®-A8 |
|---|---|
| Ethernet | 10/100 Mbps (1) |
| Supplier Device Package | 484-BGA (23x23) |
| Graphics Acceleration | No |
| Part Status | Active |
| Speed | 600MHz |
| Manufacturer | Texas Instruments |
| RAM Controllers | LPDDR, DDR2 |
| Family | Embedded - Microprocessors |
| Additional Interfaces | CAN, HDQ/1-Wire, I²C, McBSP, McSPI, MMC/SD/SDIO, UART |
| Package / Case | 484-BBGA Exposed Pad |
| Display & Interface Controllers | LCD |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Voltage - I/O | 1.8V, 3.3V |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| Category | Integrated Circuits (ICs) |
| USB | USB 2.0 (3), USB 2.0 + PHY (1) |
| Series | Sitara™ |
| Operating Temperature | 0°C ~ 90°C (TJ) |
| Packaging | Tray |
