| FR1112H-TR | ||
|---|---|---|
|
|
||
|
||

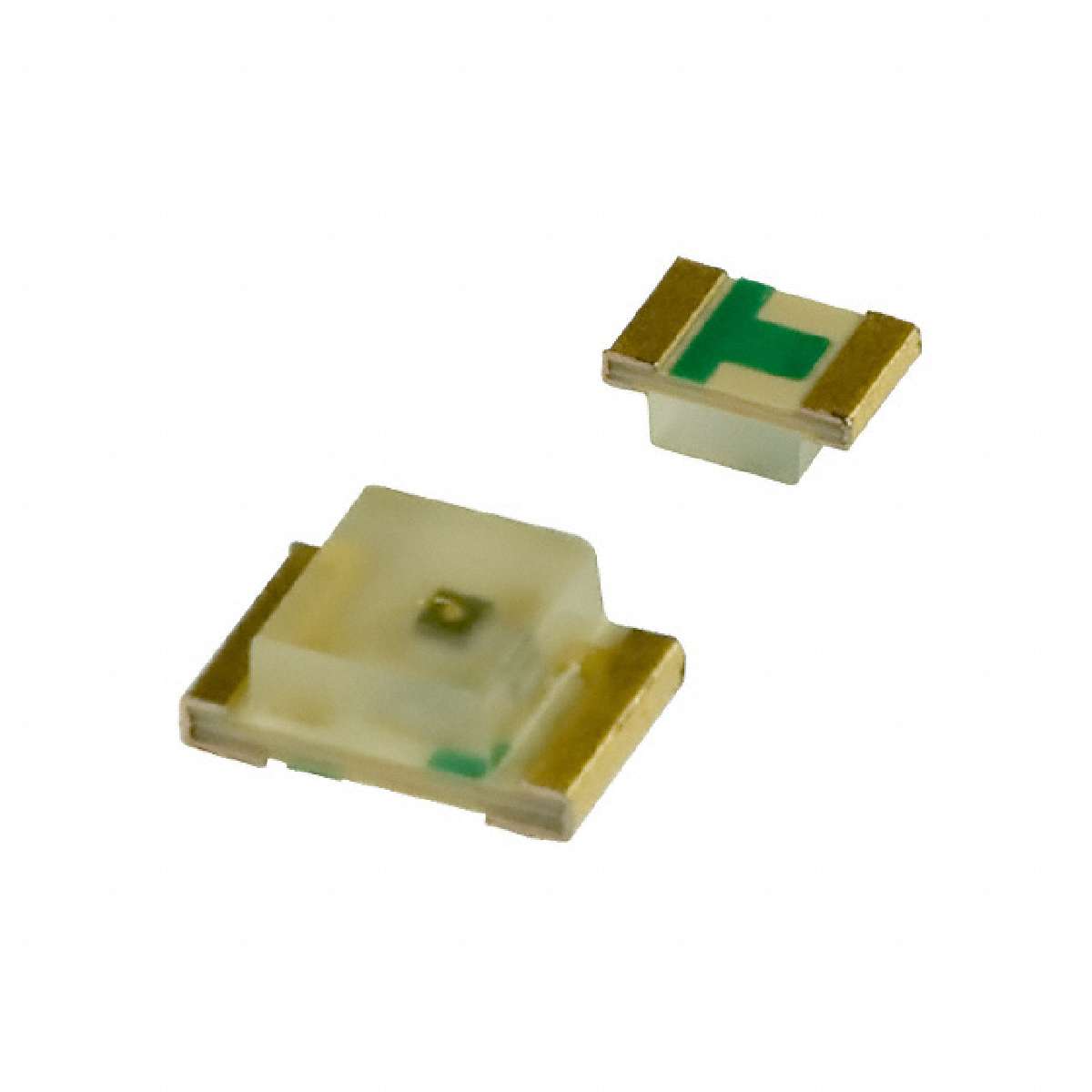

| Product description : 1112H Series Red 2 x 1.25 x 0.8 mm 148/145° 50 mcd Diffused 1.9 V SMT LED | ||
| SPQ：4000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Lens Type | Diffused, White |
|---|---|
| Viewing Angle | 148°, 145° |
| Catalog Drawings | 1112H-TR Series Top 1112H-TR Series Side |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Current - Test | 20mA |
| Wavelength - Dominant | 626nm |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount |
| Packaging | Digi-Reel® |
| ECCN | EAR99 |
| Package / Case | 0805 (2012 Metric) |
| Height | 0.90mm |
| Color | Red |
| Lens Style/Size | Rectangle with Flat Top, 1.3mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Series | 1112H |
| Wavelength - Peak | 635nm |
| Millicandela Rating | 50mcd |
| RoHS | Lead free / RoHS Compliant |
