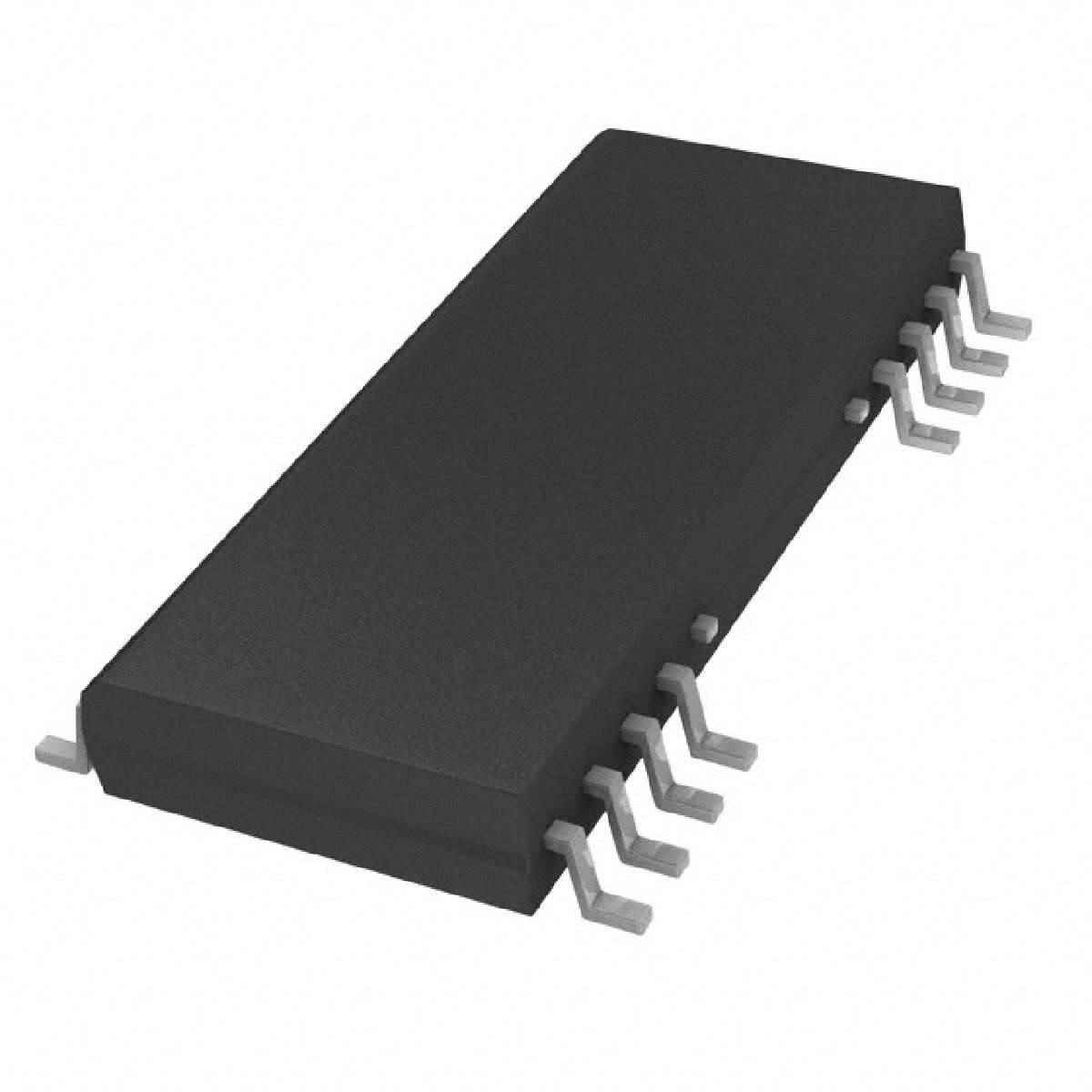

| MAX3535ECWI+ | ||
|---|---|---|
|
|
||
|
||
| Product description : +3V to +5V, 2500VRMS Isolated RS-485/RS-422 Transceivers with ±15kV ESD Protect | ||
| SPQ：1 | ||
| Datasheet : |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Output Voltage: | 0.4 V to 3.7 V |
|---|---|
| Packaging: | Tube |
| Function: | Transceiver |
| Pd - Power Dissipation: | 750 mW |
| Height: | 2.35 mm (Max) |
| Mounting Style: | SMD/SMT |
| Length: | 18.1 mm (Max) |
| Data Rate: | 1 Mb/s |
| Series: | MAX3535E |
| Brand: | Maxim Integrated |
| RoHS: | Details |
| Product Category: | RS-422/RS-485 Interface IC |
| Maximum Operating Temperature: | + 70 C |
| ECCN | EAR99 |
| Width: | 7.6 mm (Max) |
| Duplex: | Full Duplex |
| Minimum Operating Temperature: | 0 C |
| Package / Case: | SOIC-28 |
| Unit Weight: | 0.078125 oz |
| Number of Receivers: | 1 Receiver |
| Manufacturer: | Maxim Integrated |
| Operating Supply Voltage: | 3 V to 5.5 V |
| Factory Pack Quantity: | 25 |
| Part # Aliases: | MAX3535E |
| Operating Supply Current: | 5.9 mA |
| Number of Drivers: | 1 Driver |
| Input Voltage: | 0.8 V to 2 V |
| Datasheet： |
|---|
You can comment after logging in.
Availability2Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 25 | Update On 2025-06-18 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | -- |
