| 39613150000 | ||
|---|---|---|
|
|
||
|
||

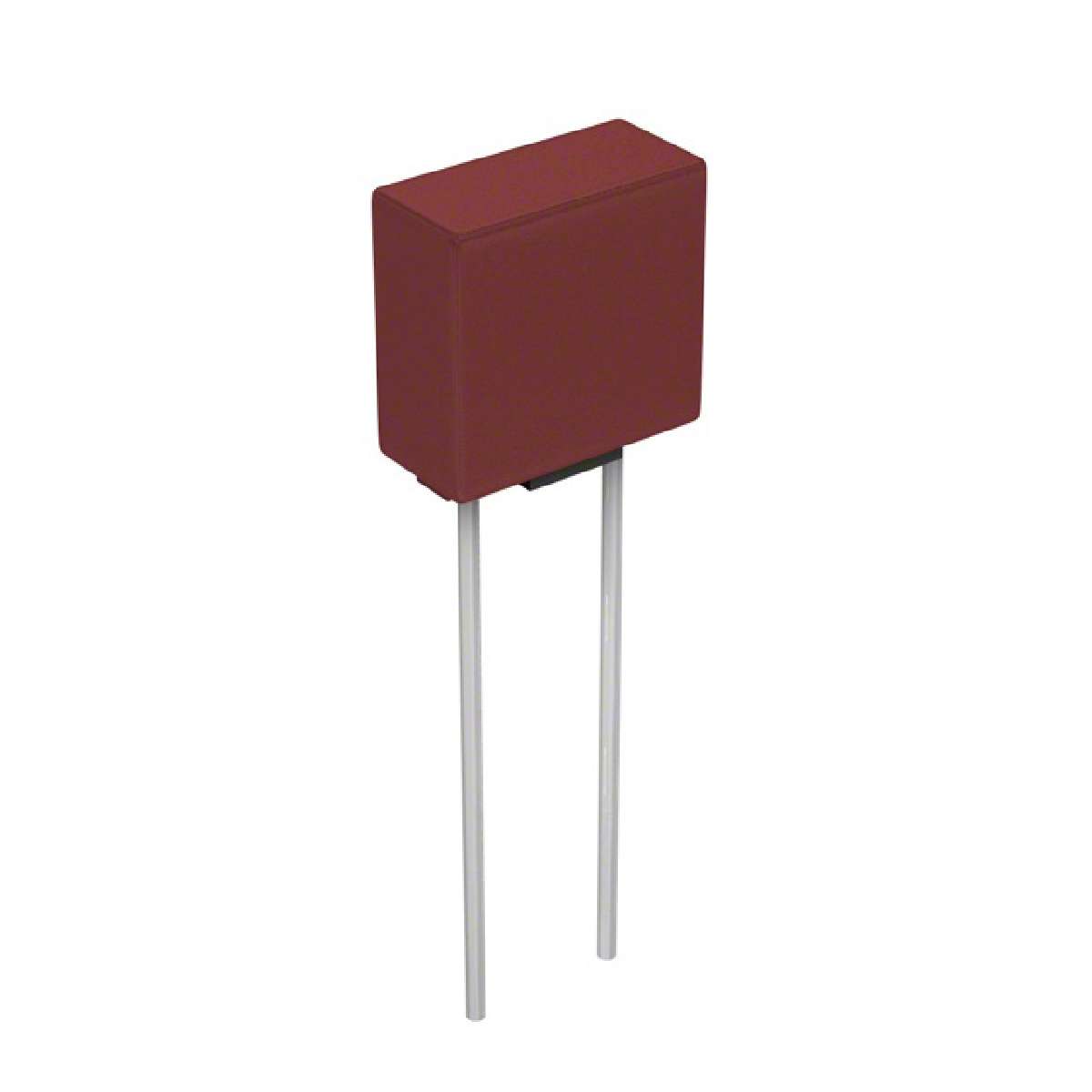

| Product description : Fuse: fuse; time-lag; 3.15A; 125VAC; TE5 | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Package / Case | Radial, Box |
|---|---|
| Approvals | cUL, PSE/JET, UL |
| Part Status | Active |
| Response Time | Slow |
| DC Cold Resistance | 0.0216 Ohm |
| Series | TE5® 396 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Tape & Box (TB) |
| ECCN | EAR99 |
| Voltage Rating - AC | 125V |
| Size / Dimension | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Category | Circuit Protection |
| Manufacturer | Littelfuse Inc. |
| Family | Fuses |
| Melting I²t | 26.29 |
| Breaking Capacity @ Rated Voltage | 100A |
| Current Rating | 3.15A |
