| S2EB-24V | ||
|---|---|---|
|
|
||
|
||

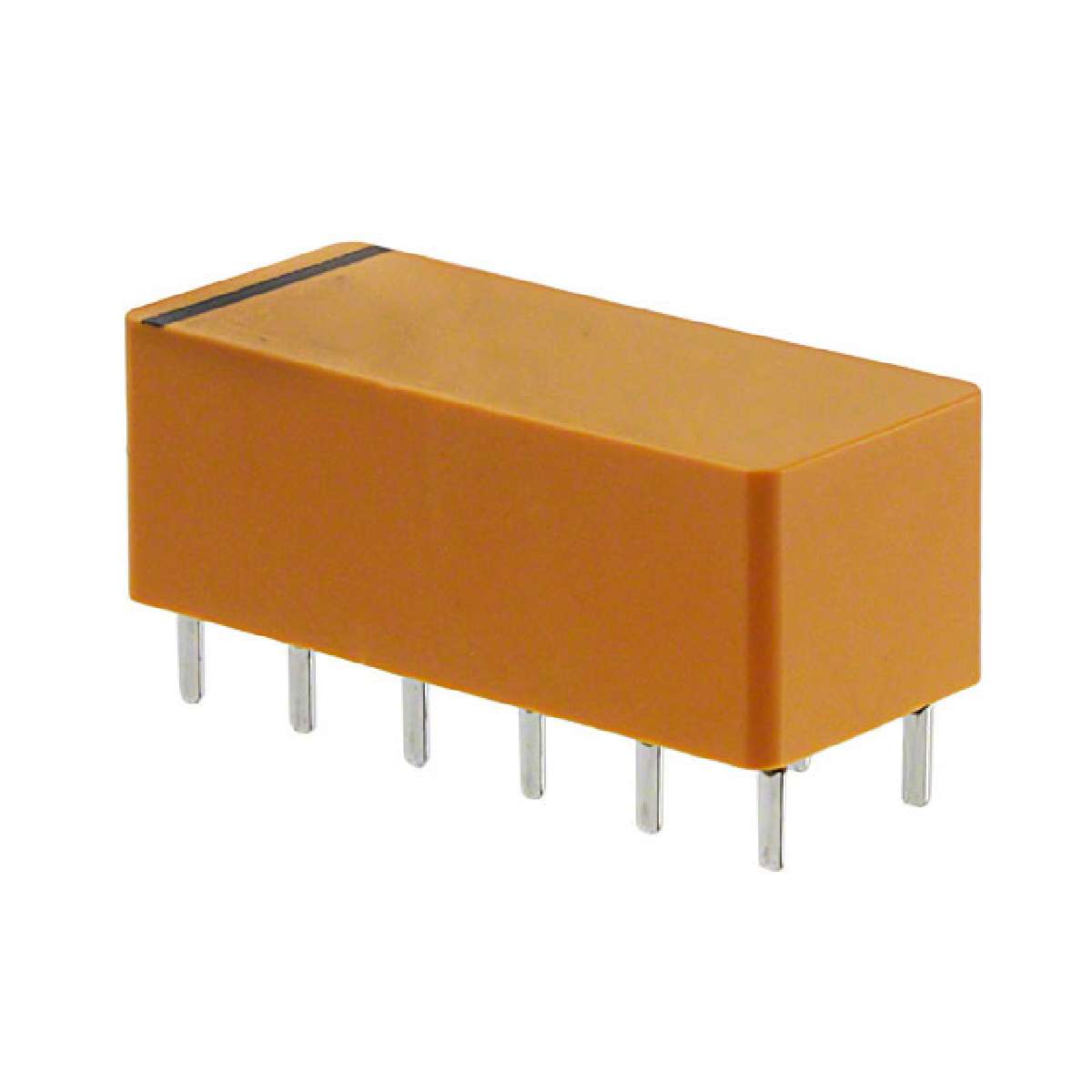

| Product description : S Series 4 A 4PST 24 VDC Through Hole Polarized Single Side Stable Power Relay | ||
| SPQ：50 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Contact Form | 4PST (2 Form A, 2 Form B) |
|---|---|
| Termination Style | PC Pin |
| Coil Type | Non Latching |
| Switching Voltage | 250VAC, 48VDC - Max |
| Coil Voltage | 24VDC |
| Contact Rating (Current) | 4A |
| Catalog Drawings | S Series PCB S Series PCB Footprint S2EB Series Circuit |
| Operate Time | 15ms |
| Coil Current | 8.4mA |
| Contact Material | Silver Alloy, Cadmium Free |
| Relay Type | General Purpose |
| Family | Power Relays, Over 2 Amps |
| RoHS | Lead free / RoHS Compliant |
| Coil Power | 202 mW |
| Turn On Voltage (Max) | 16.8 VDC |
| Other Related Documents | Standards Chart How to Read Date Codes |
| Coil Resistance | 2.85 kOhms |
| Mounting Type | Through Hole |
| Packaging | Tube |
| Turn Off Voltage (Min) | 2.4 VDC |
| Features | Sealed - Amber |
| Release Time | 10ms |
| Online Catalog | S Series |
| Series | S |
| Operating Temperature | -55°C ~ 65°C |
You can comment after logging in.
Availability4Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 298 | Update On 2025-06-24 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 50/1 | |
| Location | -- | |
| DateCode | 2446 |
Supplier Code:SP1028
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$20.7514
￥172.35382042265988
See more prices
| 1+ | $20.7514 |
|---|---|
| 5+ | $14.09725 |
| 10+ | $13.26645 |
| 30+ | $12.71155 |
| 50+ | $12.59995 |
| 60+ | $12.5736 |
| 100+ | $12.5178 |
| 200+ | $12.47595 |
| stock | 44 | Update On 2024-12-20 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 50/1 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$18.7719
￥155.9127904931032
| 6+ | $18.7719 |
|---|---|
| 25+ | $16.96599 |
| 100+ | $15.90951 |
| stock | 833 | Update On 2024-12-20 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 50/6 | |
| Location | -- | |
| DateCode | -- |
