| SFW4R-2STE1LF | ||
|---|---|---|
|
|
||
|
||

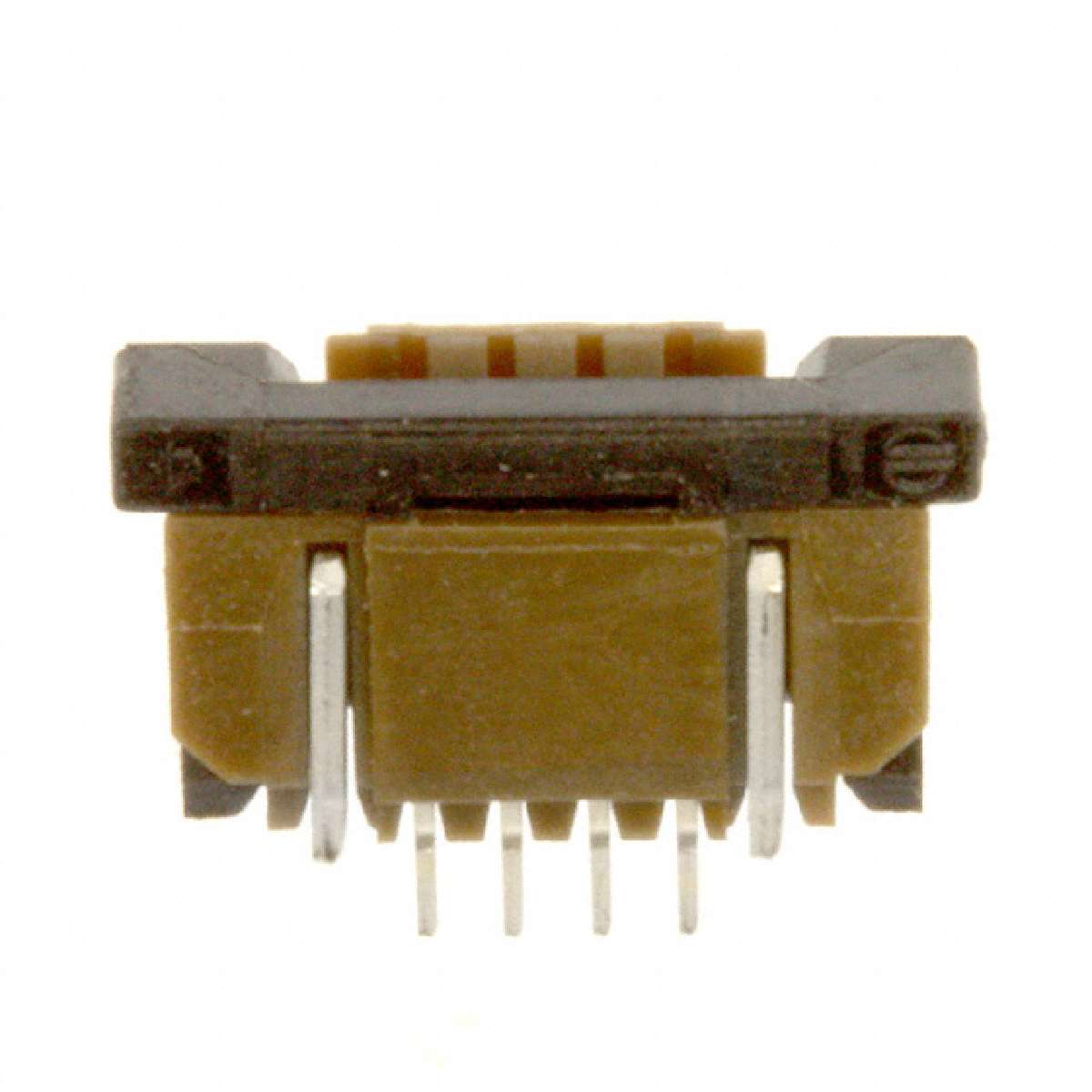

| Product description : FCI SFW 系列 1mm 节距 1 行 4 路 直角 包容式 FPC 连接器, 锡 电镀触点 ZIF 顶部触点 | ||
| SPQ：1 | ||
| Datasheet : |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 100V |
|---|---|
| Contact Finish | Tin |
| FFC, FCB Thickness | 0.30mm, 0.33mm |
| Mounting Type | Surface Mount, Right Angle |
| Locking Feature | Slide Lock |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Height Above Board | 0.106" (2.70mm) |
| Flat Flex Type | FFC, FPC |
| Catalog Drawings | SFW Side Entry 4 Position |
| Contact Material | Phosphor Bronze |
| Series | SFW-R |
| Family | FFC, FPC (Flat Flexible) Connectors |
| Current Rating | 1A |
| RoHS | Lead free / RoHS Compliant |
| PCN Assembly/Origin | FFC/FPC series 20/Jul/2011 |
| Product Training Modules | Flat Flex Connector Overview |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Connector/Contact Type | Contacts, Top |
| Material Flammability Rating | UL94 V-0 |
| Packaging | Cut Tape (CT) |
| Termination | Solder |
| Cable End Type | Straight, Tapered |
| Features | Zero Insertion Force (ZIF) |
| Online Catalog | SFW and SFW-R Series |
| Number of Positions | 4 |
| Operating Temperature | -55°C ~ 105°C |
| Pitch | 0.039" (1.00mm) |
| Datasheet： |
|---|
You can comment after logging in.
Availability2Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 15978 | Update On 2025-05-27 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | -- |
