| 8-328999-1 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

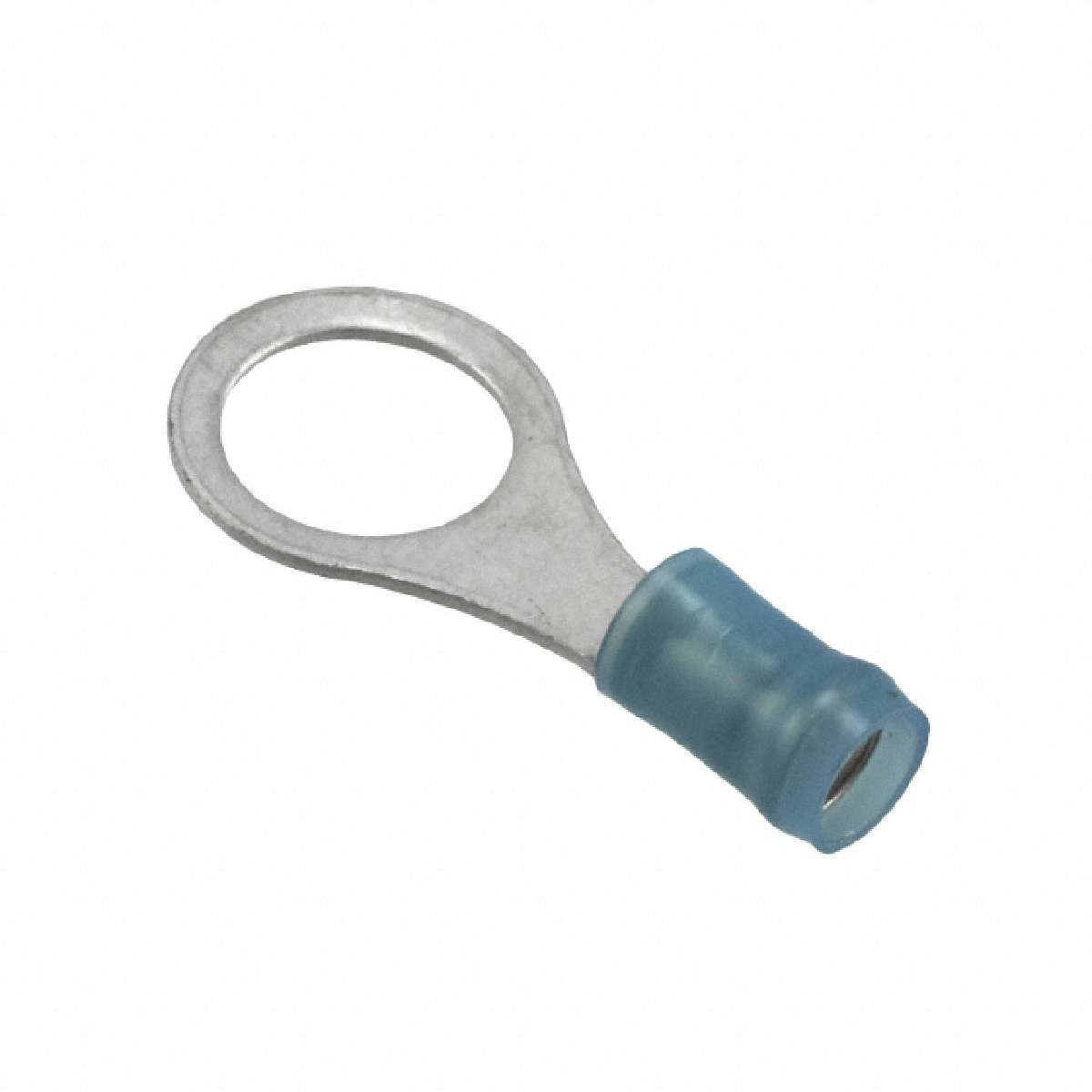

PIDG 16-14 AWG Straight Closed Barrel Insulation Support Ring Tongue Terminal
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Material - Insulation | Polyamide (PA), Nylon |
|---|---|
| Thickness | 0.031" (0.79mm) |
| Mounting Type | Free Hanging (In-Line) |
| Tooling | A9991-ND - DIESET SPLICE TERMINALS A9811-ND - TOOL CRIMP INSUL TERM W/DIE SET A27992-ND - TETRA-CRIMP HT ASSY A27982-ND - TOOL HAND CRIMP PIDG 14-16 AWG A120068-ND - DIE SET FOR CRIMP CERTI-LOK 1-47387-0-ND - TOOL HEAD CRIMP 16-14AWG PIDG 314269-1-ND - P |
| Terminal Type | Circular |
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Material | Copper |
| Insulation | Insulated |
| Family | Terminals - Ring Connectors |
| 3D Model | 8-328999-1.pdf |
| ECCN | EAR99 |
| Contact Finish | Tin |
| Wire Gauge | 14-16 AWG |
| Termination | Crimp |
| Standard Package | 1,000 |
| Stud/Tab Size | 3/8 Stud |
| Color | Blue |
| Insulation Diameter | 0.115" ~ 0.170" (2.92mm ~ 4.32mm) |
| Length - Overall | 1.218" (30.94mm) |
| Series | PIDG |
| RoHS Information | 8-328999-1 Statement of Compliance RoHS 2 Statement |
| Width - Outer Edges | 0.250" (6.35mm) |
