78HF01GWRT
78HF01GWRT
  • ACTIVE
  • EAR99

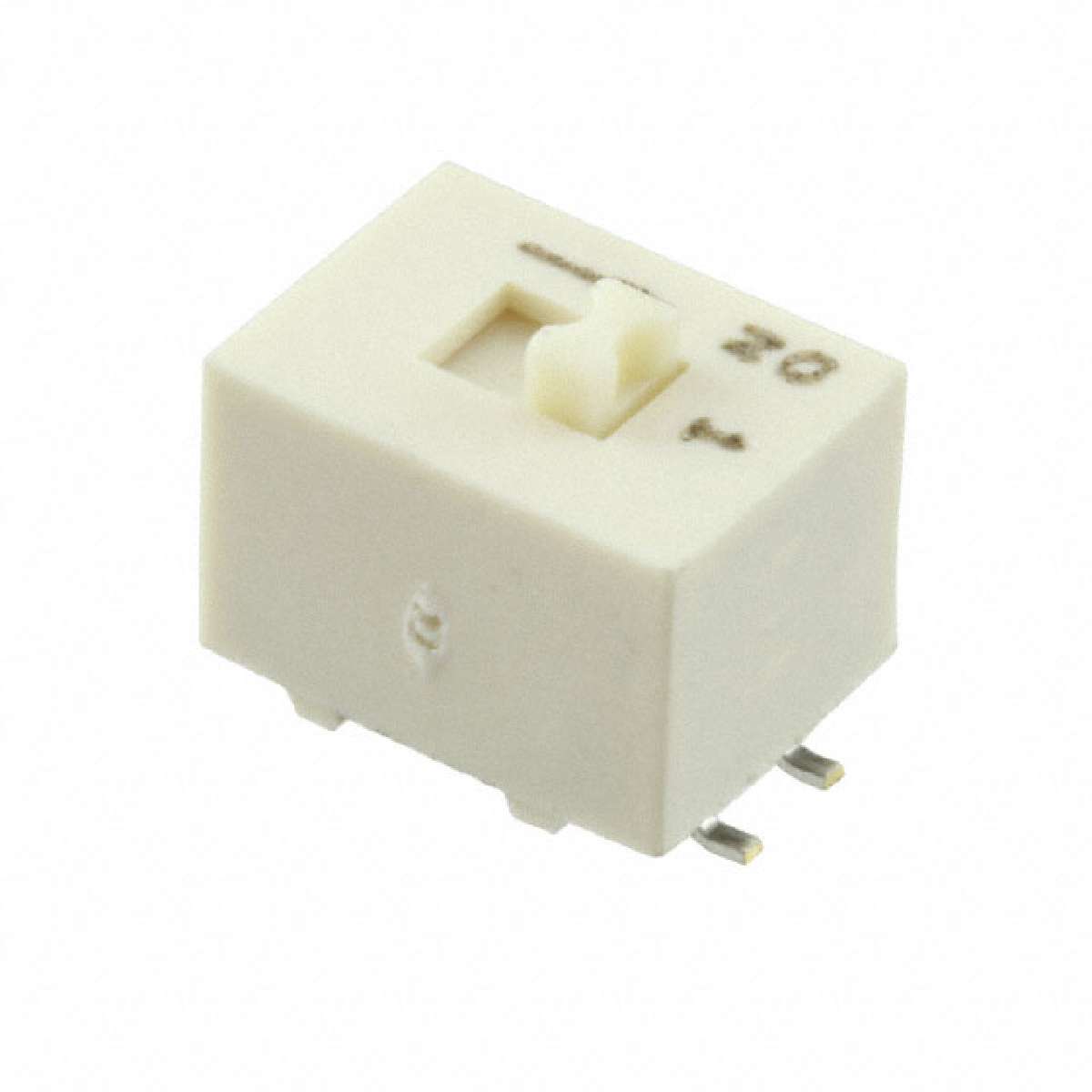

Product description : 78H Series Top Actuated DPST 1 Position Surface Mount DIP Switch
SPQ：500
Datasheet :
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews

Voltage Rating 30VDC
Termination Style Gull Wing
Electrical Life 2,000 Cycles
Mounting Type Surface Mount
Circuit DPST
Standard Package   500
Contact Material Copper Alloy
Length 0.280" (7.11mm)
Number of Positions 1
Family DIP Switches
Current Rating 150mA
ECCN EAR99
Contact Finish Gold
Body Material Thermoplastic
Washable No
Height Above Board 0.327" (8.30mm)
Actuator Type Slide (Standard)
Packaging   Tape & Reel (TR)
Actuator Level Raised
Mechanical Life 2,000 Cycles
Series 78H
Operating Temperature -40°C ~ 85°C
Pitch 0.100" (2.54mm), Full
Datasheet：
