| ARJ22A12 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

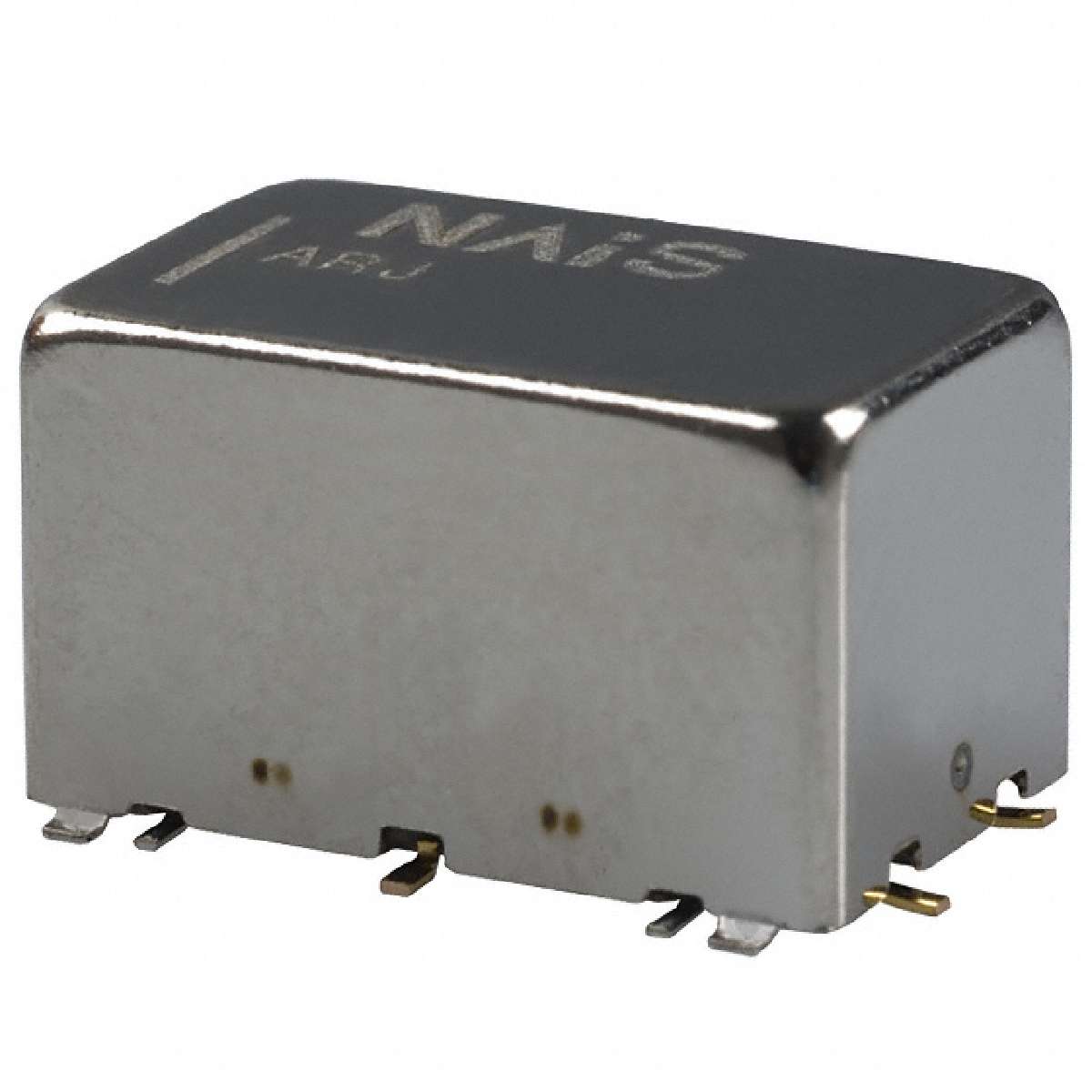

ARJ Series High Frequency 0.3 A DPDT 12 VDC Surface Mount Signal Relay
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Coil Type: | Dual Coil Latching |
|---|---|
| Coil Current: | 12.5 mA |
| Contact Rating: | 300 mA |
| Manufacturer: | Panasonic |
| Contact Form: | DPDT (2 Form C) |
| Brand: | Panasonic Industrial Devices |
| VSWR: | 1.25 |
| Impedance: | 50 Ohms |
| Contact Material: | Gold (Au) Plating |
| Isolation: | 35 dB |
| Insertion Loss: | 0.5 dB |
| ECCN | EAR99 |
| Coil Voltage: | 12 VDC |
| Packaging: | Tube |
| Contact Termination: | Solder Terminal |
| Frequency: | 5 GHz |
| Factory Pack Quantity: | 50 |
| Coil Resistance: | 960 Ohms |
| RoHS: | Details |
| Power Consumption: | 150 mW |
| Product Category: | High Frequency / RF Relays |
| Maximum Switching Current: | 300 mA |
| Contact Current Rating: | 300 mA |
