| AYPG1211F-TR | ||
|---|---|---|
|
|
||
|
||

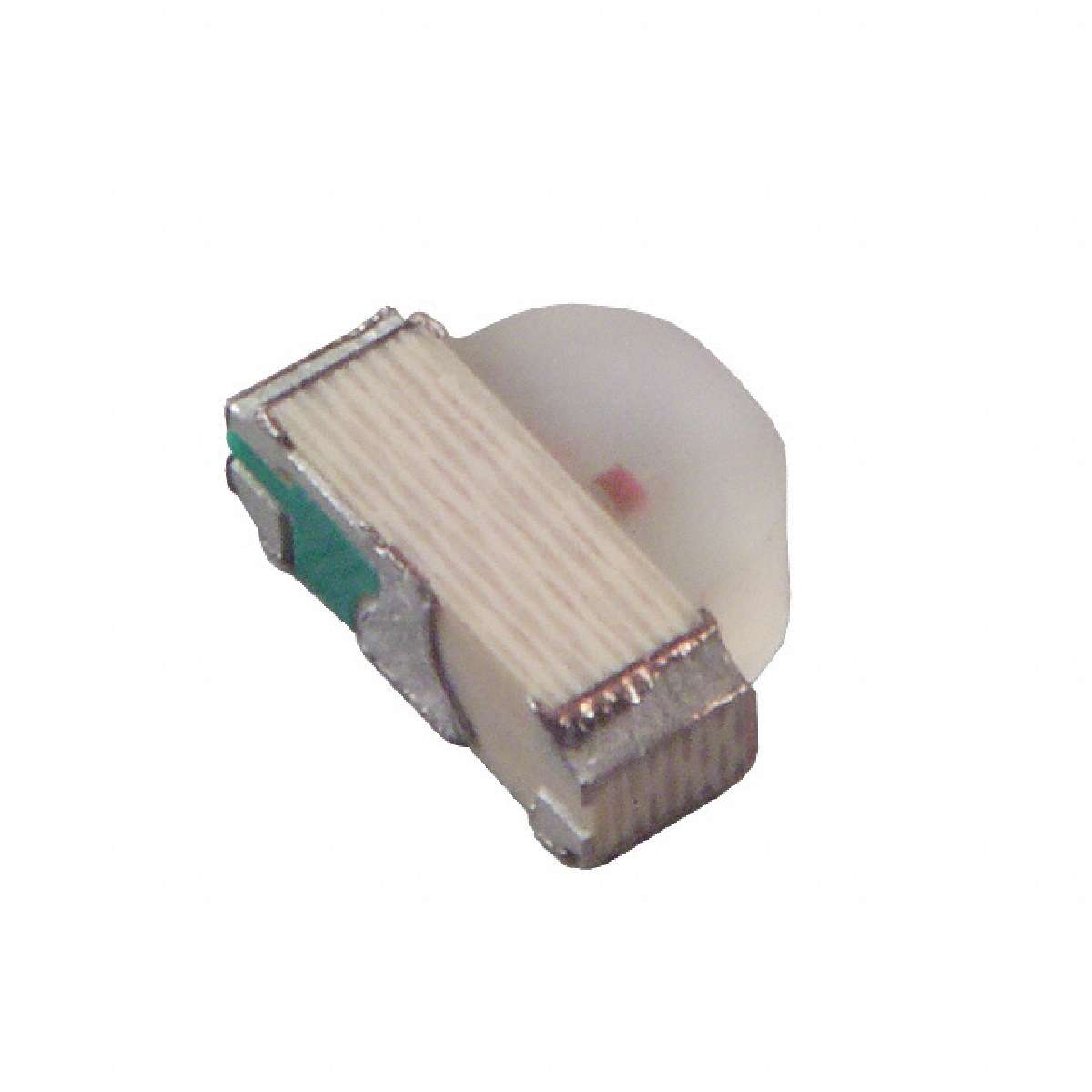

| Product description : Yellow 2 mm 150/140° 3 mcd White Diffused 2.2 V Right Angle LED Surface Mount | ||
| SPQ：3000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Package / Case | 2-SMD, No Lead |
|---|---|
| Color | Green, Yellow |
| Part Status | Active |
| Manufacturer | Stanley Electric Co |
| Lens Color | White |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2.2V Yellow |
| Series | 1211F |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 5.2mcd Green, 3mcd Yellow |
| ECCN | EAR99 |
| Viewing Angle | 150°, 140° Green, 150°, 140° Yellow |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Category | Optoelectronics |
| Lens Style/Size | Rectangle with Domed Top, 2.00mm x 1.00mm |
| Wavelength - Dominant | 567nm Green, 590nm Yellow |
| Current - Test | 20mA Green, 20mA Yellow |
| Wavelength - Peak | 560nm Green, 580nm Yellow |
| Height (Max) | 1.15mm |
| Lens Transparency | Diffused |
| Packaging | Tape & Reel (TR) |
