| 7010.9830.57 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

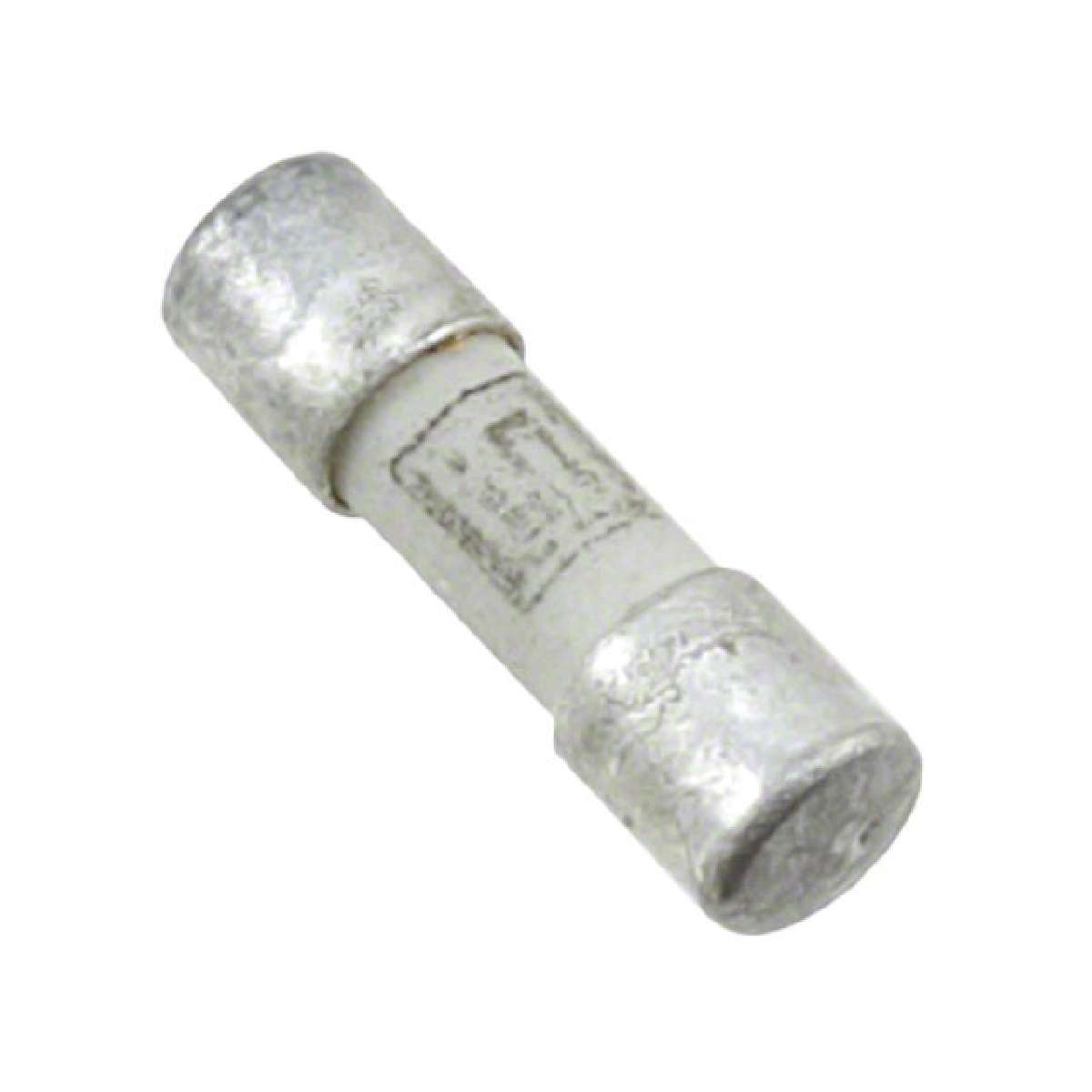

FUSE CERAMIC 2A 125VAC/VDC
|
||
| 标准包装：1500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Cartridge, Non-Standard |
|---|---|
| Voltage Rating - AC | 125V |
| Approvals | CSA, cULus |
| Packaging | Tape & Reel (TR) |
| Response Time | Fast |
| Family | Fuses |
| RoHS Information | RoHS, Fuse Products |
| Melting I²t | 0.72 |
| Breaking Capacity @ Rated Voltage | 300A |
| ECCN | ECL99 |
| Standard Package | 1,500 |
| Voltage Rating - DC | 125V |
| Size / Dimension | 0.079" Dia x 0.276" L (2.00mm x 7.00mm) |
| Fuse Type | Cartridge, Ceramic |
| Series | 172876 |
| Mounting Type | Holder |
| Operating Temperature | -55°C ~ 125°C |
| 3D Model | 7010-9830-57.igs 7010-9830-57.stp 7010-9830-57.dxf |
| Current Rating | 2A |
