| ECH-U1H102JX5 | ||
|---|---|---|
|
|
||
|
||

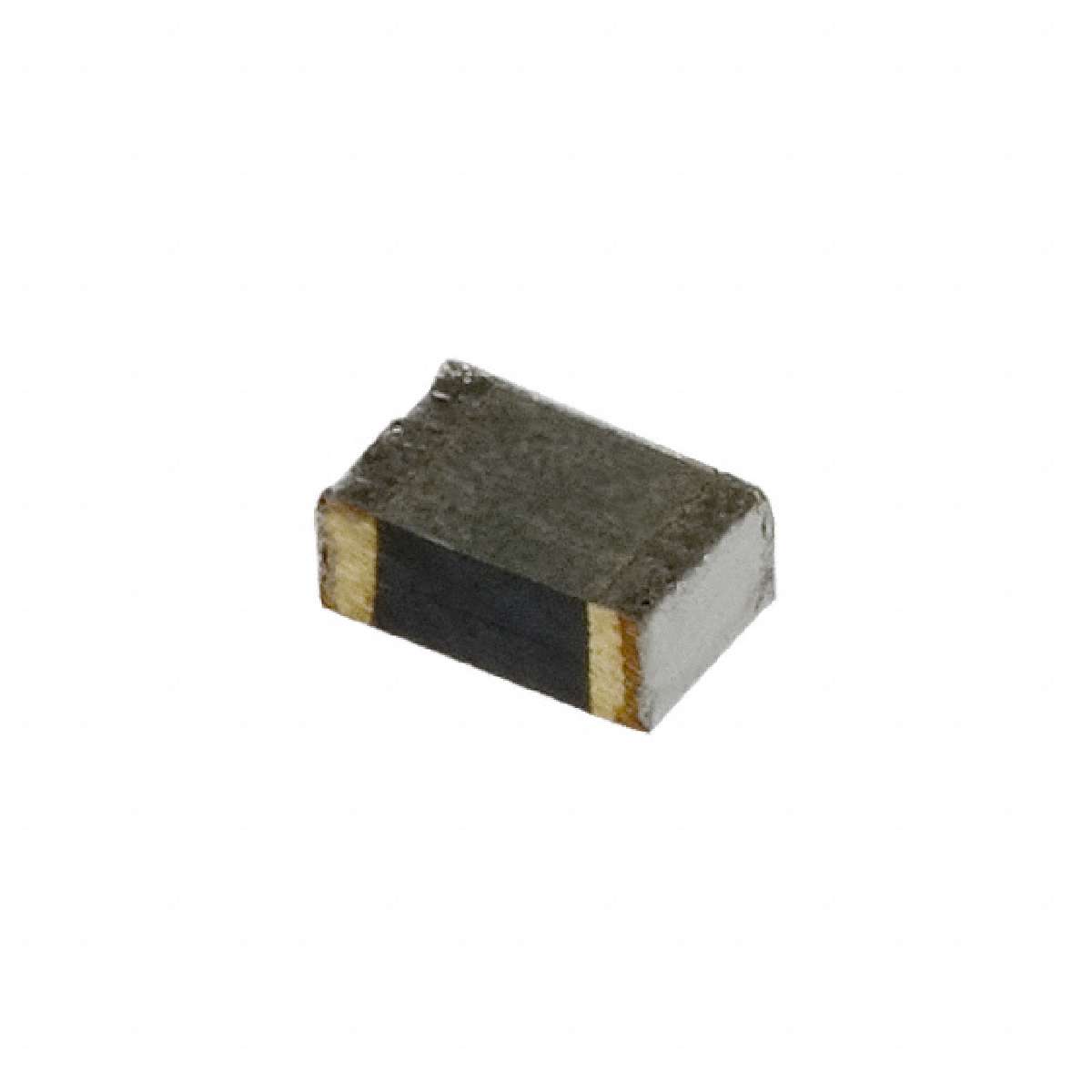

| Product description : ECHU(X) Series 50 V 0.001 uF ±5 % Stacked Metallized PPS Film Chip Capacitor | ||
| SPQ：3000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Capacitance | 1000pF |
|---|---|
| Tolerance | ±5% |
| Voltage Rating - DC | 50V |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Category | Capacitors |
| Height - Seated (Max) | 0.043" (1.10mm) |
| Family | Film Capacitors |
| Mounting Type | Surface Mount |
| Packaging | Cut Tape (CT) |
| Package / Case | 0805 (2012 Metric) |
| Termination | Solder Pads |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked |
| Part Status | Active |
| Manufacturer | Panasonic Electronic Components |
| Series | ECH-U(X) |
| Applications | General Purpose |
| Operating Temperature | -55°C ~ 125°C |
| ECCN | EAR99 |
