| ALA2PF24 | ||
|---|---|---|
|
|
||
|
||

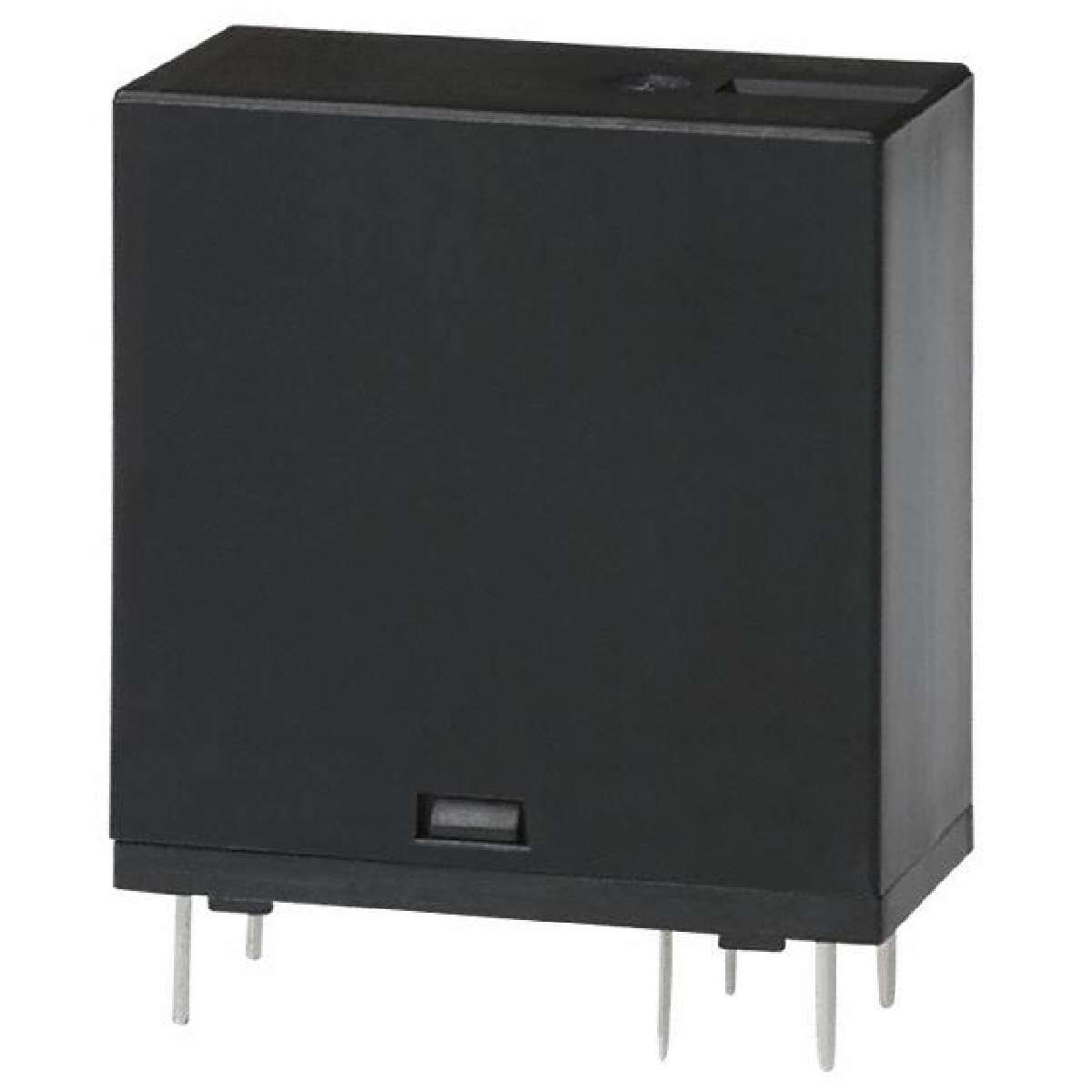

| Product description : RELAY GEN PURPOSE DPST 5A 24V | ||
| SPQ：100 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Contact Form | DPST (2 Form A) |
|---|---|
| Turn Off Voltage (Min) | 1.2 VDC |
| Operate Time | 15ms |
| Coil Type | Non Latching |
| Part Status | Active |
| Coil Current | 22.1mA |
| Release Time | 15ms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Series | ALA |
| Coil Voltage | 24VDC |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 70°C |
| ECCN | EAR99 |
| Coil Power | 530 mW |
| Termination Style | PC Pin |
| Turn On Voltage (Max) | 18 VDC |
| Features | Sealed - Flux Protection |
| Category | Relays |
| Manufacturer | Panasonic Electric Works |
| Switching Voltage | 277VAC - Max |
| Relay Type | General Purpose |
| Coil Resistance | 1.09 kOhms |
| Family | Power Relays, Over 2 Amps |
| Contact Rating (Current) | 5A |
| Packaging | Bulk |
