| 657-15ABPEN | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

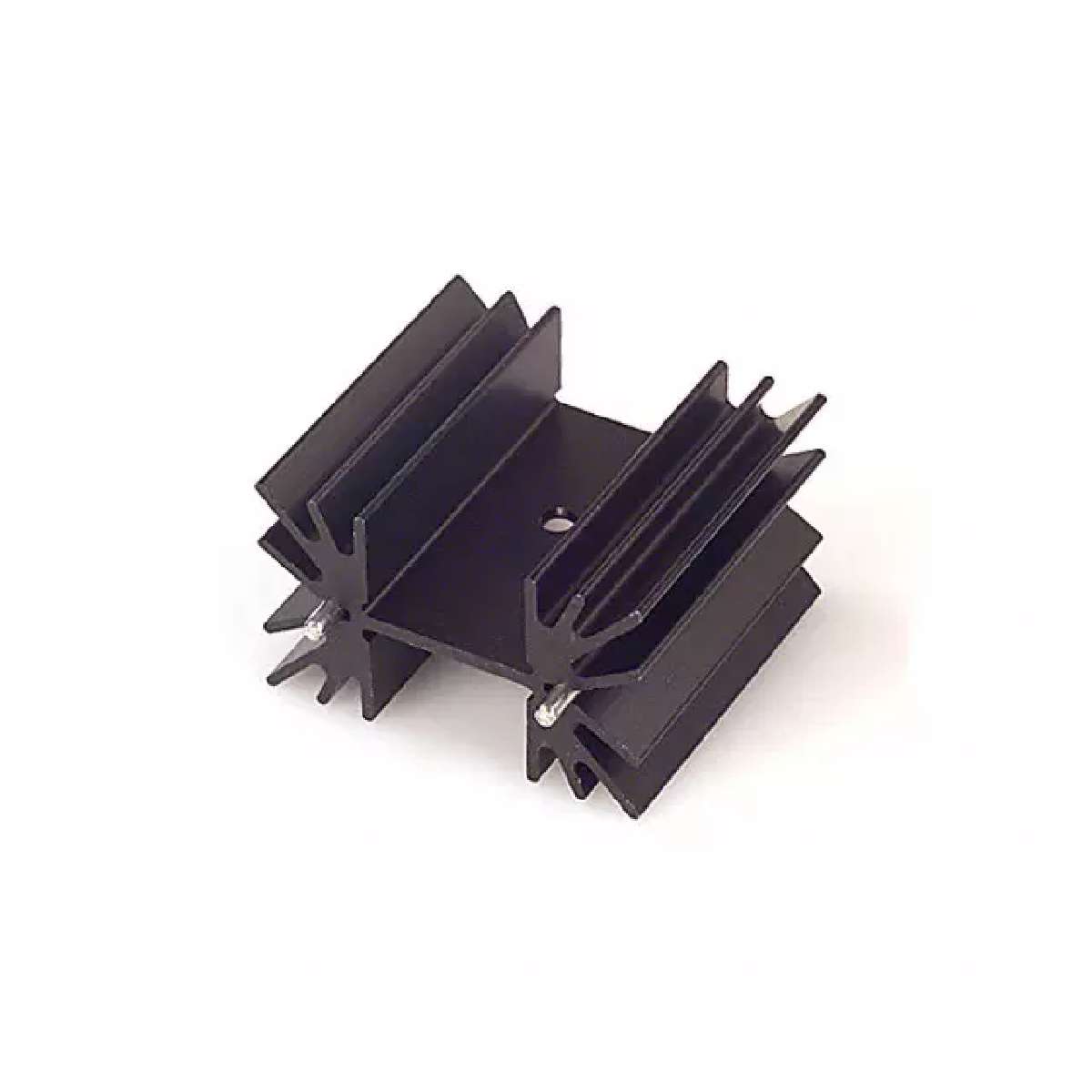

TO-220/TO-247/TO-218 Package 3.3C/W Forced Convection Black Anodized Heat Sink
|
||
| 标准包装：200 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package Cooled | TO-218, TO-220, TO-247 |
|---|---|
| Type | Board Level, Vertical |
| Part Status | Active |
| Category | Fans, Thermal Management |
| Power Dissipation @ Temperature Rise | 6W @ 38°C |
| Length | 1.500" (38.10mm) |
| Thermal Resistance @ Forced Air Flow | 3.3°C/W @ 200 LFM |
| Height Off Base (Height of Fin) | 1.000" (25.40mm) |
| ECCN | EAR99 |
| Attachment Method | Bolt On and PC Pin |
| Material | Aluminum |
| Shape | Rectangular, Fins |
| Manufacturer | Wakefield-Vette |
| Material Finish | Black Anodized |
| Series | 657 |
| Family | Thermal - Heat Sinks |
| Width | 1.650" (41.91mm) |
