| CB1AF-12V | ||
|---|---|---|
|
|
||
|
||

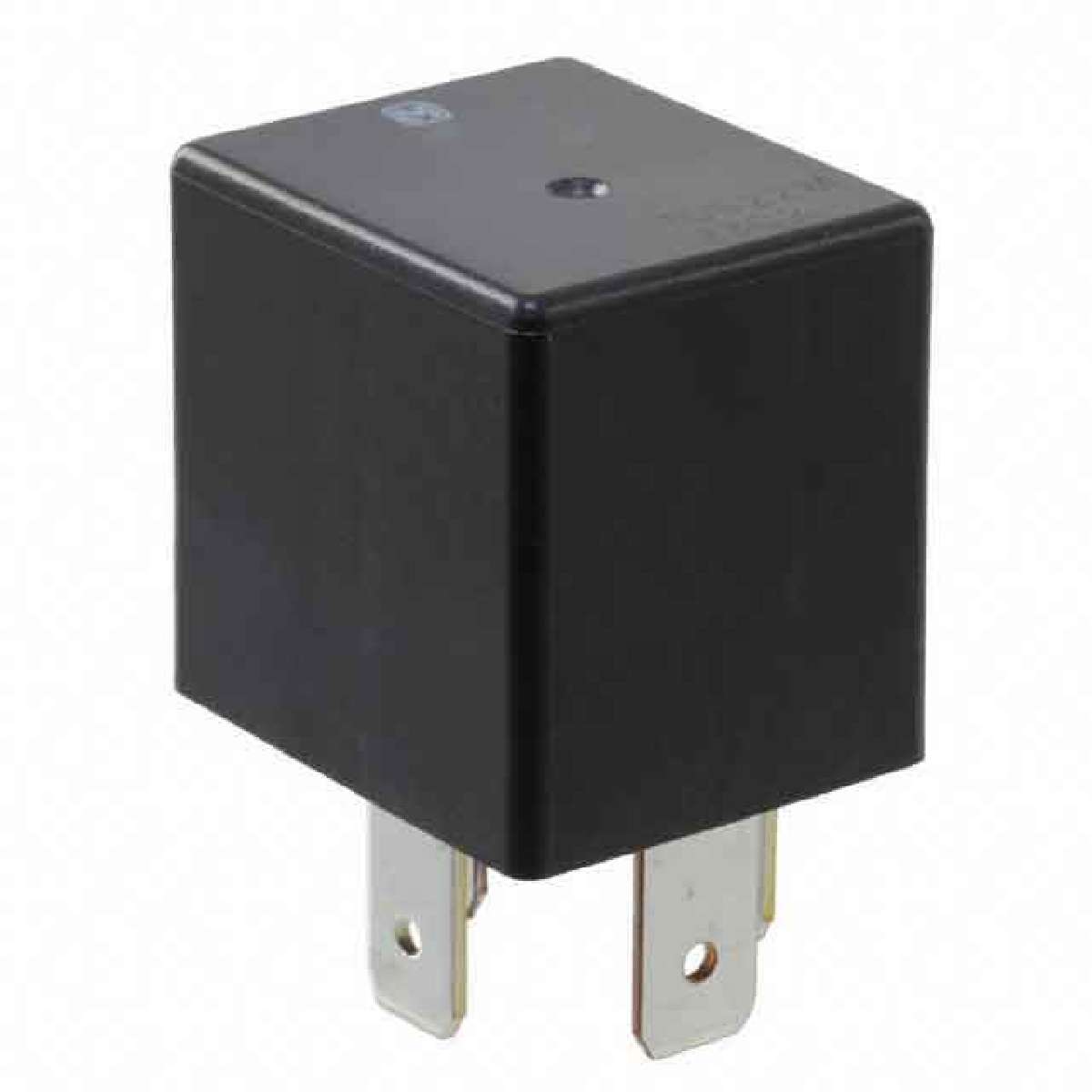

| Product description : CB Series 30 A SPST 12 VDC Plug-In Flux Resistant Automotive Relay | ||
| SPQ：50 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Contact Form | SPST-NO (1 Form A) |
|---|---|
| Turn Off Voltage (Min) | 1.2 VDC |
| Operate Time | 15ms |
| Coil Type | Non Latching |
| Part Status | Active |
| Coil Current | 117mA |
| Release Time | 15ms |
| Contact Material | Silver Alloy, Cadmium Free |
| Series | CB |
| Coil Voltage | 12VDC |
| Mounting Type | Socketable |
| Operating Temperature | -40°C ~ 85°C |
| ECCN | EAR99 |
| Coil Power | 1.4 W |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
| Turn On Voltage (Max) | 7 VDC |
| Features | Sealed - Flux Protection |
| Category | Relays |
| Manufacturer | Panasonic Electric Works |
| Switching Voltage | 14VDC - Nom |
| Relay Type | Automotive |
| Coil Resistance | 103 Ohms |
| Family | Power Relays, Over 2 Amps |
| Contact Rating (Current) | 40A |
| Packaging | Bulk |
You can comment after logging in.
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$6.127
￥50.88870152454226
See more prices
| 50+ | $6.127 |
|---|---|
| 100+ | $6.03586 |
| 250+ | $5.70772 |
| 500+ | $5.41586 |
| 1000+ | $4.30358 |
| stock | 1050 | Update On 2025-02-07 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 50/50 | |
| Location | -- | |
| DateCode | 1703 |
