JJM1-12V specifications -Ameya360 electronic components purchase network


JJM1-12V

ACTIVE EAR99

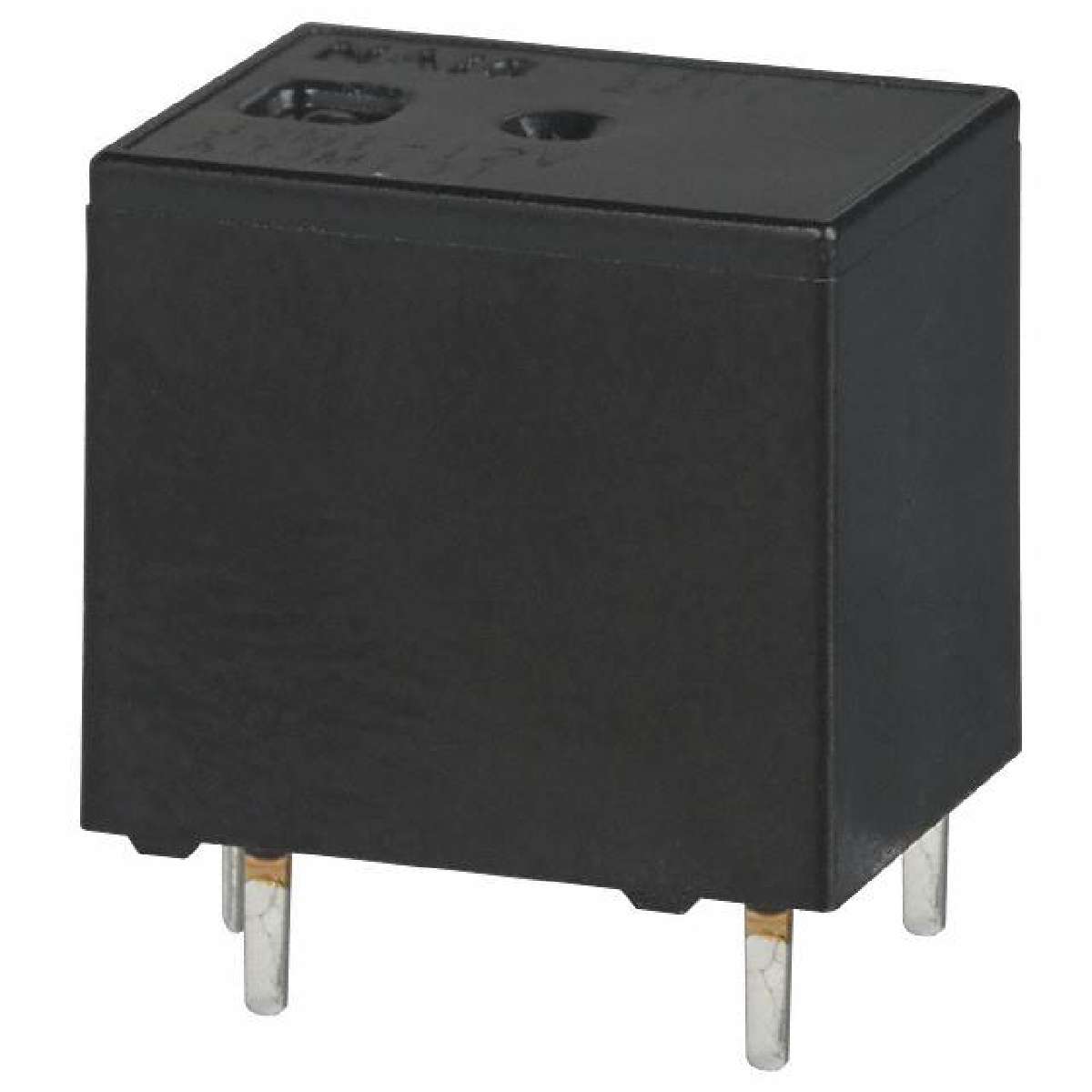

Product description : JJM Series 10 A SPDT 12 VDC Compact Size PCB Automotive Relay
SPQ：1
Datasheet : JJM1-12V.pdf

Contact Form	SPDT (1 Form C)
Termination Style	PC Pin
Coil Type	Non Latching
Switching Voltage	14VDC - Nom
Coil Voltage	12VDC
Contact Rating (Current)	20A
Catalog Drawings	JJM Series PCB JJM Series Circuit JJM Series Footprint
Operate Time	10ms
Coil Current	53.3mA
Contact Material	Silver Alloy, Cadmium Free
Relay Type	Automotive
Family	Power Relays, Over 2 Amps
RoHS	Lead free / RoHS Compliant
Coil Power	640 mW
Turn On Voltage (Max)	7.2 VDC
Other Related Documents	General Appl Guidelines How to Read Date Codes
Coil Resistance	225 Ohms
Mounting Type	Through Hole
Packaging	Bulk
Turn Off Voltage (Min)	1 VDC
Features	Sealed - Fully
Release Time	10ms
Online Catalog	JJM Series
Series	JJM
Operating Temperature	-40°C ~ 85°C
ECCN	EAR99

Datasheet： JJM1-12V.pdf
