| ARE1012 | ||
|---|---|---|
|
|
||
|
||

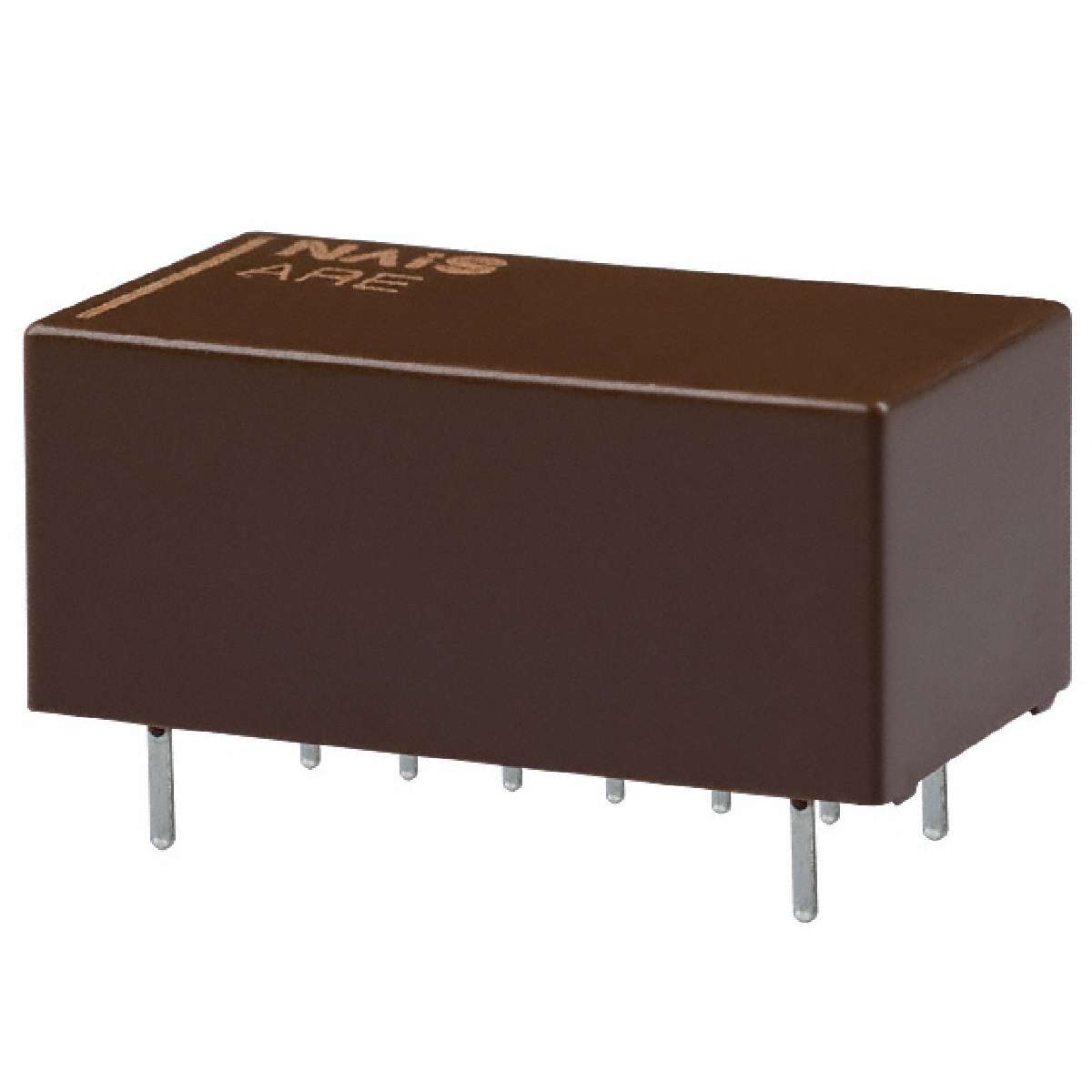

| Product description : ARE Series SPDT 0.5 A 12 V High Frequency Non Latching RF Relay | ||
| SPQ：50 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Contact Form | SPDT (1 Form C) |
|---|---|
| Termination Style | PC Pin |
| Coil Type | Non Latching |
| Switching Voltage | 30VDC - Max |
| Coil Voltage | 12VDC |
| Contact Rating (Current) | 500mA |
| Turn Off Voltage (Min) | 1.2 VDC |
| Coil Current | 16.7mA |
| Contact Material | Gold Plating |
| Relay Type | RF |
| Family | Signal Relays, Up to 2 Amps |
| RoHS | Lead free / RoHS Compliant |
| Coil Power | 200 mW |
| Turn On Voltage (Max) | 9 VDC |
| Other Related Documents | How to Read Date Codes |
| Coil Resistance | 720 Ohms |
| Mounting Type | Through Hole |
| Packaging | Tube |
| Operate Time | 10ms |
| Release Time | 5ms |
| Online Catalog | ARE Series |
| Series | ARE |
| Operating Temperature | -40°C ~ 70°C |
| ECCN | EAR99 |
You can comment after logging in.
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$4.75453
￥39.48945
| stock | Out of stock |
|---|---|
| Lead-Time | -- |
| Supplier SPQ/MOQ | 50/6 |
| Location | -- |
| DateCode | 1913 |
