| EEE-TG1V101P | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

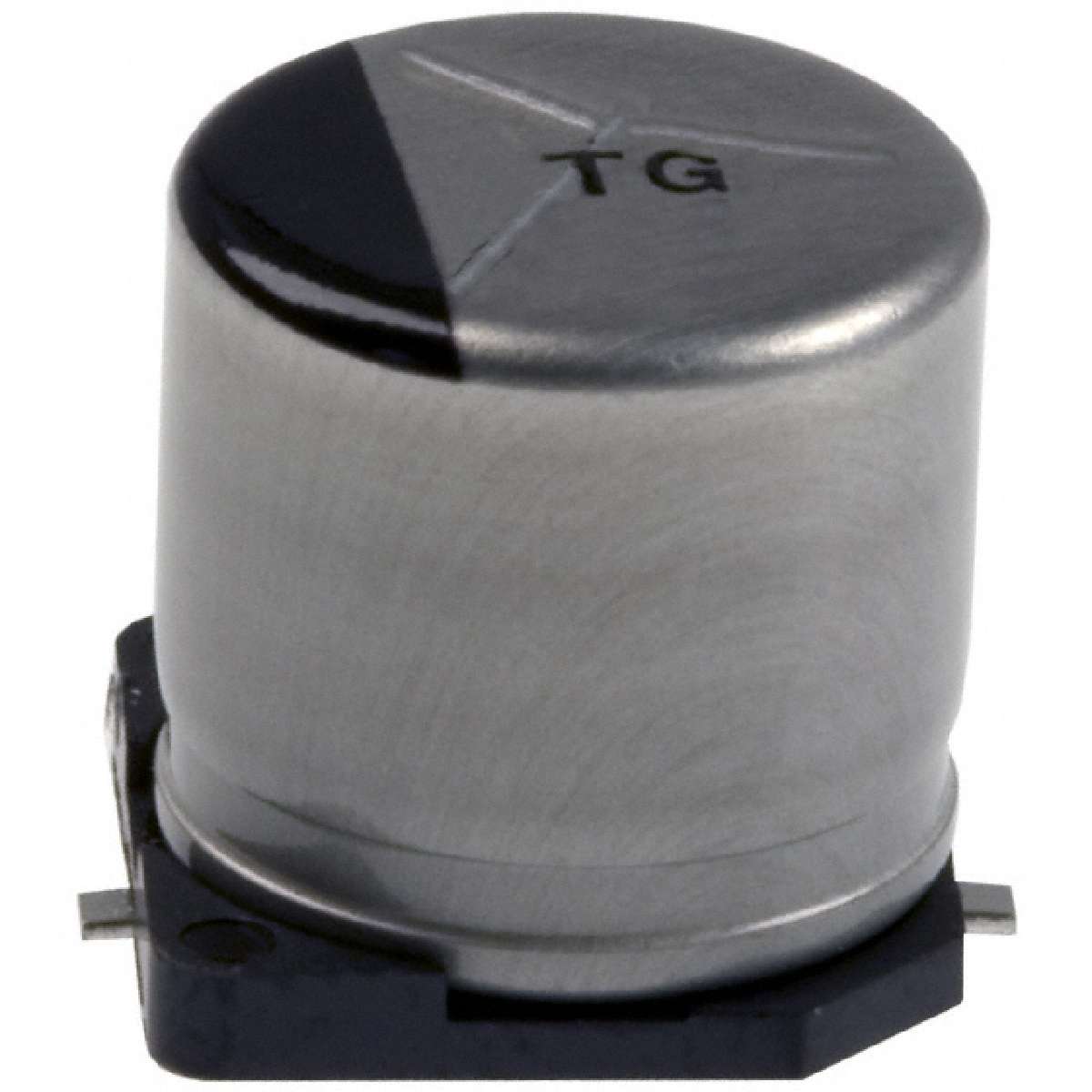

EEE-TG Series 35 V 100 uF Ø 10 x 10.2 mm 125 °C SMT Aluminum Electrolytic Cap
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Radial, Can - SMD |
|---|---|
| Voltage Rating | 35V |
| Polarization | Polar |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Ripple Current | 175.5mA @ 120Hz |
| Manufacturer | Panasonic Electronic Components |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Capacitance | 100µF |
| ESR (Equivalent Series Resistance) | 300 mOhm @ 100kHz |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Series | Automotive, AEC-Q200, TG |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Packaging | Cut Tape (CT) |
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.80461
￥6.682808098215404
See more prices
| 500+ | $0.80461 |
|---|---|
| 1000+ | $0.77097 |
| 2500+ | $0.74028 |
| 5000+ | $0.71192 |
| 7500+ | $0.70122 |
| stock | 1500 | Update On 2024-12-06 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 1/500 | |
| Location | -- | |
| DateCode | 2343 |
