| 6.3ZL1500MEFCT810X20 | ||
|---|---|---|
|
|
||
|
||

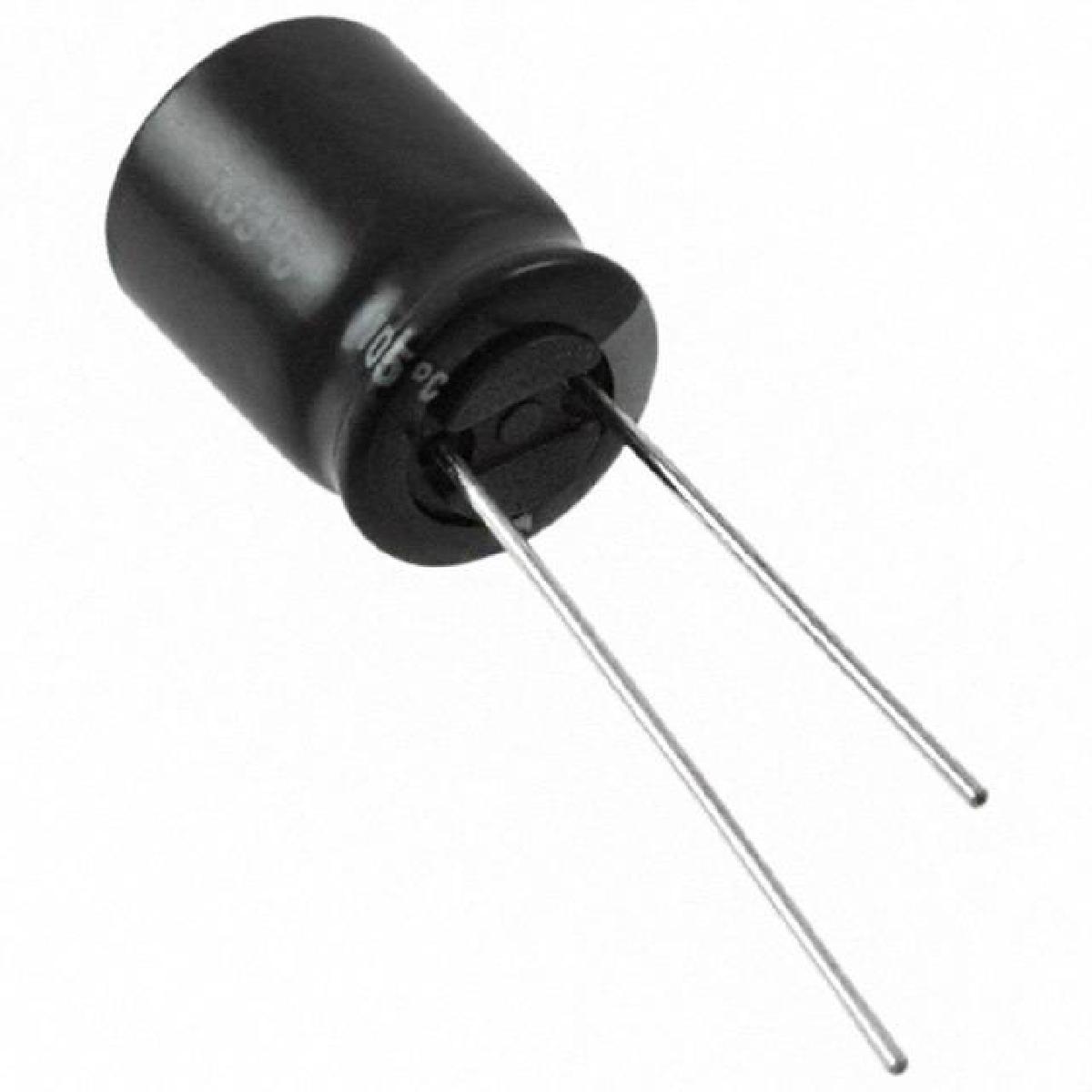

| Product description : CAP ALUM 1500UF 20% 6.3V RADIAL | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 6.3V |
|---|---|
| Impedance | 23 mOhm |
| Lead Spacing | 0.197" (5.00mm) |
| Standard Package | 1,000 |
| Packaging | Tape & Box (TB) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Voltage - Rated | 6.3V |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Capacitance | 1500µF |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Ripple Current | 1.82A |
| Series | ZL |
| Applications | General Purpose |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Polarization | Polar |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Voltage - Rated | 6.3V |
