| 6.3YXG1000MEFC8X16 | ||
|---|---|---|
|
|
||
|
||

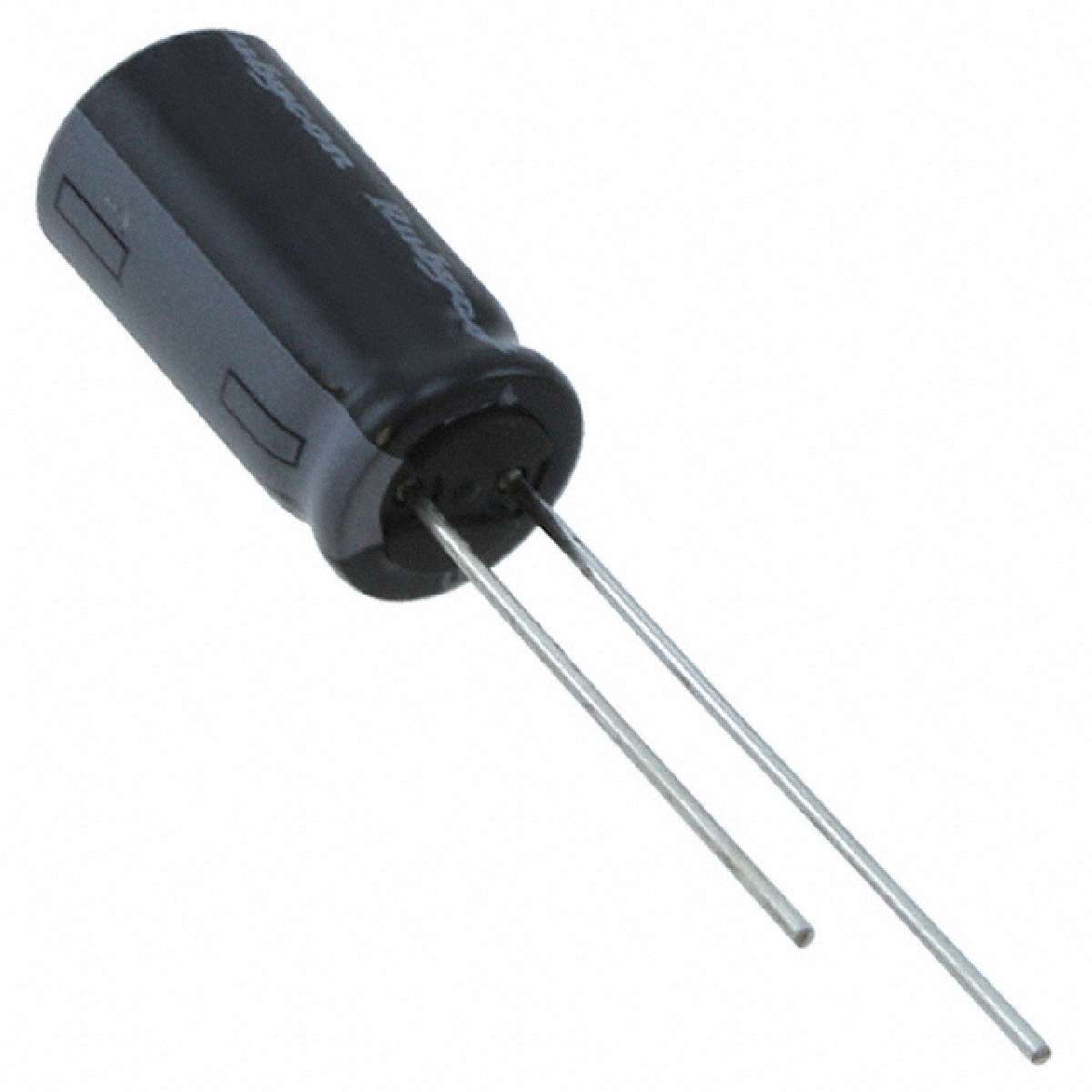

| Product description : CAP ALUM 1000UF 20% 6.3V RADIAL | ||
| SPQ：1000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 6.3V |
|---|---|
| Tolerance | ±20% |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Standard Package | 1,000 |
| Ripple Current | 504mA |
| Series | YXG |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Polarization | Polar |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Voltage - Rated | 6.3V |
| Impedance | 87 mOhm |
| Lead Spacing | 0.138" (3.50mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Applications | General Purpose |
| Capacitance | 1000µF |
| Packaging | Bulk |
| Online Catalog | YXG Series |
| Family | Aluminum Capacitors |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Voltage - Rated | 6.3V |
