| 5KP14A-E3/51 | ||
|---|---|---|
|
|
||
|
||

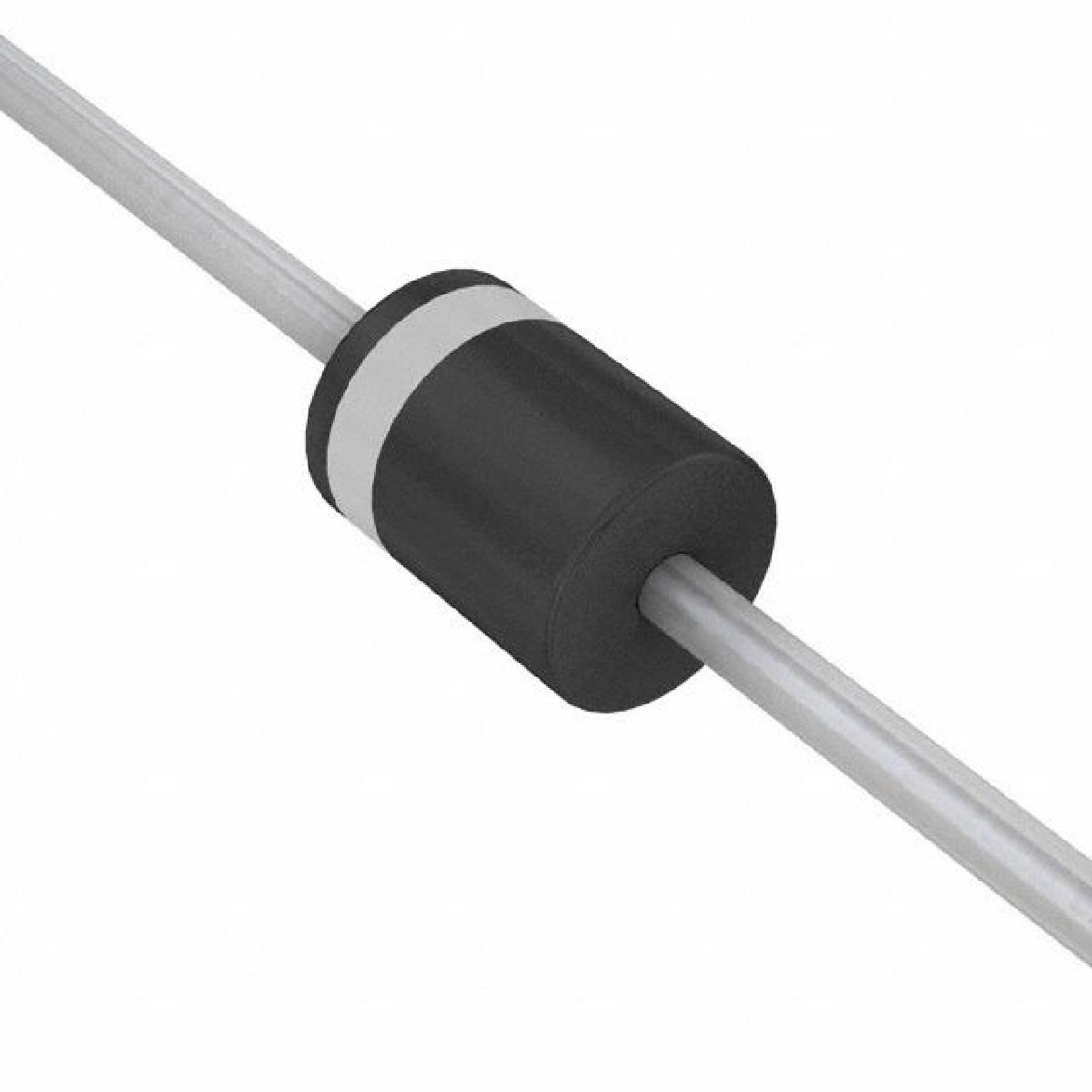

| Product description : Diode TVS Single Uni-Dir 14V 5KW 2-Pin | ||
| SPQ：750 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Polarity: | Unidirectional |
|---|---|
| Packaging: | Bulk |
| Manufacturer: | Vishay |
| Series: | 5KP |
| Minimum Operating Temperature: | - 55 C |
| Breakdown Voltage: | 15.6 V |
| Brand: | Vishay Semiconductors |
| RoHS: | Details |
| Diameter: | 9.1 mm |
| Product Category: | TVS Diodes - Transient Voltage Suppressors |
| Unit Weight: | 0.097921 oz |
| Maximum Operating Temperature: | + 175 C |
| Working Voltage: | 14 V |
| Length: | 9.1 mm |
| Peak Surge Current: | 600 A |
| Pd - Power Dissipation: | 5 kW |
| Operating Temperature Range: | - 55 C to + 175 C |
| Factory Pack Quantity: | 750 |
| Tradename: | TransZorb |
| Termination Style: | Axial |
| Package / Case: | P600 |
| Clamping Voltage: | 23.2 V |
| Mounting Style: | Through Hole |
| ECCN | EAR99 |
