| TA-64.000MBD-T | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

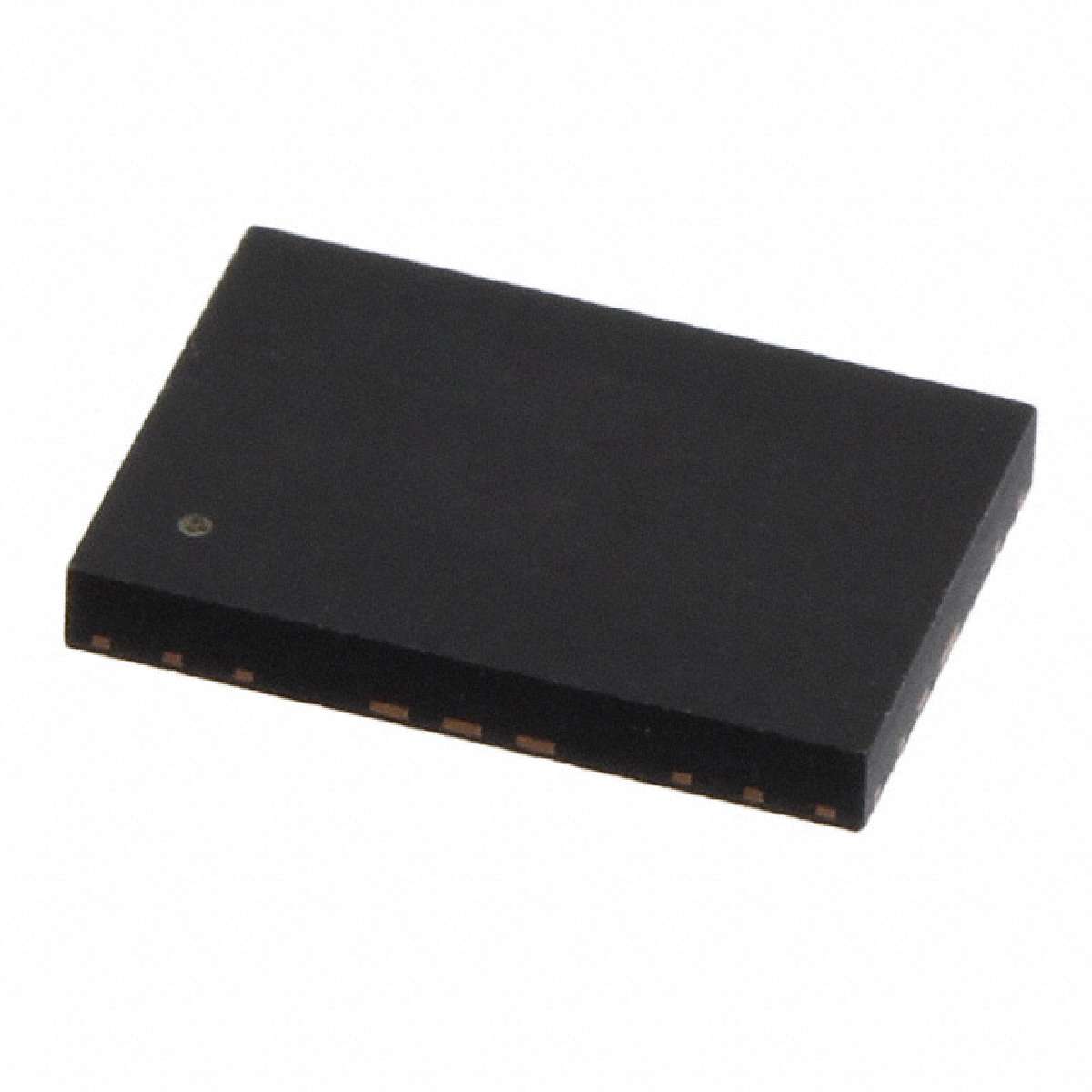

OSC MEMS 64.000MHZ CMOS SMD
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Frequency Stability | ±25ppm |
|---|---|
| Package / Case | 4-SMD, No Lead (DFN, LCC) |
| Function | Enable/Disable |
| Output | CMOS |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Category | Crystals and Oscillators |
| Series | TA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| ECCN | EAR99 |
| Voltage - Supply | 3.3V |
| Type | MEMS (Silicon) |
| Height | 0.039" (1.00mm) |
| Current - Supply (Max) | 30mA |
| Part Status | Active |
| Manufacturer | TXC CORPORATION |
| Family | Oscillators |
| Frequency | 64MHz |
| Packaging | Tape & Reel (TR) |
