| 594D336X0035R8T | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

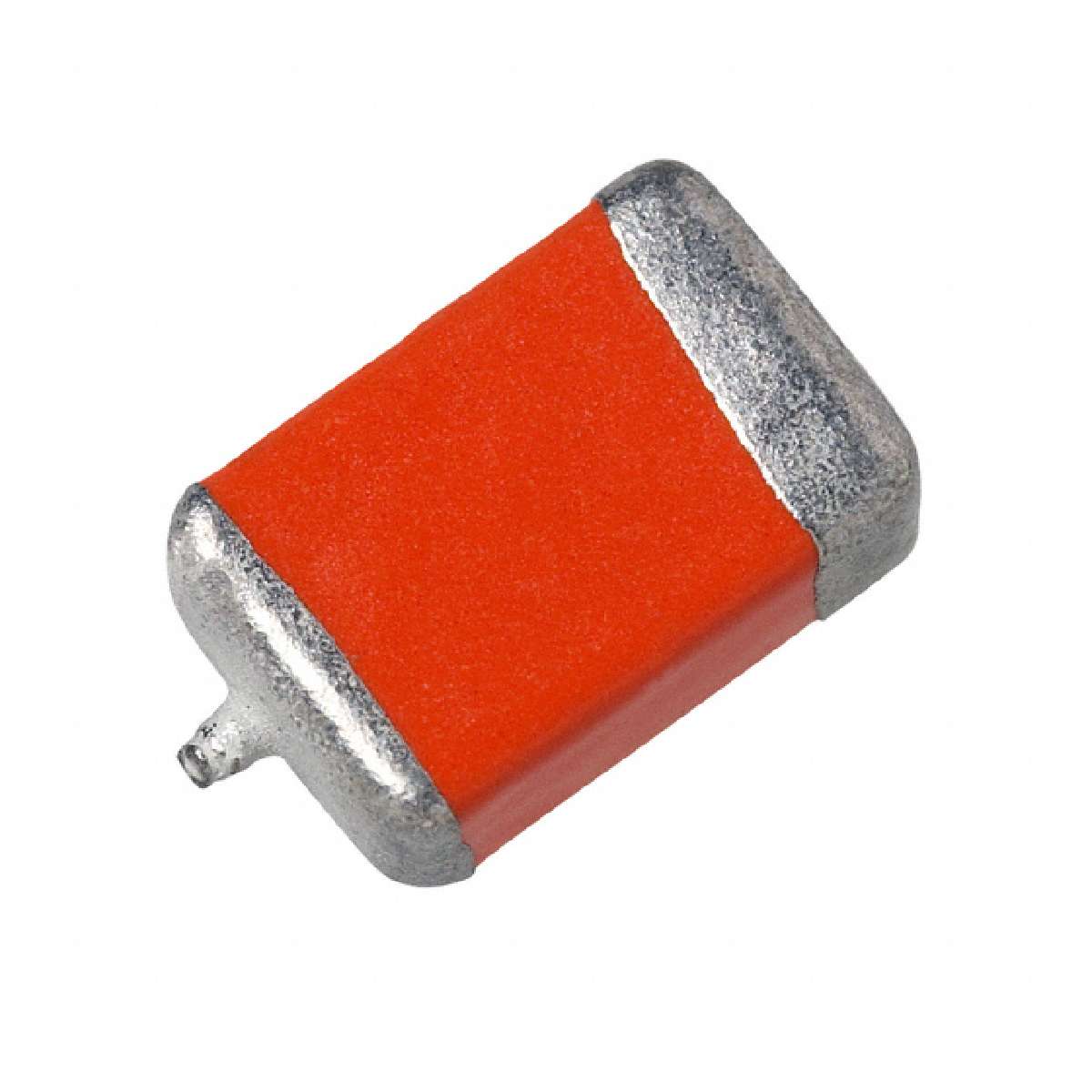

594D Series 33 uF ±20% 35 V SMT Solid Conformal Coated Tantalum Chip Capacitor
|
||
| 标准包装：600 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±20% |
|---|---|
| Type | Conformal Coated |
| Manufacturer Size Code | R |
| ESR (Equivalent Series Resistance) | 200 mOhm |
| Size / Dimension | 0.283" L x 0.236" W (7.20mm x 6.00mm) |
| Voltage - Rated | 35V |
| Series | TANTAMOUNT® 594D |
| Mounting Type | Surface Mount |
| ECCN | EAR99 |
| Package / Case | 2824 (7260 Metric) |
| Capacitance | 33µF |
| Standard Package | 600 |
| Features | General Purpose |
| Packaging | Tape & Reel (TR) |
| Height - Seated (Max) | 0.150" (3.80mm) |
| Family | Tantalum Capacitors |
| Operating Temperature | -55°C ~ 125°C |
