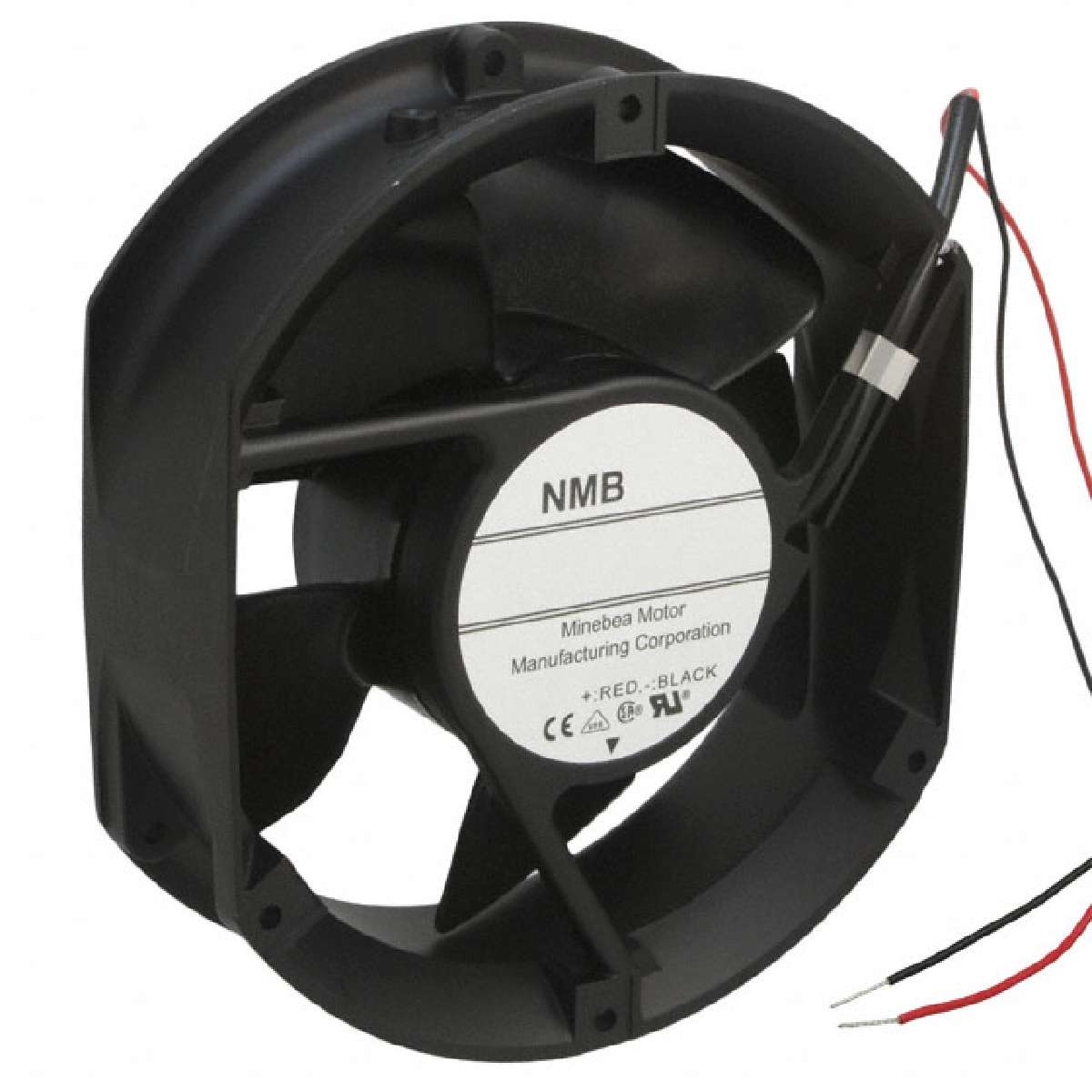

| 5920PL-05W-B70-D00 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
119x38mm, 24VDC, 108.0 CFM, 2950 RPM, 42.5 dB, 3 wire, Locked Rotor, Ball Beari
|
||
| 标准包装：10 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product Training Modules | Cooling Solutions Computer Cooling in System Design Thermal Simulation in Telecom Applications |
|---|---|
| Other Related Documents | Fan Agency Approvals |
| Air Flow | 300.0 CFM (8.50m³/min) |
| Power (Watts) | 25.9W |
| Fan Type | Tubeaxial |
| Static Pressure | 0.909 in H2O (226.5 Pa) |
| Standard Package | 10 |
| Voltage - Rated | 24VDC |
| Series | 5920PL |
| RPM | 4000 RPM |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| ECCN | EAR99 |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H x 50.8mm W |
| Material - Frame | Aluminum |
| Weight | 1.8 lbs (816.5g) |
| Bearing Type | Ball |
| Termination | 2 Wire Leads |
| Material - Blade | Plastic |
| Voltage Range | 12 ~ 30VDC |
| Noise | 63.2 dB |
| Family | DC Fans |
| RoHS Information | 5920PL-05W-B70-D00 Material |
| Current Rating | 1.08A |
