| 59166-1-S-00-D | ||
|---|---|---|
|
|
||
|
||

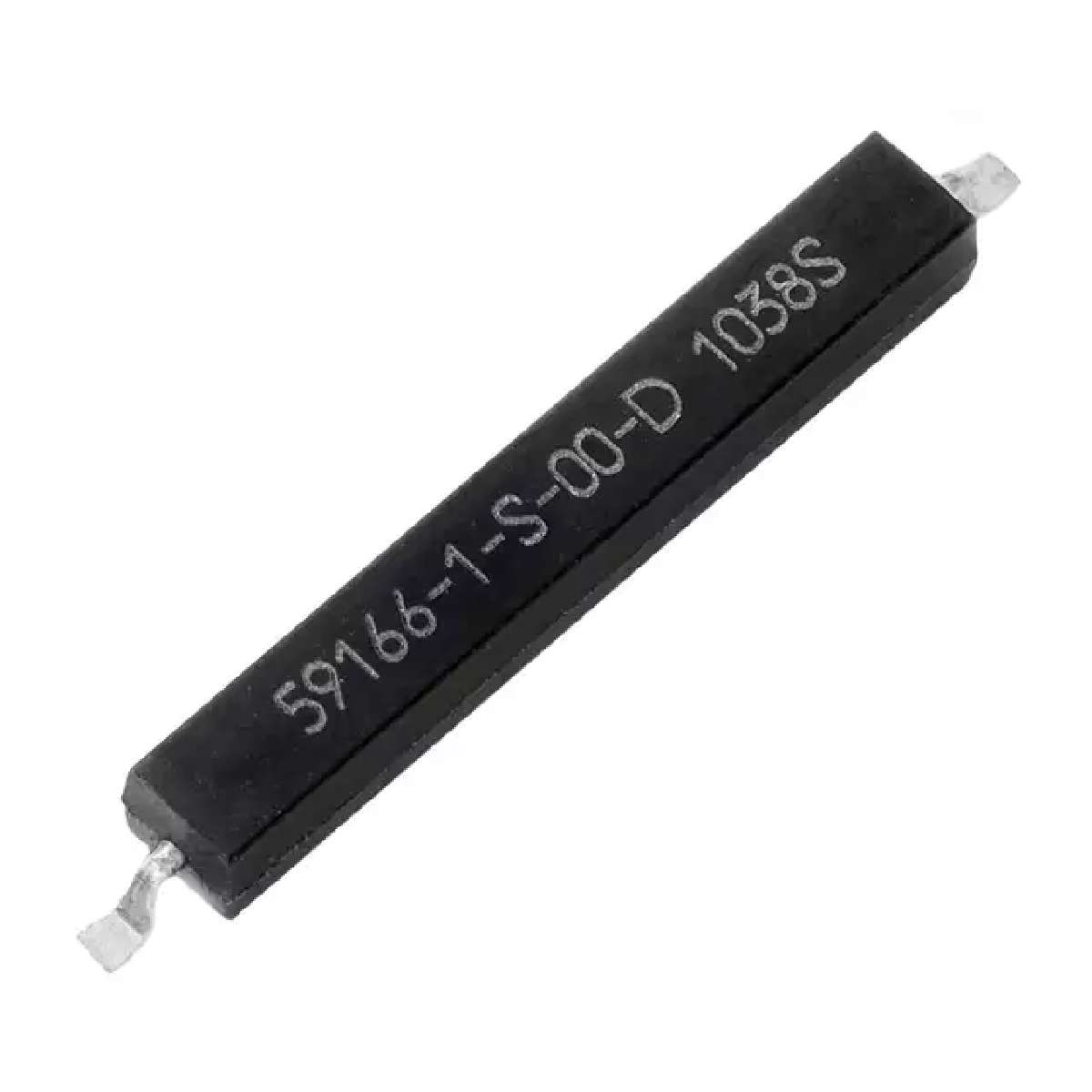

| Product description : 59166 Series SPST 200 V 500 mA Surface Mount Molded Body Reed Switch | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Height Above Board | 0.099" (2.52mm) |
|---|---|
| Circuit | SPST-NO |
| Current - Switching | 350mA (AC), 500mA (DC) |
| Operate Range | 10 ~ 15AT |
| Operate Time | 0.6ms |
| Size - Body | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) |
| Manufacturer | Littelfuse Inc. |
| Power - Rated | 10W |
| Series | 59166 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Packaging | Tape & Reel (TR) |
| Voltage - Switching AC | 140V |
| Type | Molded Body |
| Capacitance | 0.30pF |
| Termination Style | Gull Wing |
| Part Status | Active |
| Category | Switches |
| Release Time | 0.2ms |
| Length - Overall | 0.805" (20.45mm) |
| Family | Magnetic, Reed Switches |
| Voltage - Switching DC | 200V |
| Current - Carry | 800mA (DC) |
| ECCN | EAR99 |
You can comment after logging in.
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.83576
￥6.941529845904869
| 1500+ | $0.83576 |
|---|---|
| 4500+ | $0.79593 |
| stock | 6000 | Update On 2023-12-25 |
|---|---|---|
| Lead-Time | 15Weeks | |
| Supplier SPQ/MOQ | 1/1500 | |
| Location | -- | |
| DateCode | 2337 |
