| 574204B00000G | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

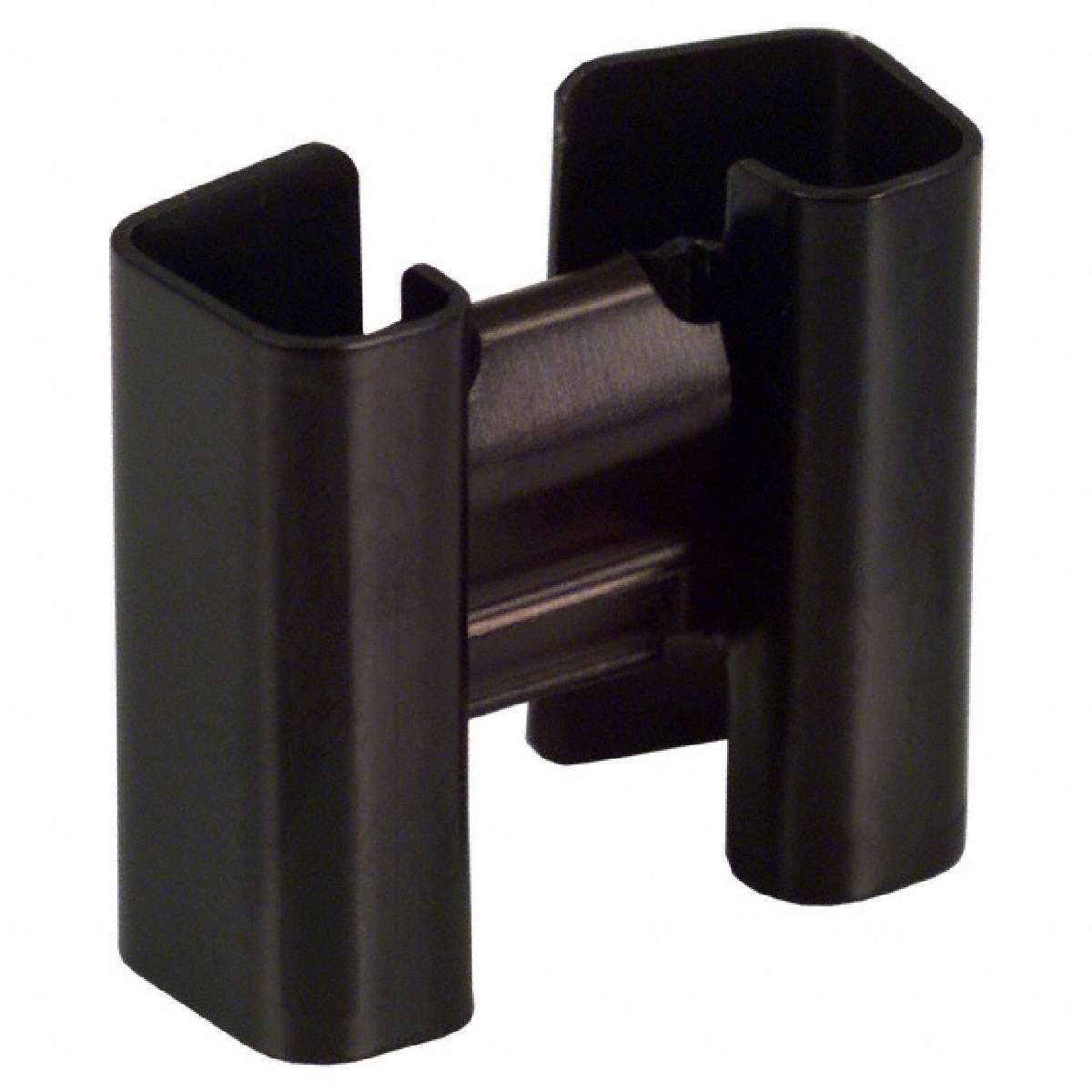

TO-202 Package 16.80 C/W Thermal Resistance Low Cost Slide On Cooler Heat Sink
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package Cooled | TO-202 |
|---|---|
| Type | Board Level |
| Catalog Drawings | 574204B00000G |
| Product Training Modules | How to Select a Heat Sink |
| Power Dissipation @ Temperature Rise | 1W @ 20°C |
| Length | 0.900" (22.86mm) |
| Family | Thermal - Heat Sinks |
| Width | 1.020" (25.91mm) |
| ECCN | EAR99 |
| Attachment Method | Clip |
| Material | Aluminum |
| Standard Package | 1,000 |
| Shape | Rectangular |
| Material Finish | Black Anodized |
| Thermal Resistance @ Forced Air Flow | 8.0°C/W @ 200 LFM |
| Height Off Base (Height of Fin) | 0.420" (10.67mm) |
| Thermal Resistance @ Natural | 16.8°C/W |
