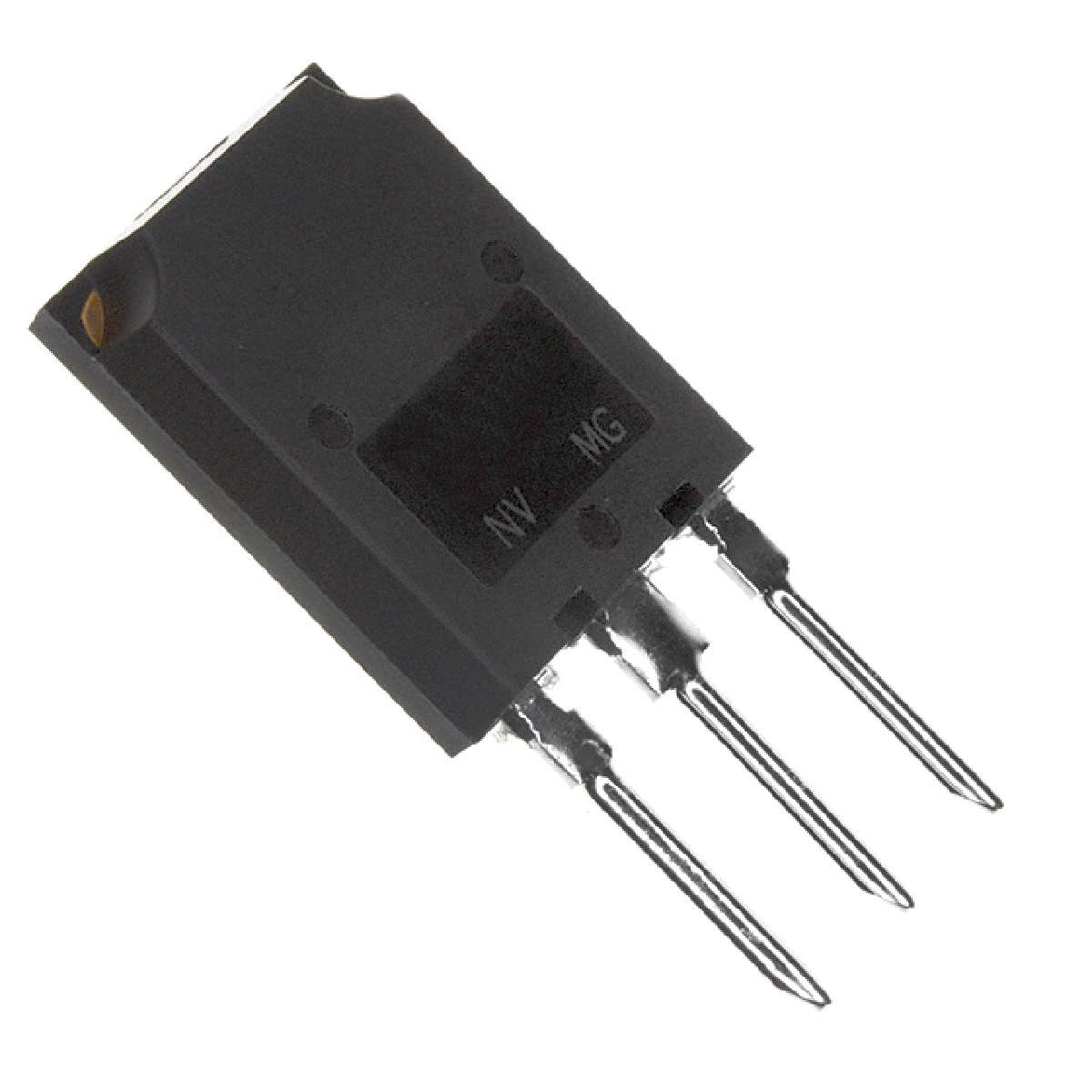

| IRFPS40N50LPBF | ||
|---|---|---|
|
|
||
|
||
| Product description : Transistor: N-MOSFET; unipolar; 500V; 29A; 540W; SUPER247 | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Width: | 5.3 mm |
|---|---|
| Rds On - Drain-Source Resistance: | 100 mOhms |
| Pd - Power Dissipation: | 540 W |
| Package / Case: | TO-247-3 |
| Configuration: | Single |
| Unit Weight: | 1.340411 oz |
| Number of Channels: | 1 Channel |
| Typical Turn-On Delay Time: | 27 ns |
| Manufacturer: | Vishay |
| Factory Pack Quantity: | 500 |
| Brand: | Vishay Semiconductors |
| RoHS: | Details |
| Id - Continuous Drain Current: | 46 A |
| Rise Time: | 170 ns |
| Maximum Operating Temperature: | + 150 C |
| Packaging: | Tube |
| Minimum Operating Temperature: | - 55 C |
| Technology: | Si |
| Height: | 20.8 mm |
| Vgs - Gate-Source Voltage: | 30 V |
| Mounting Style: | Through Hole |
| Fall Time: | 69 ns |
| Length: | 16.1 mm |
| Transistor Polarity: | N-Channel |
| Channel Mode: | Enhancement |
| Typical Turn-Off Delay Time: | 50 ns |
| Product Category: | MOSFET |
| Vds - Drain-Source Breakdown Voltage: | 500 V |
| Transistor Type: | 1 N-Channel |
| ECCN | EAR99 |
