| 50TXW100MEFC6.3X25 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

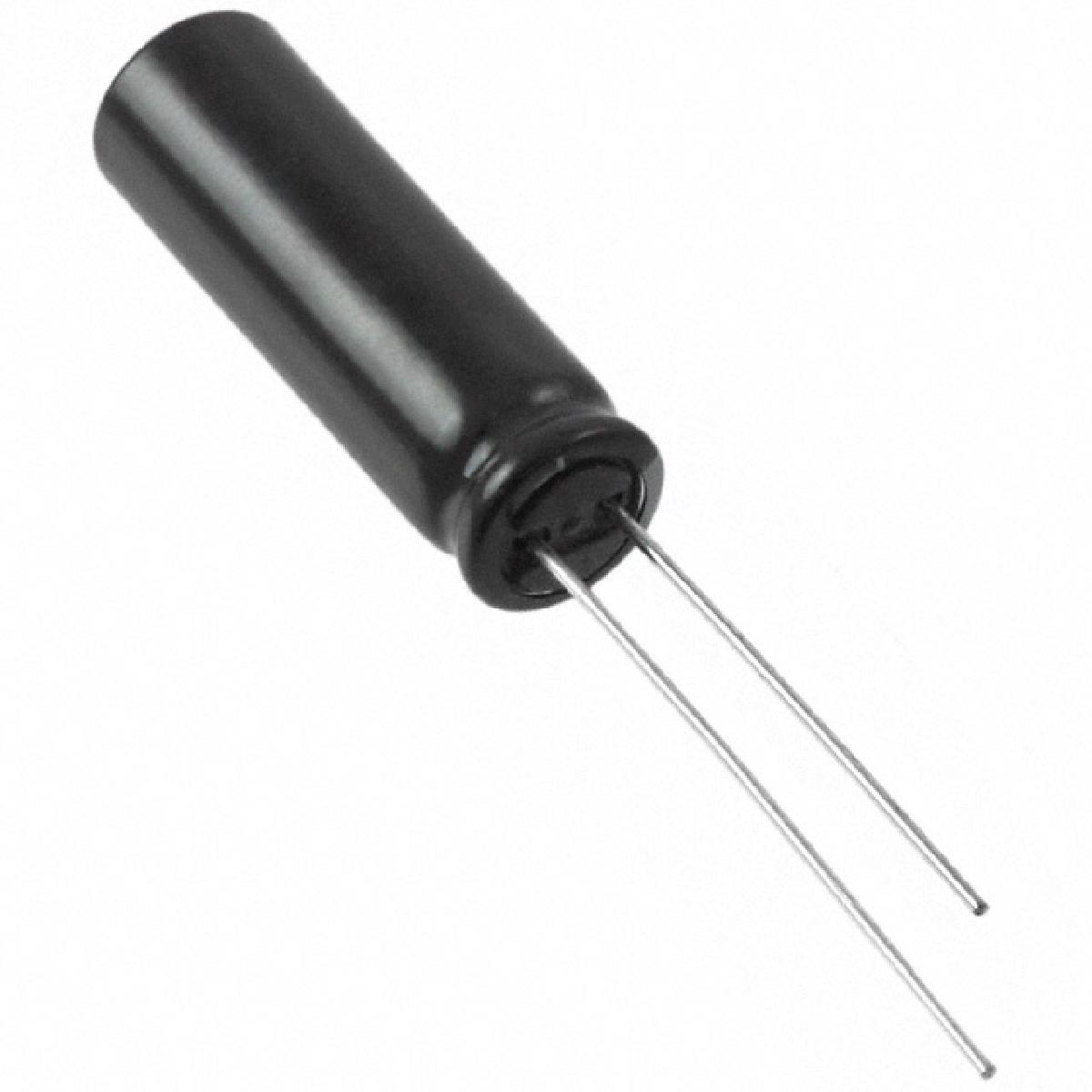

CAP ALUM 100UF 20% 50V RADIAL
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 50V |
|---|---|
| Package / Case | Radial, Can |
| Capacitance | 100µF |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Ripple Current | 510mA |
| Series | TXW |
| Applications | General Purpose |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Part Status | Active |
| Tolerance | ±20% |
| Lead Spacing | 0.098" (2.50mm) |
| Standard Package | 1,000 |
| Packaging | Bulk |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Part Status | Active |
