| 50THV33M8X10.5 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

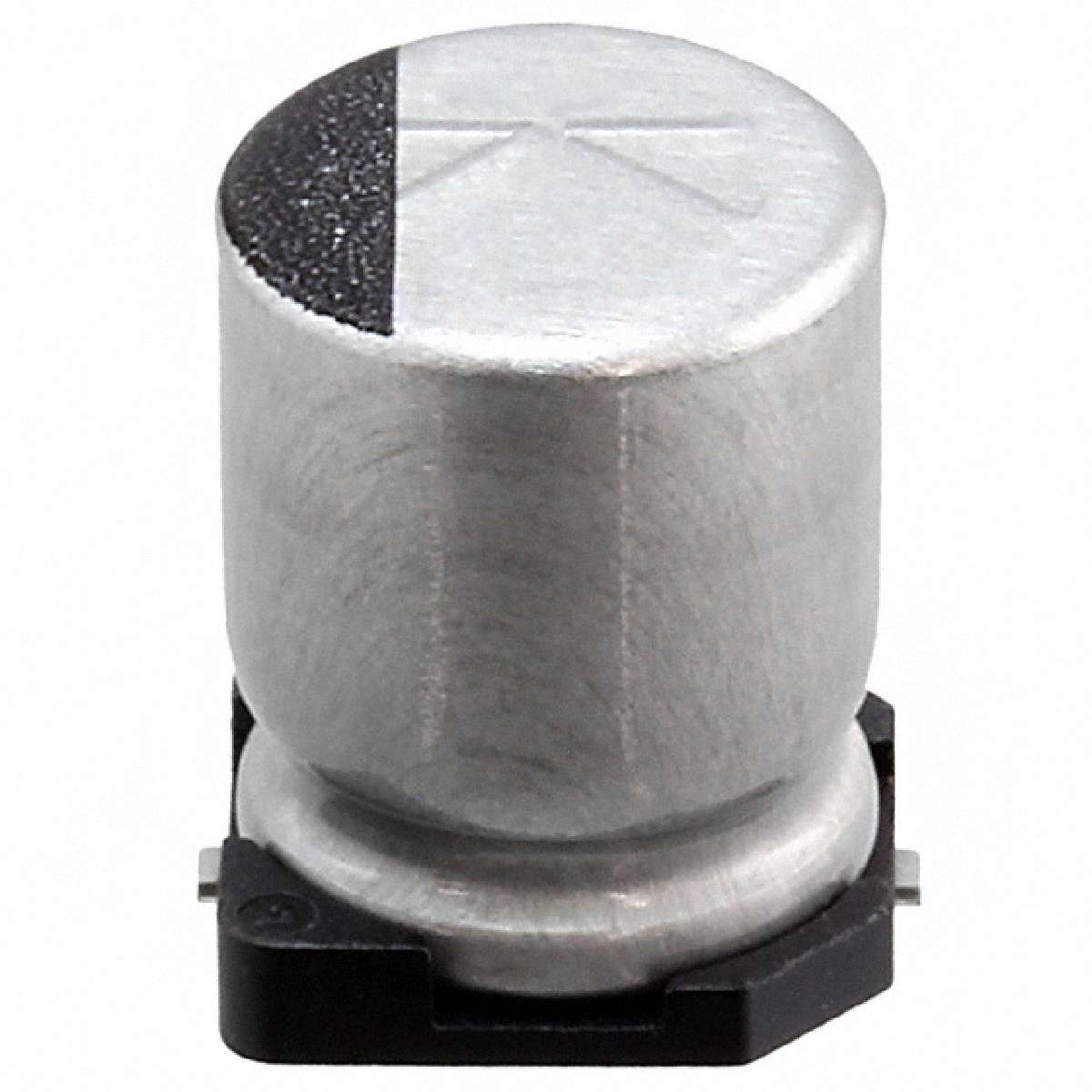

CAP ALUM 33UF 20% 50V SMD
|
||
| 标准包装：500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 50V |
|---|---|
| Package / Case | Radial, Can - SMD |
| Standard Package | 500 |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Ripple Current | 112.5mA |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Part Status | Active |
| Tolerance | ±20% |
| Capacitance | 33µF |
| ESR (Equivalent Series Resistance) | 360 mOhm |
| Packaging | Tape & Reel (TR) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Series | THV |
| Applications | Automotive |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Part Status | Active |
