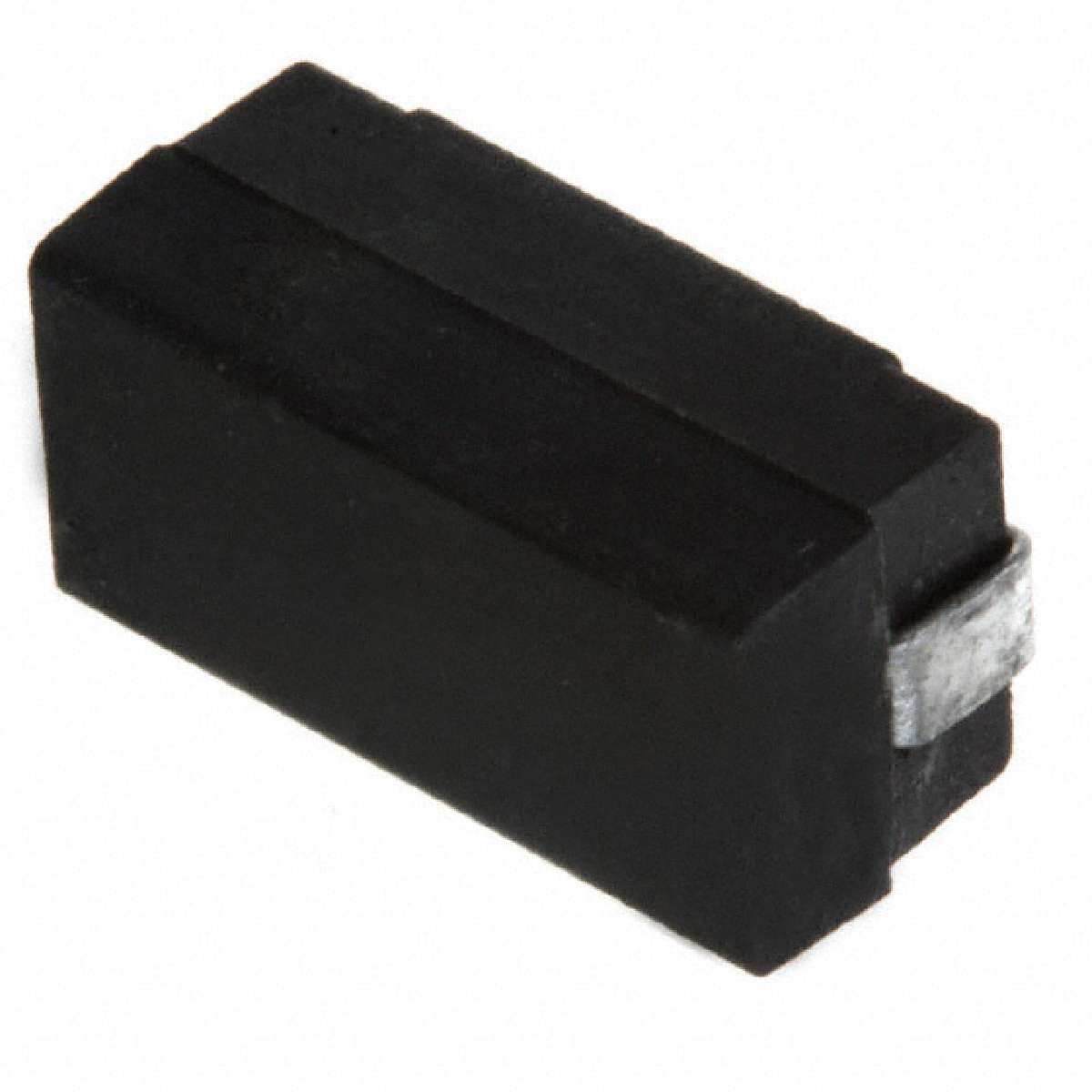

5022-102J | ||
---|---|---|
|
||
|
||
产品描述:
FIXED IND 1UH 1.125A 290 MOHM
|
||
标准包装:100 | ||
数据手册: |
Tolerance | ±5% |
---|---|
Package / Case | Nonstandard |
Frequency - Self Resonant | 200MHz |
Q @ Freq | 50 @ 25MHz |
Packaging | Tape & Reel (TR) |
Material - Core | Phenolic |
Family | Fixed Inductors |
Shielding | Unshielded |
DC Resistance (DCR) | 290 mOhm Max |
Frequency - Test | 25MHz |
Inductance | 1µH |
Catalog Drawings | 5022 Series, Bottom 5022 Series |
Standard Package | 800 |
Size / Dimension | 0.505" L x 0.240" W (12.82mm x 6.09mm) |
Height - Seated (Max) | 0.230" (5.84mm) |
Series | 5022 |
Mounting Type | Surface Mount |
Operating Temperature | -55°C ~ 125°C |
Current Rating | 1.125A |
数据手册: |
---|
