| 500ASSP1M6RE | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

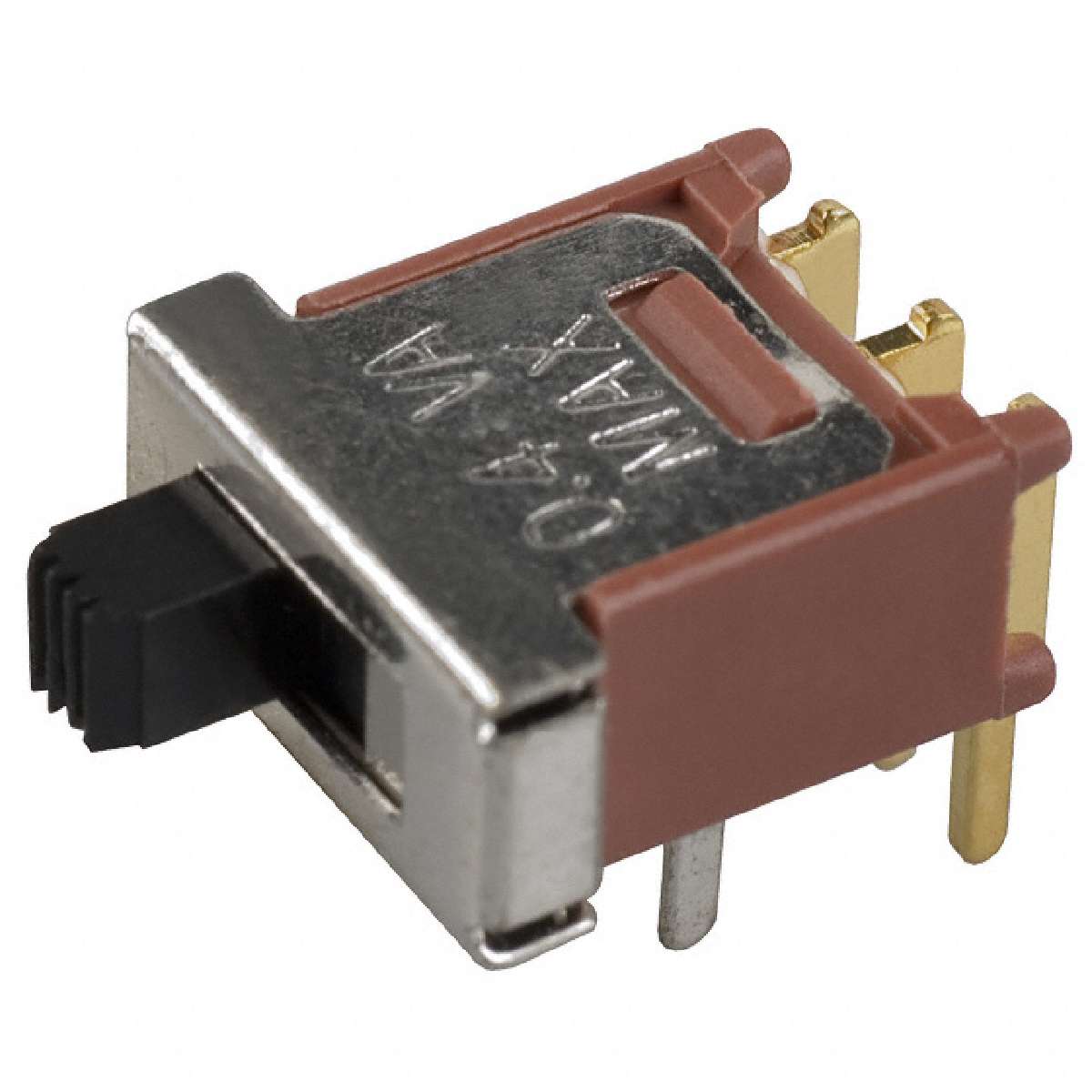

500A Series SPDT On-None-On PC Pin Sub-Miniature Through Hole Slide Switch
|
||
| 标准包装：54 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Switch Function | On-On |
|---|---|
| Termination Style | PC Pin |
| Product Training Modules | Switch Basics Power Switch Overview |
| Mounting Type | Through Hole, Right Angle |
| Circuit | SPDT |
| Actuator Length | 3.10mm |
| Standard Package | 1 |
| Features | Epoxy Sealed Terminals |
| Contact Material | Copper Alloy |
| Series | 500A |
| Family | Slide Switches |
| Operating Temperature | -30°C ~ 85°C |
| Contact Timing | Not Specified |
| ECCN | EAR99 |
| Contact Finish | Gold |
| Voltage Rating - DC | 20V |
| Electrical Life | 30,000 Cycles |
| Actuator Material | Polyamide (PA), Nylon |
| Actuator Type | Standard |
| Catalog Drawings | 500ASSP1M6xE |
| Voltage Rating - AC | 20V |
| Packaging | Bulk |
| Switch Travel | 3.05mm |
| Mechanical Life | 30,000 Cycles |
| RoHS Information | 500A Series RoHS Cert of Compliance |
| 3D Model | 500ASSPxM6xE.stp |
| Current Rating | 0.4VA (AC/DC) |
