| 60R075XPR | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

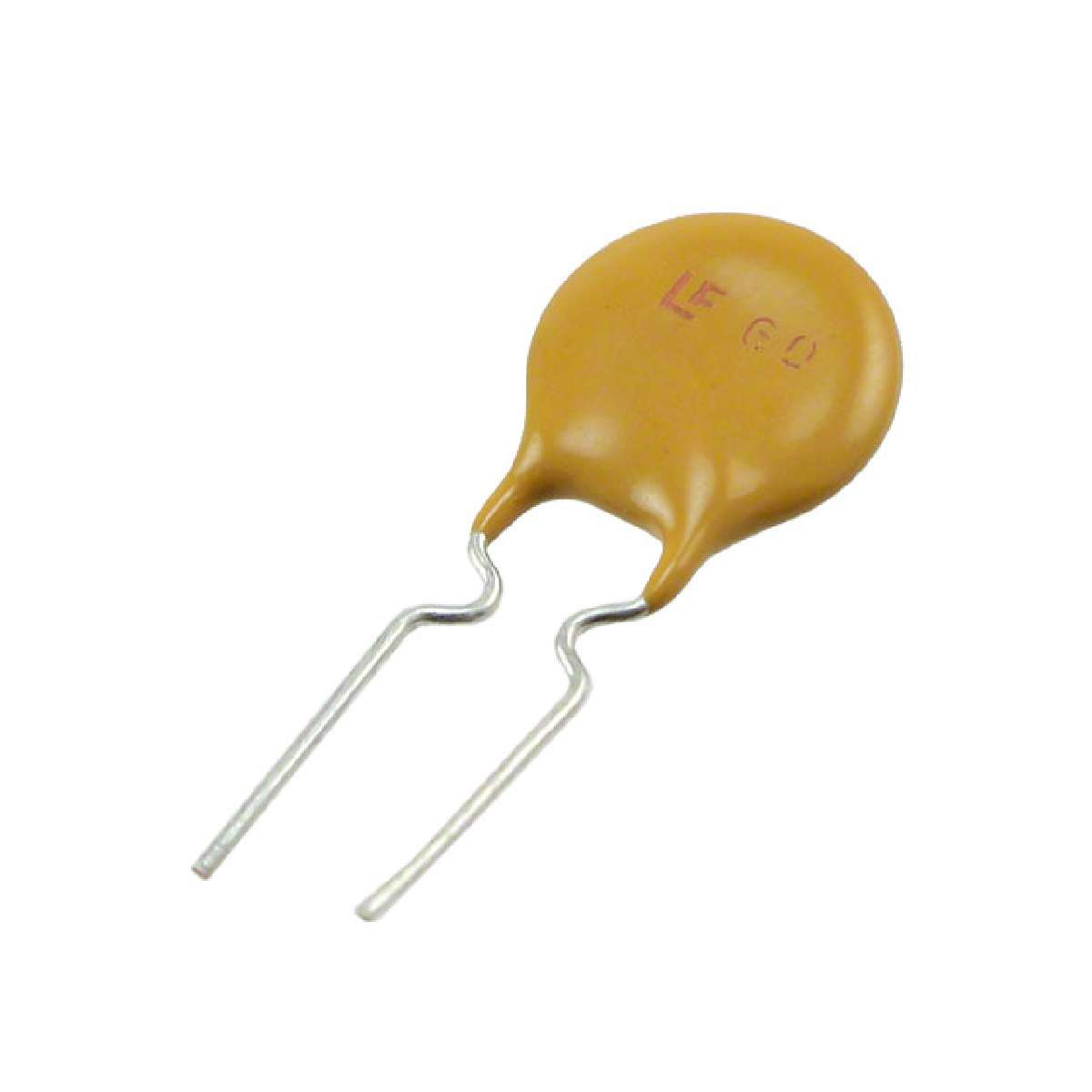

60R Series 60 V 0.75 A Ø 10.2 x 3.1 mm Radial POLYFUSE® Resettable PTC
|
||
| 标准包装：2000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Packaging: | Ammo Pack |
|---|---|
| Maximum Voltage: | 60 VDC |
| Manufacturer: | Littelfuse |
| Series: | 60R |
| Operating Temperature Range: | - 40 C to + 85 C |
| Brand: | Littelfuse |
| Termination Style: | Radial |
| Product Category: | Resettable Fuses - PPTC |
| Current Rating - Max: | 40 A |
| Lead Spacing: | 5.1 mm |
| Mounting Style: | Through Hole |
| Length: | 15 mm |
| Trip Current: | 1.5 A |
| Resistance: | 0.6 Ohms |
| Pd - Power Dissipation: | 920 mW |
| Factory Pack Quantity: | 2000 |
| RoHS: | Details |
| Diameter: | 10.2 mm |
| Height: | 3.1 mm |
| Hold Current: | 0.75 A |
| Type: | PolyFuse Resettable PTC |
| ECCN | EAR99 |
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 2000 | Update On 2025-08-12 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 2000/2000 | |
| Location | -- | |
| DateCode | 2513 |
