| 450-0104C | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

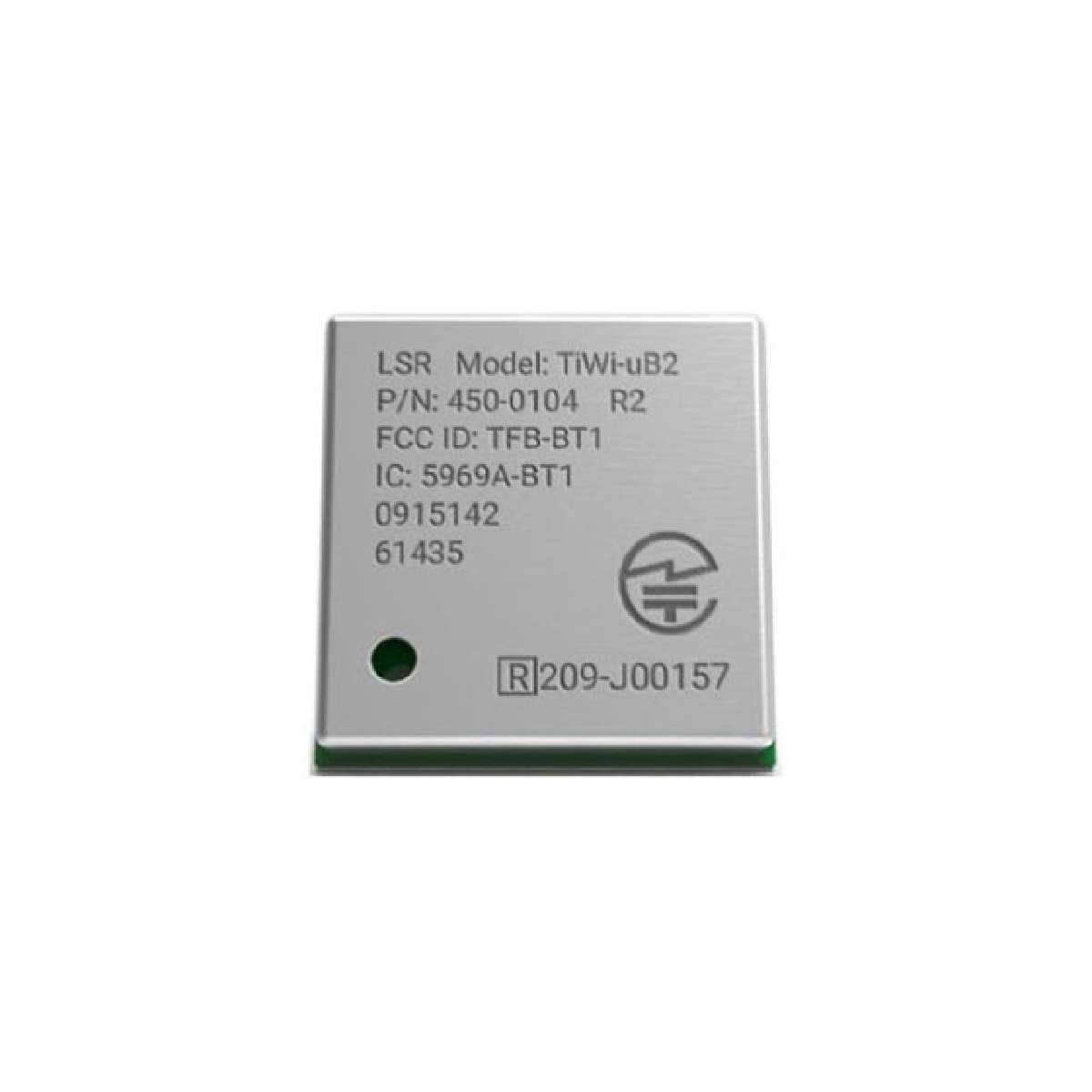

2.4 Ghz 3.9 Mbps 10 dBm Bluetooth v4.0 Dual Mode Transceiver Module - No Antenna
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| RF Family/Standard | Bluetooth |
|---|---|
| Voltage - Supply | 2.2 V ~ 4.8 V |
| Package / Case | Module |
| Power - Output | 10dBm |
| Antenna Type | Not Included |
| Category | RF/IF and RFID |
| Current - Receiving | 44.5mA |
| Series | TiWi-uB1 |
| Mounting Type | Surface Mount |
| Operating Temperature | -30°C ~ 85°C |
| Packaging | Cut Strip |
| Sensitivity | -94dBm |
| Data Rate | 3.9Mbps |
| Serial Interfaces | UART |
| Current - Transmitting | 38.5mA ~ 39.2mA |
| Part Status | Active |
| Manufacturer | LSR |
| Modulation | DPSK, DQPSK, FHSS, GFSK |
| Family | RF Transceiver Modules |
| Frequency | 2.4GHz |
| Protocol | Bluetooth v4.0 Dual Mode |
| ECCN | 5A992.c |
