| 80716300000 | ||
|---|---|---|
|
|
||
|
||

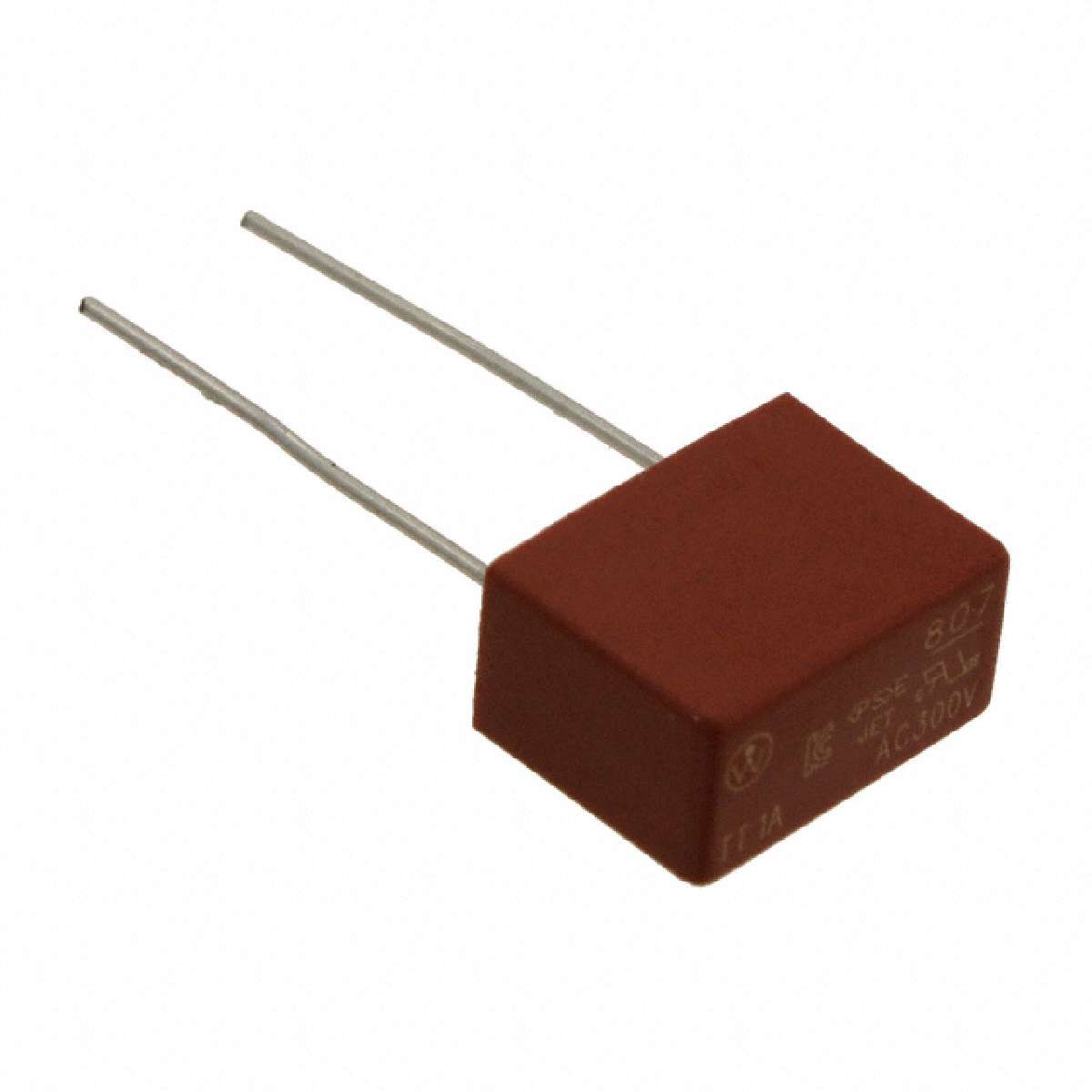

| Product description : 807 Series Time Lag 300 V 6.3 A 12.4 x 6.4 mm Radial Subminiature Fuse | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Package / Case | Radial, Box |
|---|---|
| Approvals | cULus, KC, PSE/JET |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Response Time | Slow |
| Series | TE7 807 |
| Mounting Type | Through Hole |
| Melting I²t | 1063.2 |
| Packaging | Tape & Box (TB) |
| RoHS | Lead free / RoHS Compliant |
| Voltage Rating - AC | 300V |
| Size / Dimension | 0.488" L x 0.252" W x 0.362" H (12.40mm x 6.40mm x 9.20mm) |
| DC Cold Resistance | 0.01 Ohm |
| Online Catalog | 807 Series |
| Family | Fuses |
| Operating Temperature | -40°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 100A |
| Current Rating | 6.3A |
| ECCN | EAR99 |
