| 400KXW56MEFC12.5X35 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

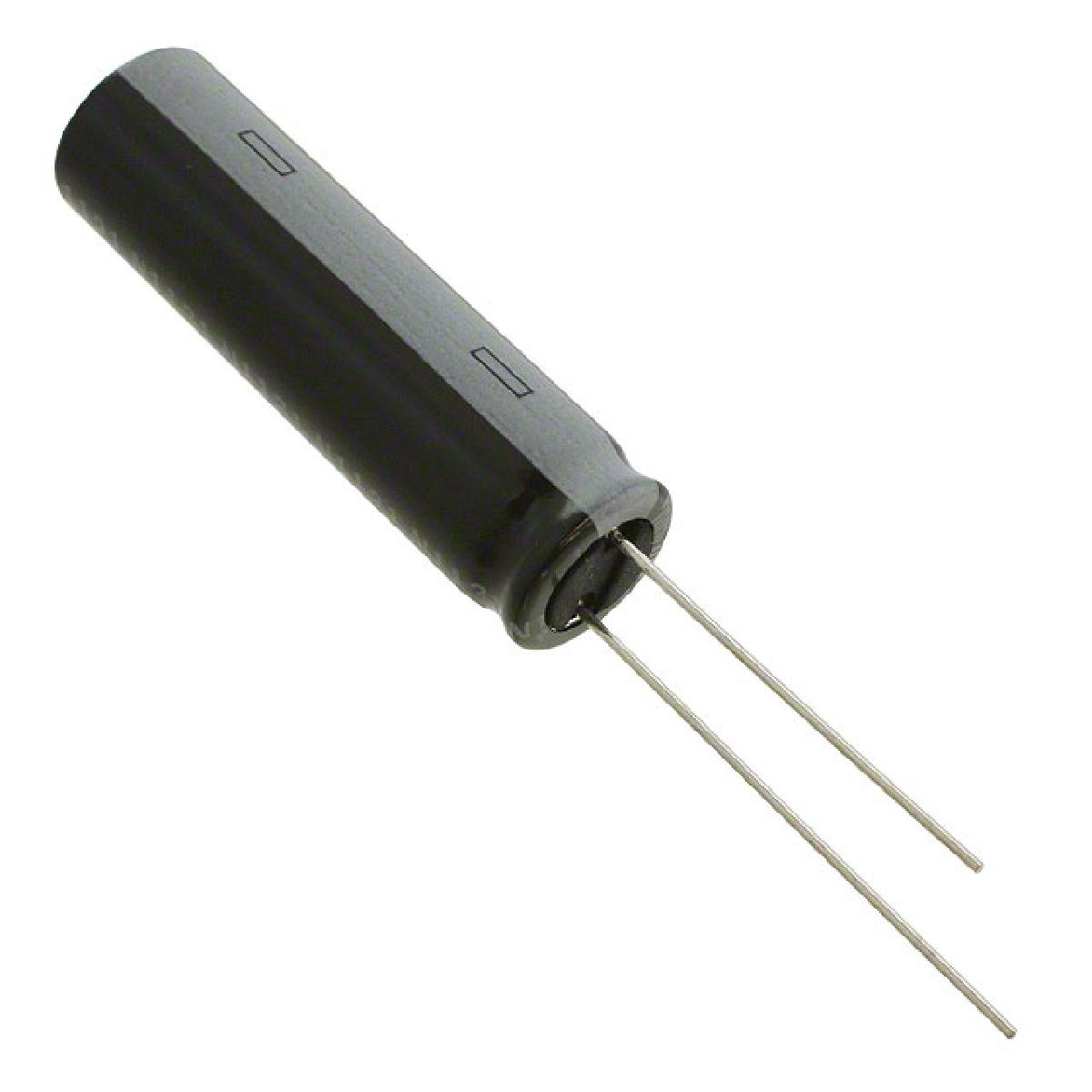

CAP ALUM 56UF 20% 400V RADIAL
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 400V |
|---|---|
| Package / Case | Radial, Can |
| Capacitance | 56µF |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Ripple Current | 420mA |
| Series | KXW |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Tolerance | ±20% |
| Lead Spacing | 0.197" (5.00mm) |
| Standard Package | 500 |
| Packaging | Bulk |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 105°C |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
