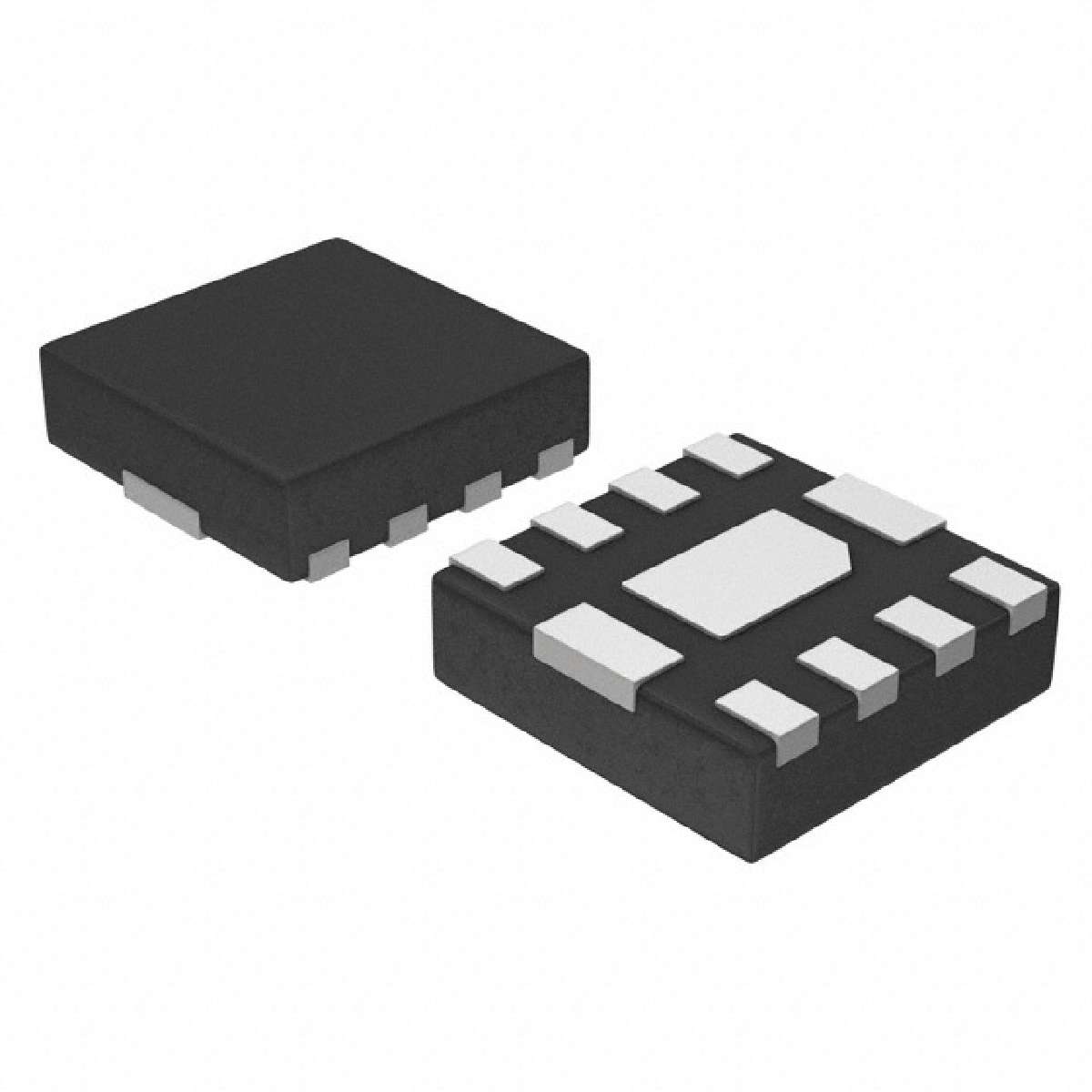

| NCS2220AMUT1G | ||
|---|---|---|
|
|
||
|
||
| Product description : NCS2220A Series 6 V 1 pA Surface Mount Low Voltage Comparator - UDFN-8 | ||
| SPQ：3000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Width: | 1.6 mm |
|---|---|
| Product: | Analog Comparators |
| Packaging: | Reel |
| Minimum Operating Temperature: | - 40 C |
| Supply Voltage - Min: | 850 mV |
| Ib - Input Bias Current: | 1 pA |
| Supply Voltage - Max: | 6 V |
| Unit Weight: | 0.000335 oz |
| Shutdown: | No Shutdown |
| Supply Type: | Single |
| Response Time: | 500 ns |
| Manufacturer: | ON Semiconductor |
| Operating Supply Voltage: | 6 V |
| Factory Pack Quantity: | 3000 |
| Reference Voltage: | No |
| Operating Supply Current: | 17 uA |
| Type: | Voltage Comparator |
| Maximum Operating Temperature: | + 105 C |
| Comparator Type: | General Purpose |
| PSRR - Power Supply Rejection Ratio: | 45 dB |
| CMRR - Common Mode Rejection Ratio: | 53 dB |
| Technology: | CMOS |
| Package / Case: | UDFN-8 |
| Height: | 0.5 mm |
| Vos - Input Offset Voltage: | 10 mV |
| Mounting Style: | SMD/SMT |
| Number of Channels: | 2 Channel |
| Output Current per Channel: | 60 mA |
| Length: | 1.6 mm |
| Output Type: | Complementary |
| Series: | NCS2220 |
| Brand: | ON Semiconductor |
| RoHS: | Details |
| Product Category: | Analog Comparators |
| Vcm - Common Mode Voltage: | - 10 mV to 10 mV |
| ECCN | EAR99 |
