| 35SEV33M6.3X5.5 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

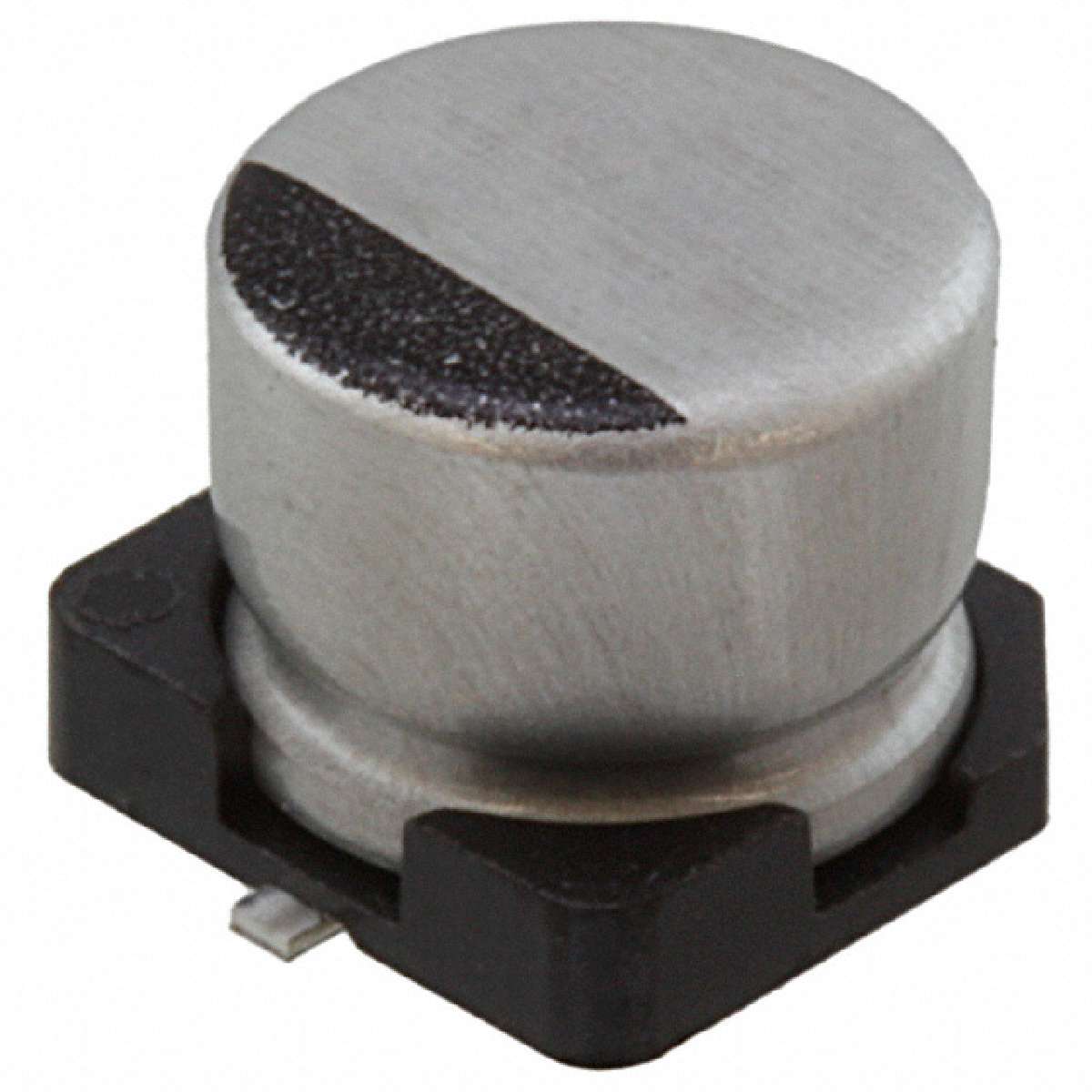

SEV Series 33 uF 35 V ± 20 % Surface Mount Aluminum Electrolytic Capacitor
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 35V |
|---|---|
| Package / Case | Radial, Can - SMD |
| Standard Package | 1,000 |
| Packaging | Tape & Reel (TR) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Series | SEV |
| Applications | Automotive |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| ECCN | EAR99 |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Part Status | Active |
| Tolerance | ±20% |
| Capacitance | 33µF |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Ripple Current | 58mA |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Part Status | Active |
