| 3403.0174.24 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

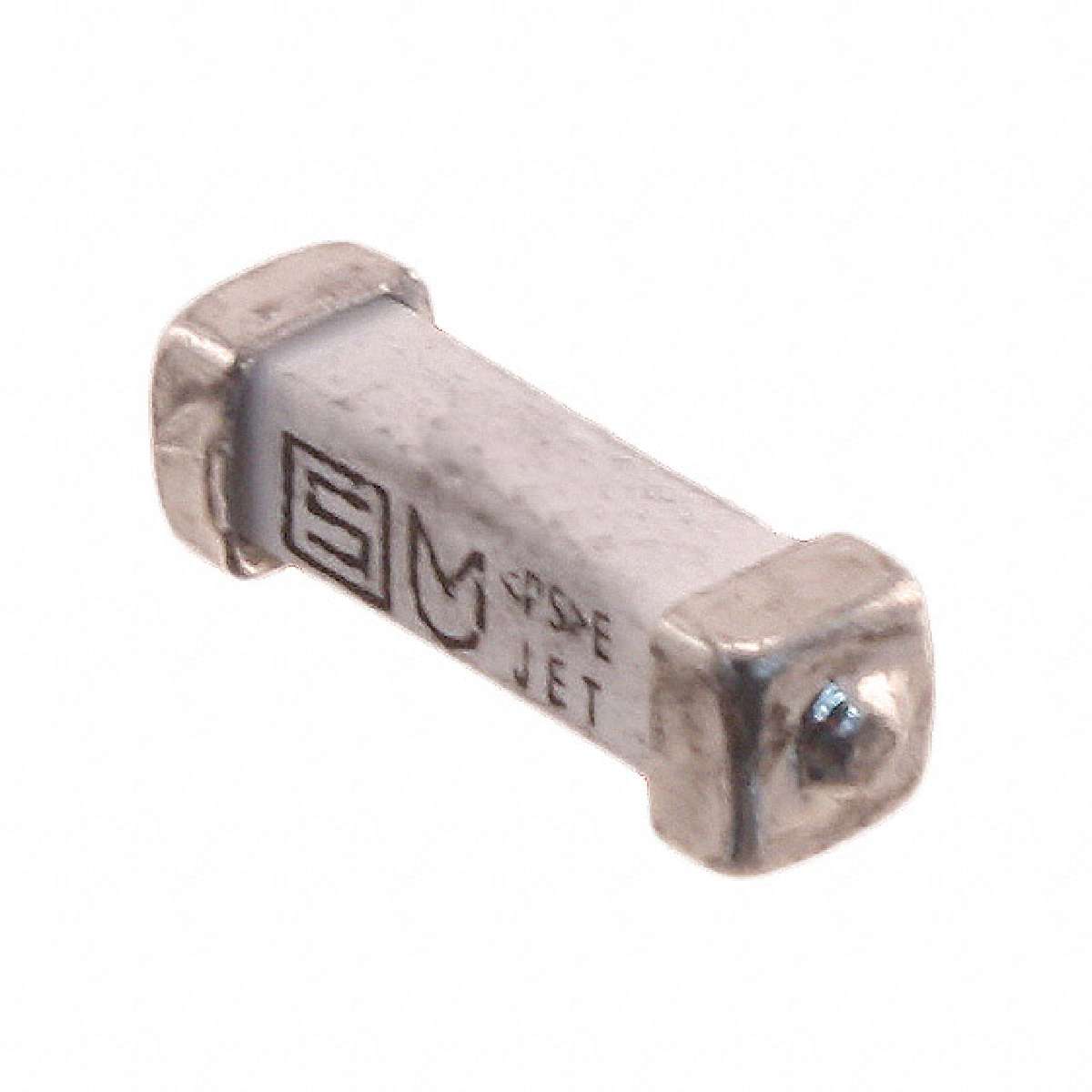

UMT250 Series Time Lag 250 VAC 6.3 A 10.1 x 3 mm SMT Non Resettable Fuse
|
||
| 标准包装：2000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 2-SMD, Square End Block |
|---|---|
| Voltage Rating - AC | 250V |
| Approvals | CQC, cULus, KC, VDE |
| Packaging | Tape & Reel (TR) |
| Response Time | Slow |
| Family | Fuses |
| RoHS Information | RoHS, Fuse Products |
| Operating Temperature | -55°C ~ 125°C |
| Current Rating | 6.3A |
| Standard Package | 2,000 |
| Voltage Rating - DC | 125V |
| Size / Dimension | 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Series | UMT 250 |
| Mounting Type | Surface Mount |
| Melting I²t | 66 |
| Breaking Capacity @ Rated Voltage | 100A AC, 35A DC |
| ECCN | EAR99 |
