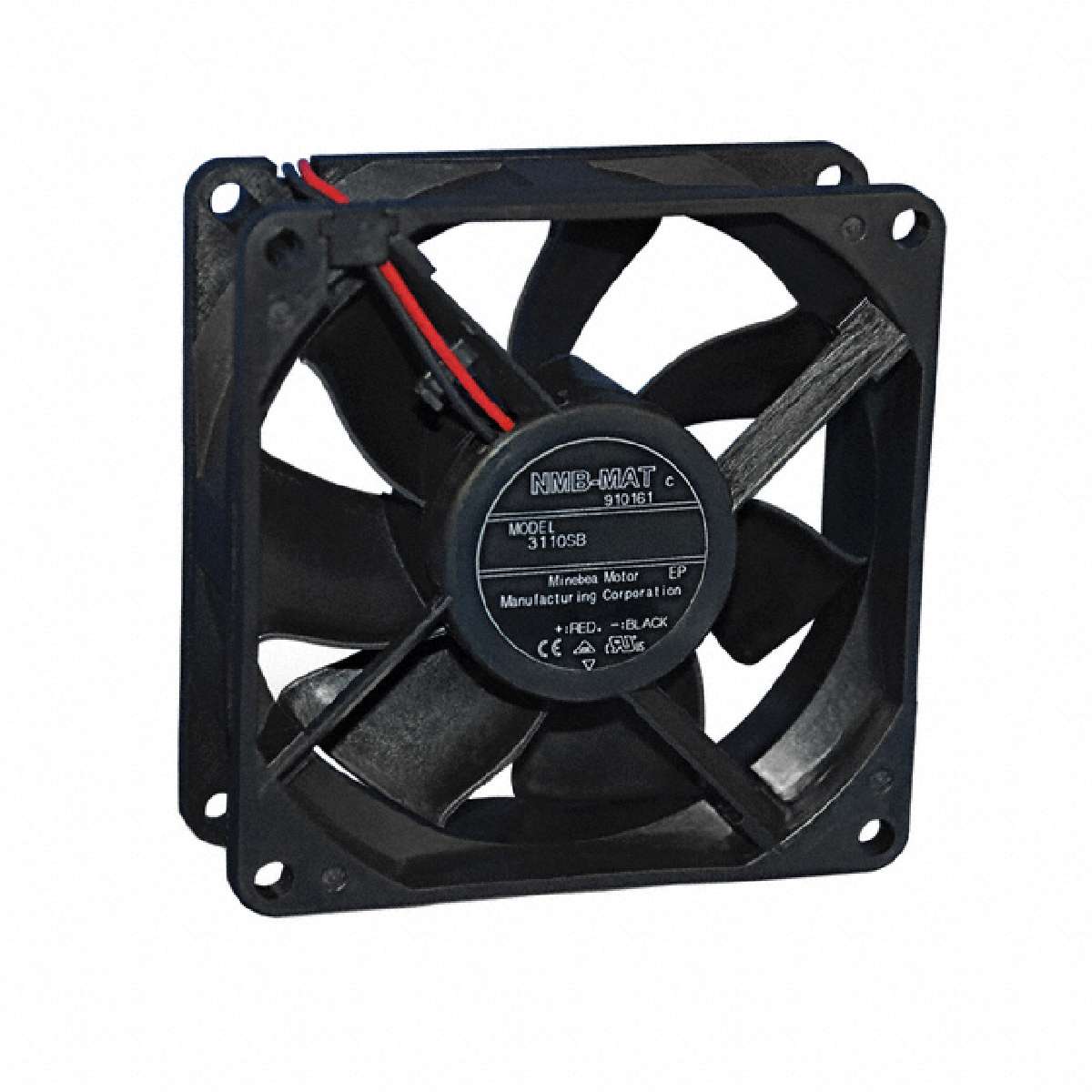

| 3110SB-05W-B59-E00 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
80x25mm, 12VDC, 38.8CFM, 3250RPM, 34.0dB, Ball Bearing, Flange Mount
|
||
| 标准包装：80 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product Training Modules | Computer Cooling in System Design Thermal Simulation in Telecom Applications |
|---|---|
| Other Related Documents | Fan Agency Approvals |
| Air Flow | 41.3 CFM (1.17m鲁/min) |
| PCN Part Number | Fan Motor Numbering System 13/Dec/2013 |
| Power (Watts) | 1.92W |
| Fan Type | Tubeaxial |
| Static Pressure | 0.150 in H2O (37.4 Pa) |
| Standard Package | 80 |
| Voltage Range | 12 ~ 27.6VDC |
| Noise | 30 dB(A) |
| Family | DC Fans |
| Operating Temperature | 14 ~ 158掳F (-10 ~ 70掳C) |
| ECCN | EAR99 |
| Size / Dimension | Square - 80mm L x 80mm H x 25mm W |
| Material - Frame | Plastic |
| Weight | 0.176 lb (79.83g) |
| Life Expectancy | 100000 hrs @ 25掳C |
| Bearing Type | Ball |
| Termination | 3 Wire Leads |
| Material - Blade | Plastic |
| Features | Locked Rotor Sensor |
| Voltage - Rated | 24VDC |
| Series | 3110SB |
| RPM | 3100 RPM |
| Current Rating | 0.080A |
