| 30R700UF | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

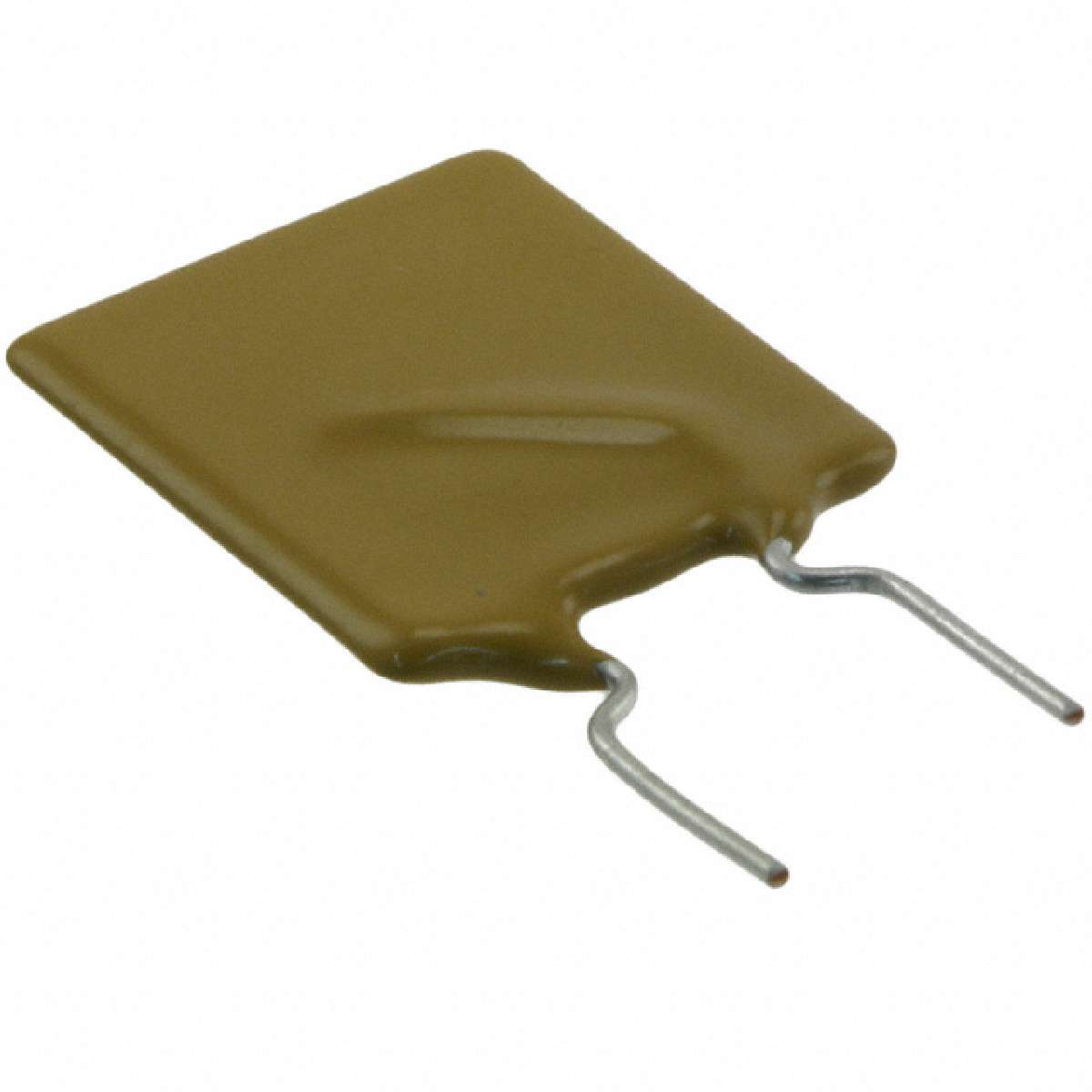

Fuse: PTC polymer; 7A; 30R
|
||
| 标准包装：5 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Width: | 19.1 mm |
|---|---|
| Maximum Voltage: | 30 VDC |
| Manufacturer: | Littelfuse |
| Series: | 30R |
| Factory Pack Quantity: | 200 |
| RoHS: | Details |
| Product Category: | Resettable Fuses - PPTC |
| Hold Current: | 7 A |
| Mounting Style: | Through Hole |
| Packaging: | Bulk |
| Trip Current: | 14 A |
| Resistance: | 0.03 Ohms |
| Operating Temperature Range: | - 40 C to + 85 C |
| Brand: | Littelfuse |
| Termination Style: | Radial |
| Current Rating - Max: | 40 A |
| Type: | PolyFuse Resettable PTC |
| ECCN | EAR99 |
