| 299-83-316-11-001101 | ||
|---|---|---|
|
|
||
|
||

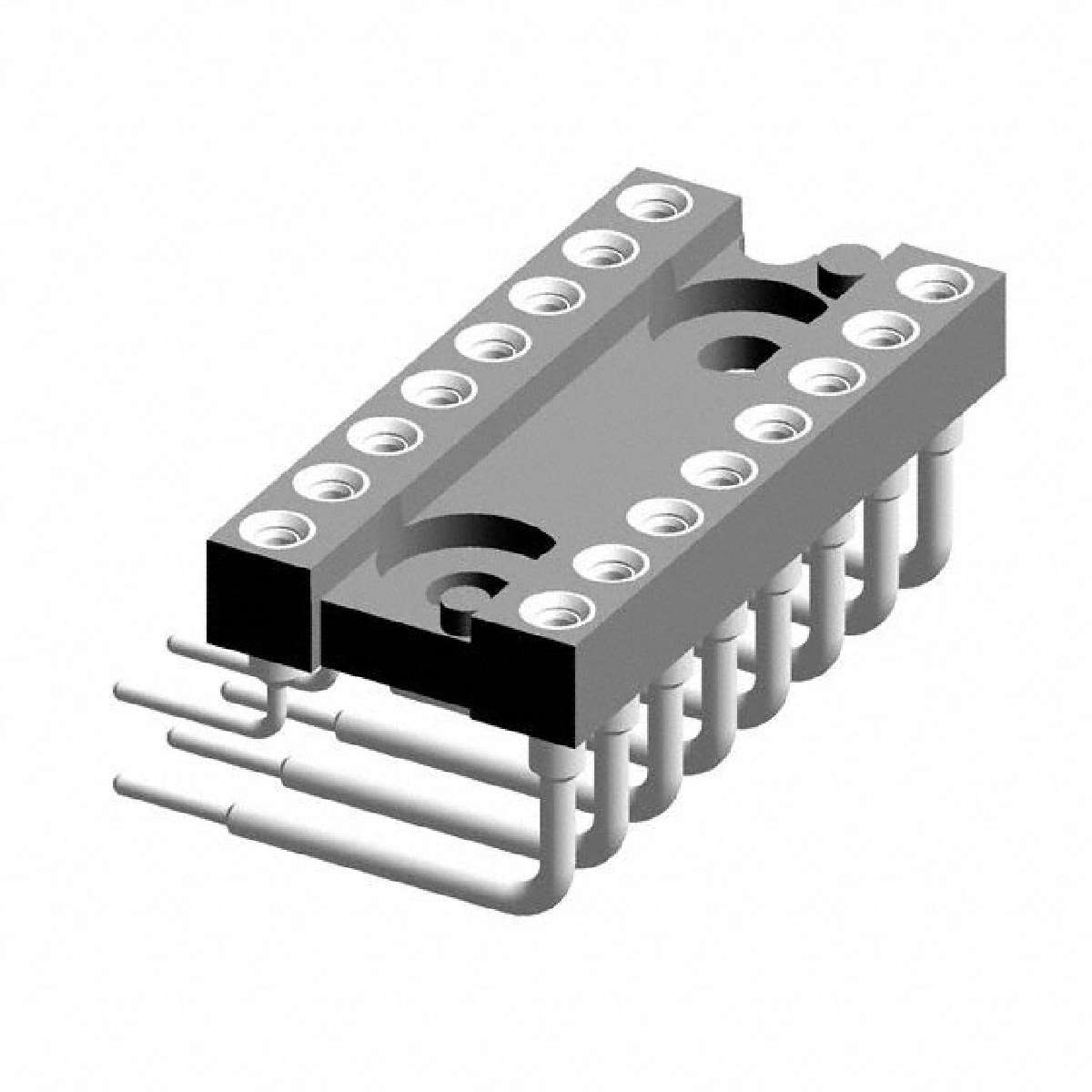

| Product description : CONN IC DIP SOCKET 16POS GOLD | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Pitch - Post | 0.100" (2.54mm) |
|---|---|
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole, Right Angle, Horizontal |
| Termination | Solder |
| Contact Finish - Post | Tin |
| Packaging | Tube |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Family | Sockets for ICs, Transistors |
| RoHS Information | RoHS Declaration |
| Current Rating | 1A |
| Termination Post Length | 0.128" (3.24mm) |
| Number of Positions or Pins (Grid) | 16 (2 x 8) |
| Contact Material - Post | Brass |
| Pitch - Mating | 0.100" (2.54mm) |
| Material Flammability Rating | UL94 V-0 |
| Standard Package | 156 |
| Features | Closed Frame |
| Contact Finish - Mating | Gold |
| Series | 299 |
| Contact Resistance | 10 mOhm |
| Operating Temperature | -55°C ~ 125°C |
