| 27630302RP2 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

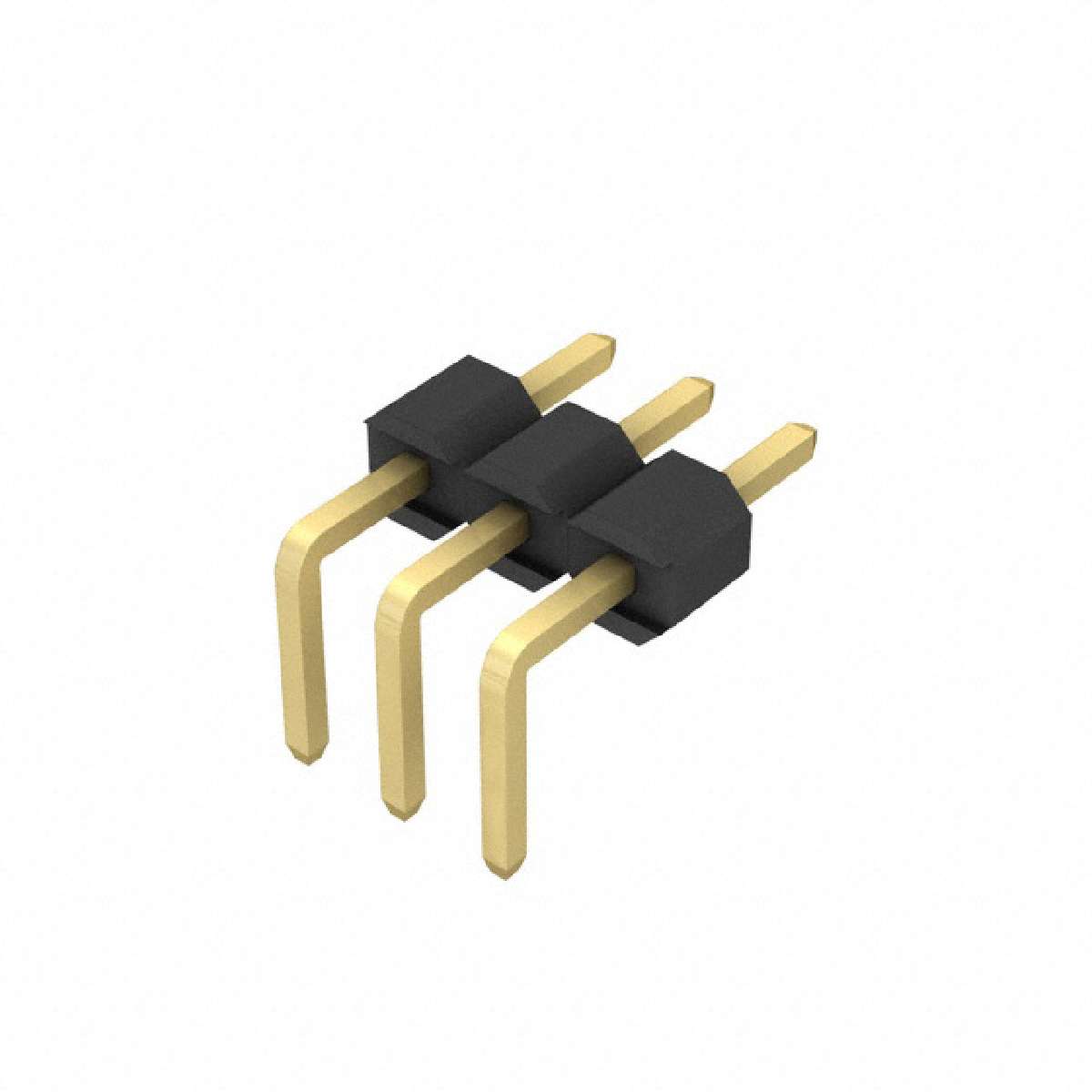

3 Position 2mm Pitch Right Angle Non-Shrouded Header
|
||
| 标准包装：100 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Contact Finish | Gold |
|---|---|
| Other Related Documents | 27630302RP2 Material Declaration |
| Contact Finish Thickness | Flash |
| Contact Type | Male Pin |
| Alternate Length | 2763R-34-ND - CONN HDR 2MM MALE 1ROW RA 34POS 2763R-33-ND - CONN HDR 2MM MALE 1ROW RA 33POS 2763R-32-ND - CONN HDR 2MM MALE 1ROW RA 32POS 2763R-31-ND - CONN HDR 2MM MALE 1ROW RA 31POS 2763R-30-ND - CONN HDR 2MM MALE 1ROW RA 30POS 2763R-29-ND - CONN HDR 2 |
| Color | Black |
| Online Catalog | 2763 and 2764 Series |
| Number of Positions | 3 |
| Contact Mating Length | 0.150" (3.81mm) |
| Number of Rows | 1 |
| ECCN | EAR99 |
| Number of Positions Loaded | All |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Catalog Drawings | 2763 Series Side 2763 Series Footprint 2763 Series Top 2763 Series Front |
| Standard Package | 1 |
| Packaging | Bulk |
| Series | 2763 |
| Family | Rectangular Connectors - Headers, Male Pins |
| Connector Type | Header, Unshrouded |
| Pitch | 0.079" (2.00mm) |
