| KLDR.100TXP | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

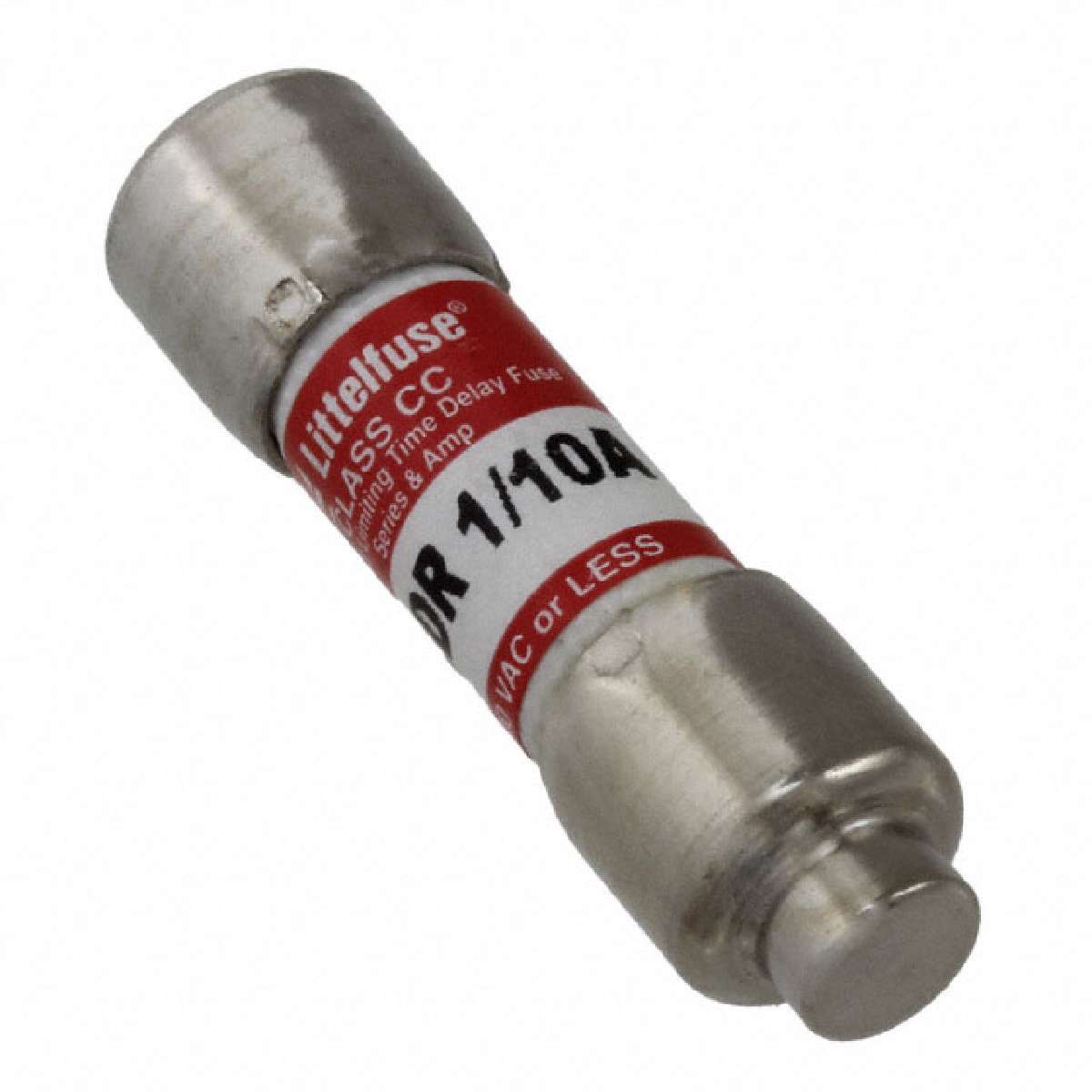

KLDR Series Time Delay 300V 0.1 A Ø 10.3 x 38.1 mm Class CC POWR-GARD® Fuse
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 5AG, 10mm x 38.1mm |
|---|---|
| Voltage Rating - DC | 300V |
| Size / Dimension | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) |
| Fuse Type | Cartridge |
| Category | Circuit Protection |
| Class | CC |
| Family | Electrical, Specialty Fuses |
| Applications | Transformer Protection |
| Packaging | Bulk |
| ECCN | EAR99 |
| Voltage Rating - AC | 600V |
| Approvals | CE, CSA, UL |
| Part Status | Active |
| Response Time | Slow |
| Manufacturer | Littelfuse Inc. |
| Series | POWR-GARD® KLDR |
| Mounting Type | Holder |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC |
| Current Rating | 100mA |
