| 24-650000-11-RC | ||
|---|---|---|
|
|
||
|
||

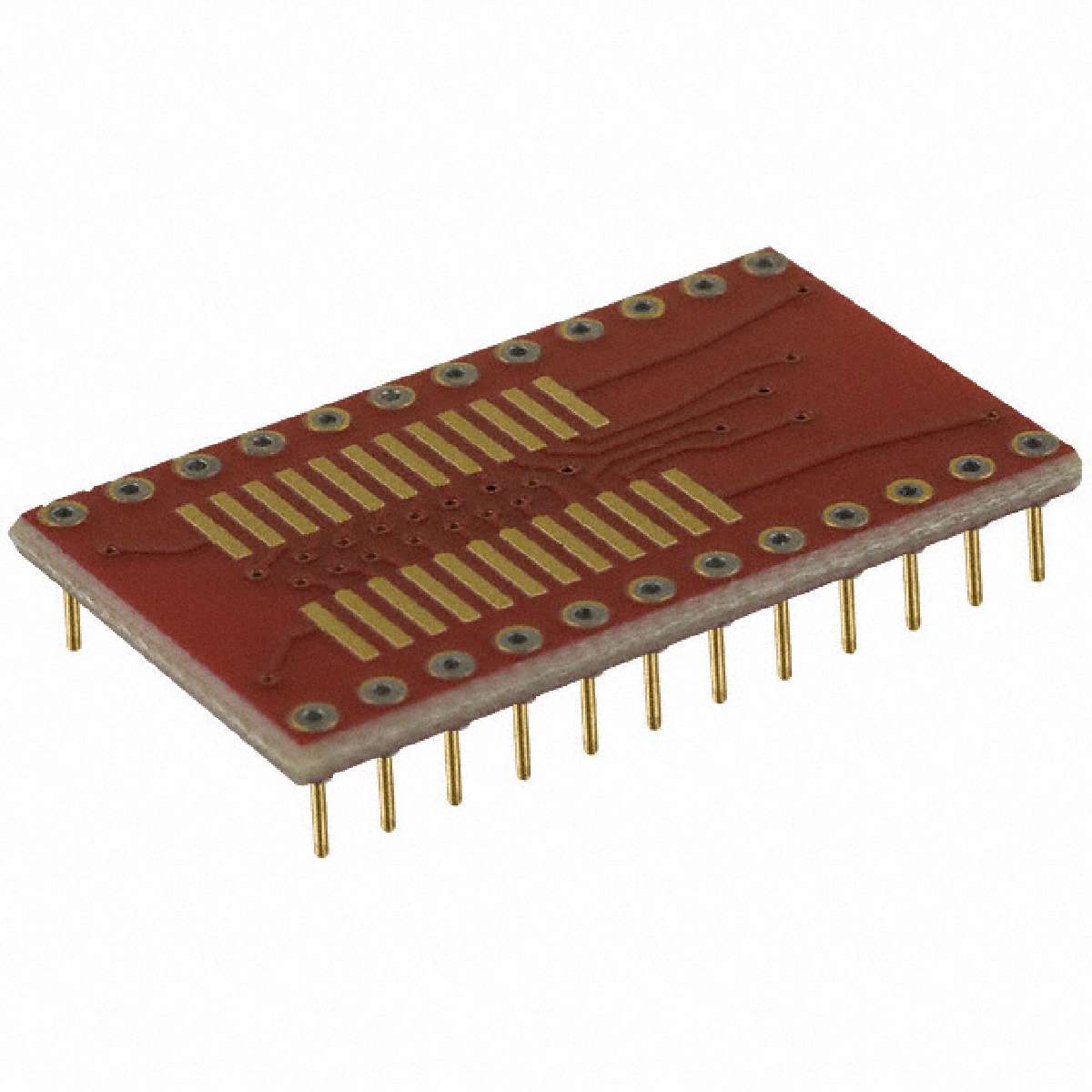

| Product description : 65000 Series 24 Pin SOIC/SOJ to Dip Adapter | ||
| SPQ：20 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Pitch - Post | 0.100" (2.54mm) |
|---|---|
| Contact Finish Thickness - Post | 10µin (0.25µm) |
| Number of Pins | 24 |
| Pitch - Mating | 0.050" (1.27mm) |
| Termination | Solder |
| Convert To (Adapter End) | DIP, 0.6" (15.24mm) Row Spacing |
| Contact Finish - Post | Gold |
| Series | Correct-A-Chip® 650000 |
| Convert From (Adapter End) | SOIC |
| ECCN | EAR99 |
| Termination Post Length | 0.125" (3.18mm) |
| Other Related Documents | Custom Correct-A-Chip® Adapters |
| Contact Material - Post | Brass |
| Mounting Type | Through Hole |
| Catalog Drawings | Dip Adapter Top Dip Adapter End |
| Standard Package | 20 |
| Contact Finish - Mating | Gold |
| Family | Sockets for ICs, Transistors - Adapters |
| Board Material | FR4 Epoxy Glass |
