| 219-4LPSTF | ||
|---|---|---|
|
|
||
|
||

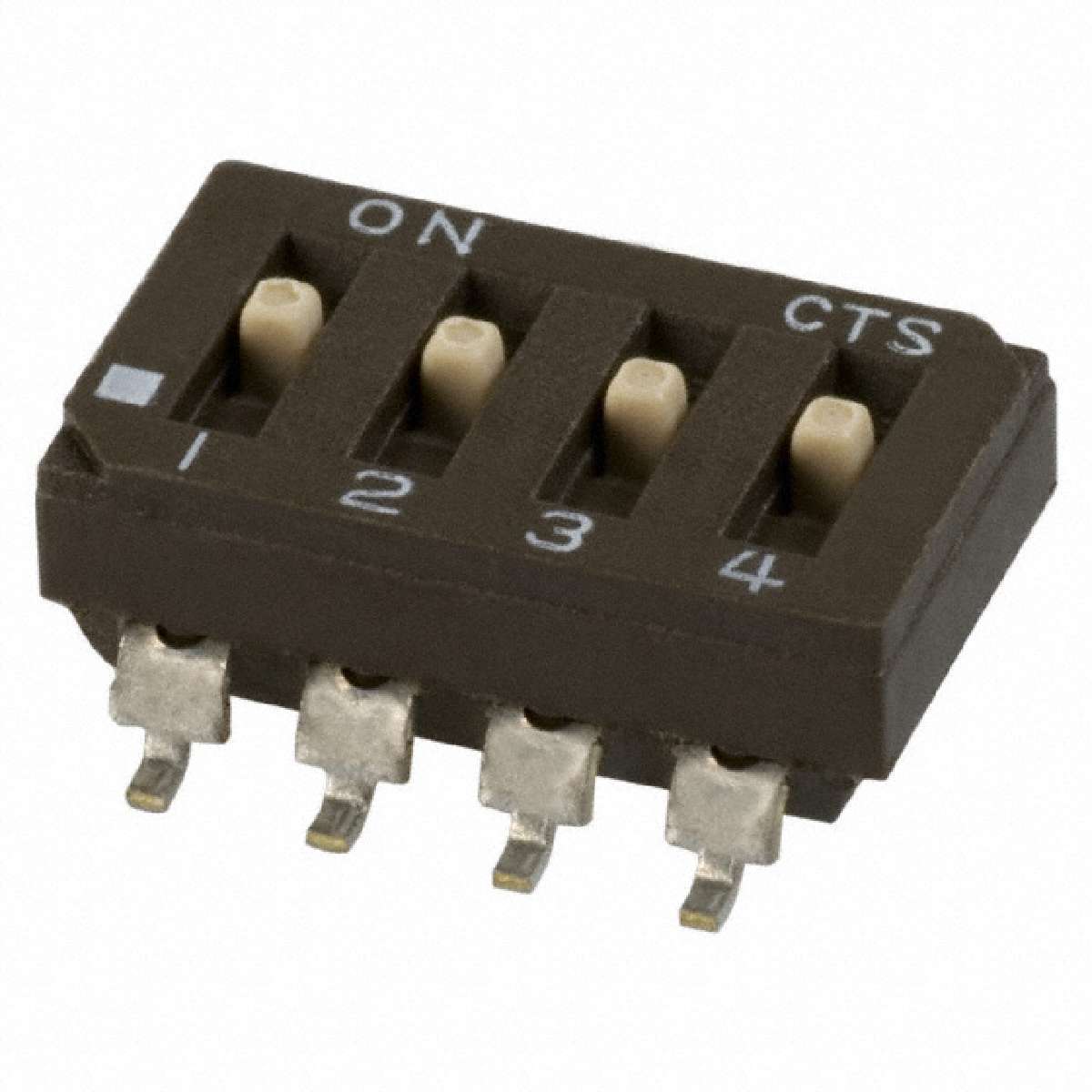

| Product description : 219 Series SPST 4 Position Auto Placeable Surface Mount DIP Switch | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 20VDC |
|---|---|
| Termination Style | Gull Wing |
| Manufacturer | CTS Electrocomponents |
| Mounting Type | Surface Mount |
| Height Above Board | 0.160" (4.06mm) |
| Actuator Type | Slide (Standard) |
| Part Status | Active |
| Contact Material | Beryllium Copper |
| Length | 0.458" (11.63mm) |
| Series | 219 |
| Operating Temperature | -55°C ~ 85°C |
| Pitch | 0.100" (2.54mm), Full |
| Contact Finish | Gold |
| Electrical Life | 2,000 Cycles |
| Washable | Yes |
| Packaging | Tube |
| Circuit | SPST |
| Features | Epoxy Sealed Terminals, Tape Seal |
| Category | Switches |
| Actuator Level | Flush, Recessed |
| Number of Positions | 4 |
| Family | DIP Switches |
| Current Rating | 100mA |
| ECCN | EAR99 |
