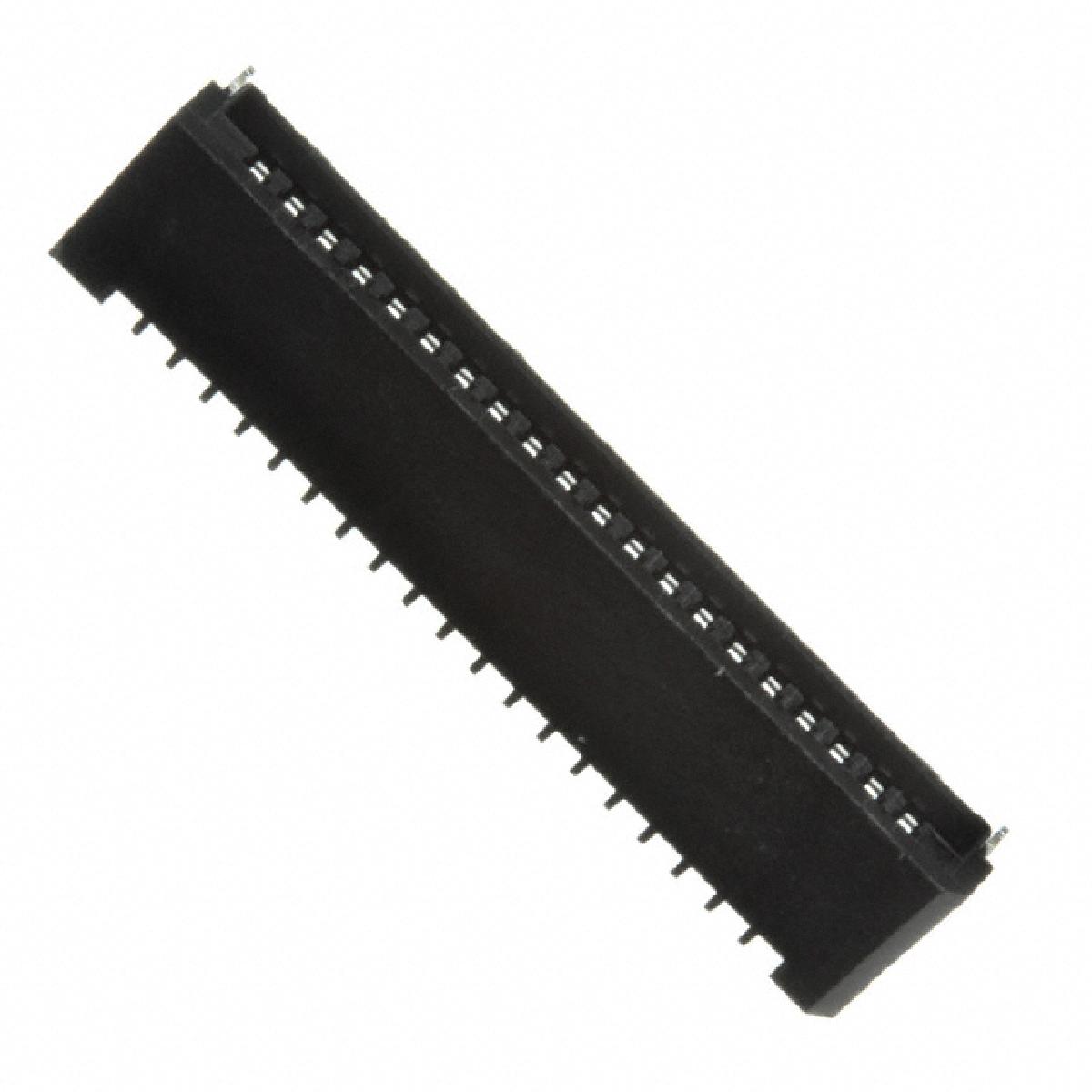

| 20FMN-SMT-A-TF | ||
|---|---|---|
|
|
||
|
||
| Product description : Connector: FFC (FPC); horizontal; PIN: 20; NON-ZIF; SMT; 0.5A; 1mm | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Height Above Board | 0.118" (3.00mm) |
|---|---|
| Voltage Rating | 50V |
| Cable End Type | Straight |
| Standard Package | 2,000 |
| Packaging | Tape & Reel (TR) |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Series | FMN |
| Family | FFC, FPC (Flat Flexible) Connectors |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating | 0.5A |
| Termination | Solder |
| Contact Finish | Tin |
| Flat Flex Type | FFC |
| Features | Low Insertion Force (LIF) |
| FFC, FCB Thickness | 0.30mm |
| Contact Material | Phosphor Bronze |
| Number of Positions | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Pitch | 0.039" (1.00mm) |
