| EEE-FT1V561AP | ||
|---|---|---|
|
|
||
|
||

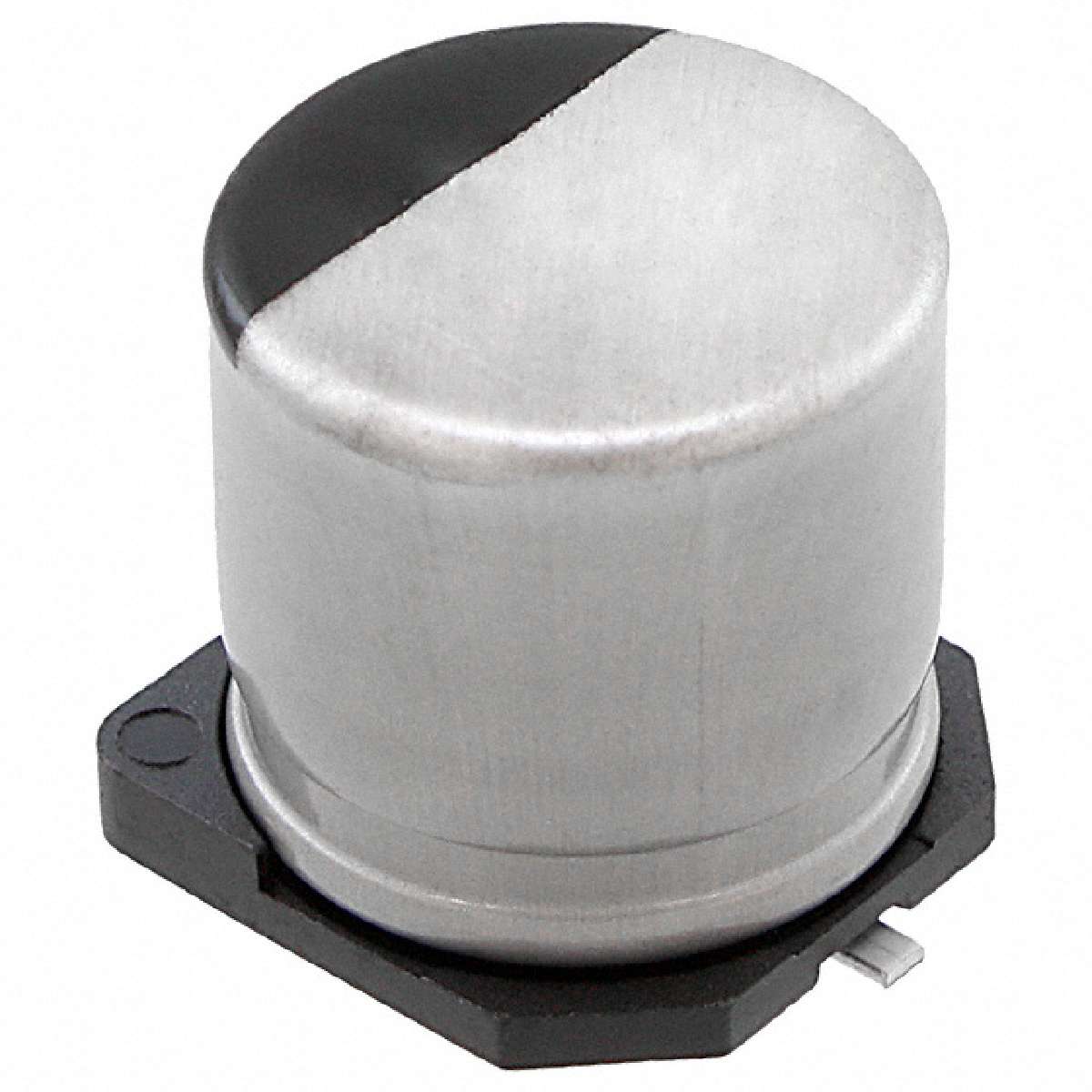

| Product description : FT Series 35 V 560 uF Ø10 x 10.2 mm 105°C SMT Aluminum Electrolytic Capacitor | ||
| SPQ：500 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Package / Case | Radial, Can - SMD |
|---|---|
| Voltage Rating | 35V |
| Polarization | Polar |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Ripple Current | 833mA @ 120Hz |
| Manufacturer | Panasonic Electronic Components |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Capacitance | 560µF |
| ESR (Equivalent Series Resistance) | 60 mOhm @ 100kHz |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Series | FT |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Packaging | Tape & Reel (TR) |
